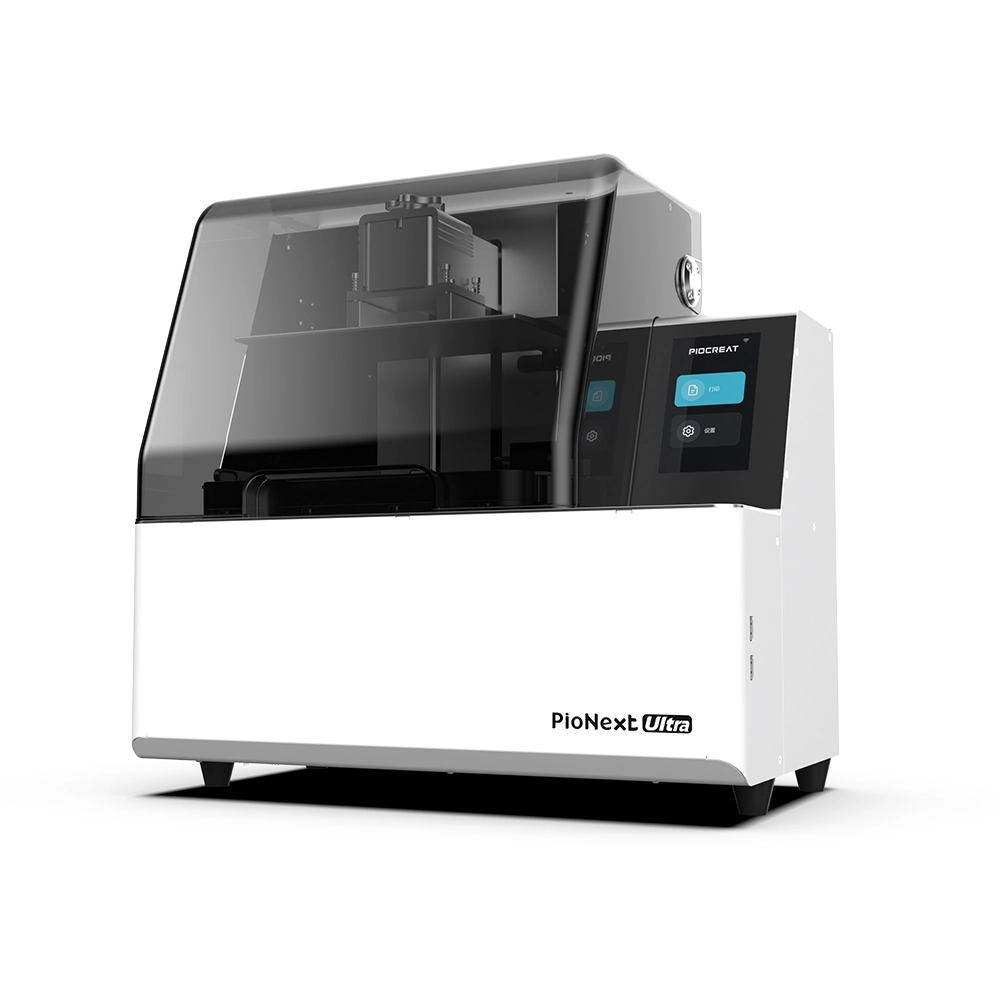

PioNext Ultra

Industrial Printing for Dental Production

Mass Throughput | Supreme Stability | Universal Compatibility

Application

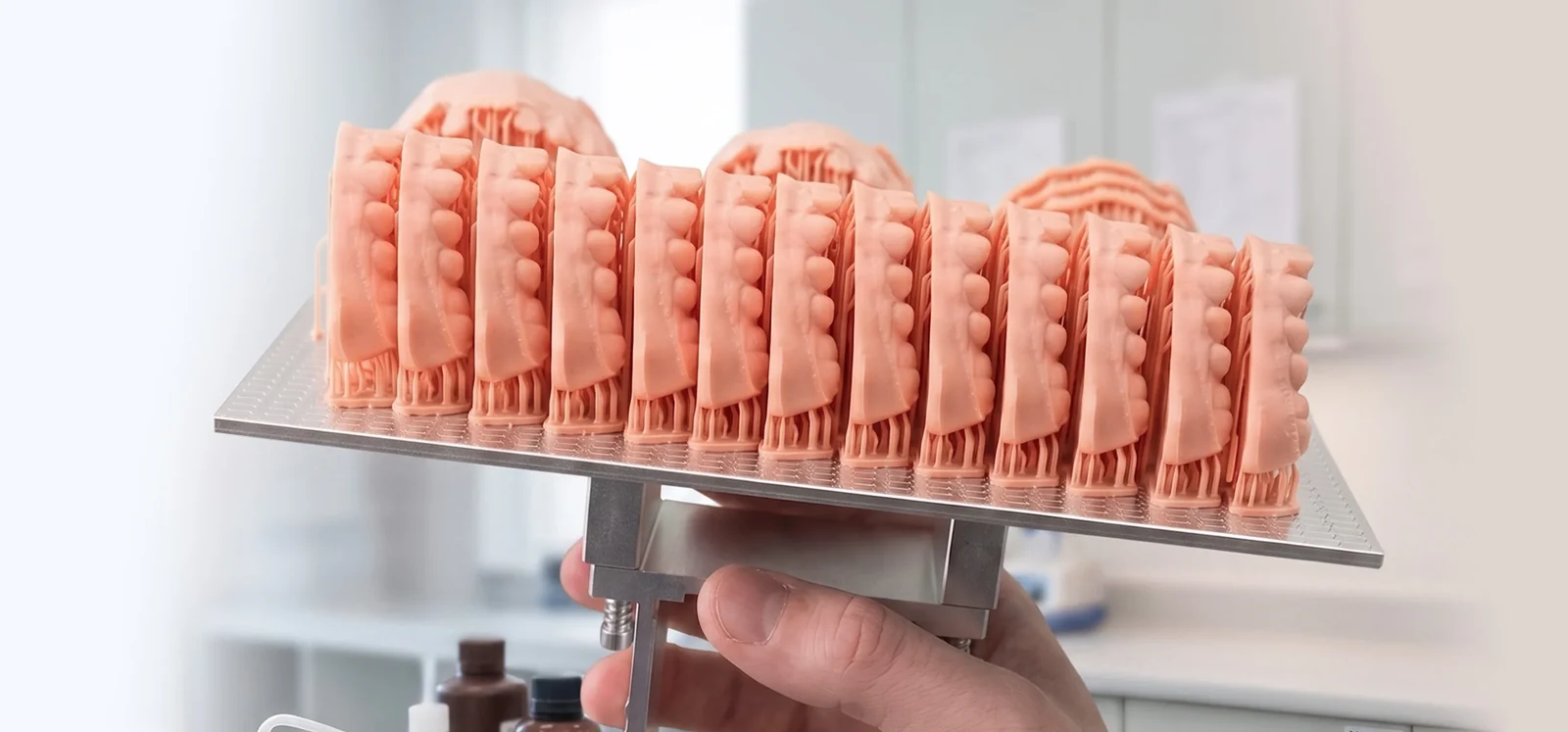

Batch of dental arch models on the PioNext Ultra build platform
Dental technician inspecting a printed dental arch model

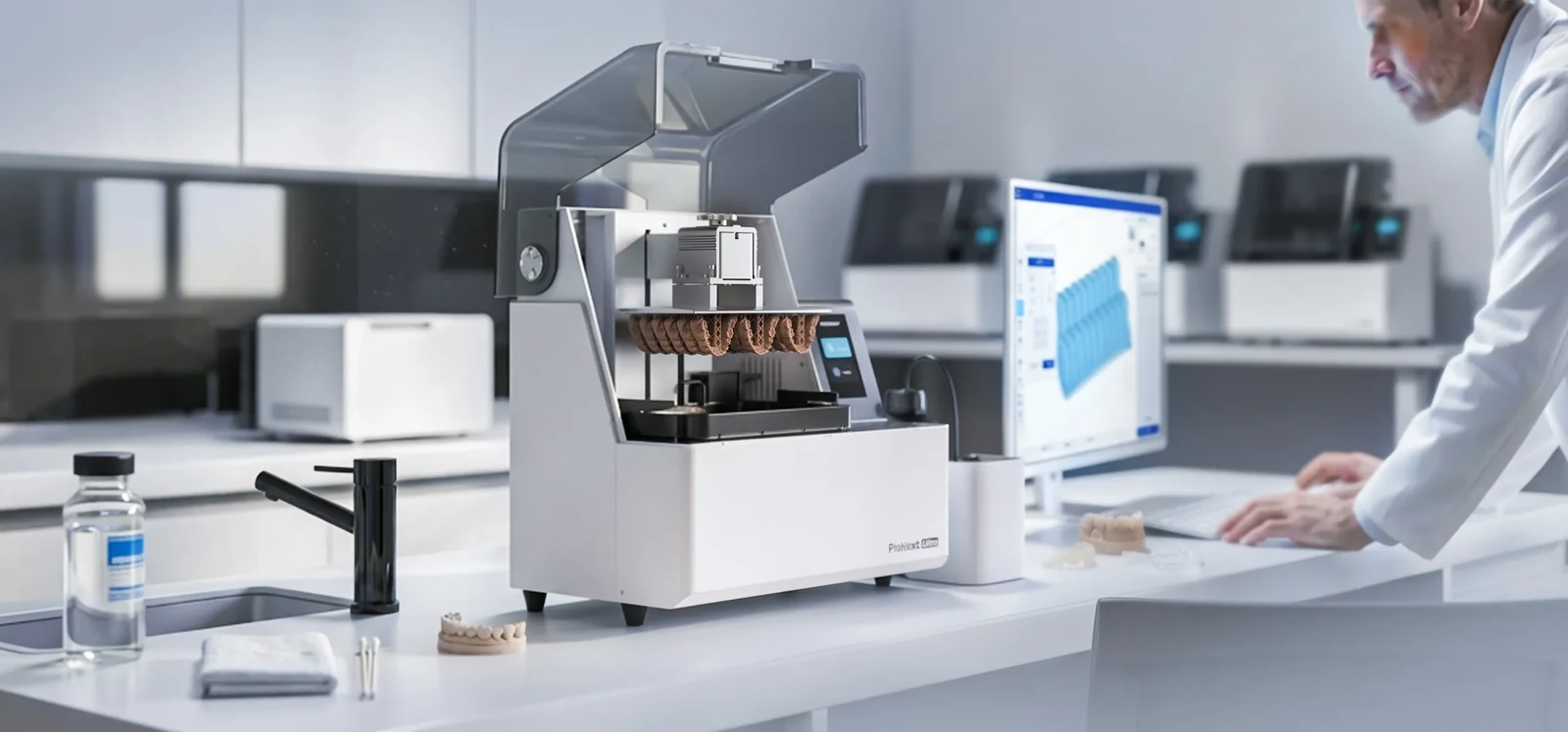

PioNext Ultra with its cover open during dental laboratory production
Batch of dental arch models on the PioNext Ultra build platform
Dental technician inspecting a printed dental arch model
PioNext Ultra with its cover open during dental laboratory production
Batch of dental arch models on the PioNext Ultra build platform
Dental technician inspecting a printed dental arch model
PioNext Ultra with its cover open during dental laboratory production
Batch of dental arch models on the PioNext Ultra build platform
Dental technician inspecting a printed dental arch model
PioNext Ultra with its cover open during dental laboratory production
Batch of dental arch models on the PioNext Ultra build platform
Dental technician inspecting a printed dental arch model
PioNext Ultra with its cover open during dental laboratory production

Highlights

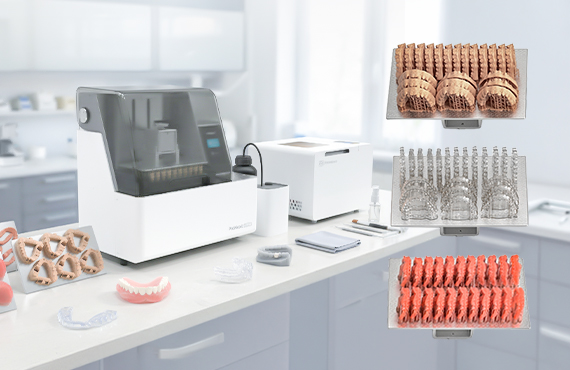

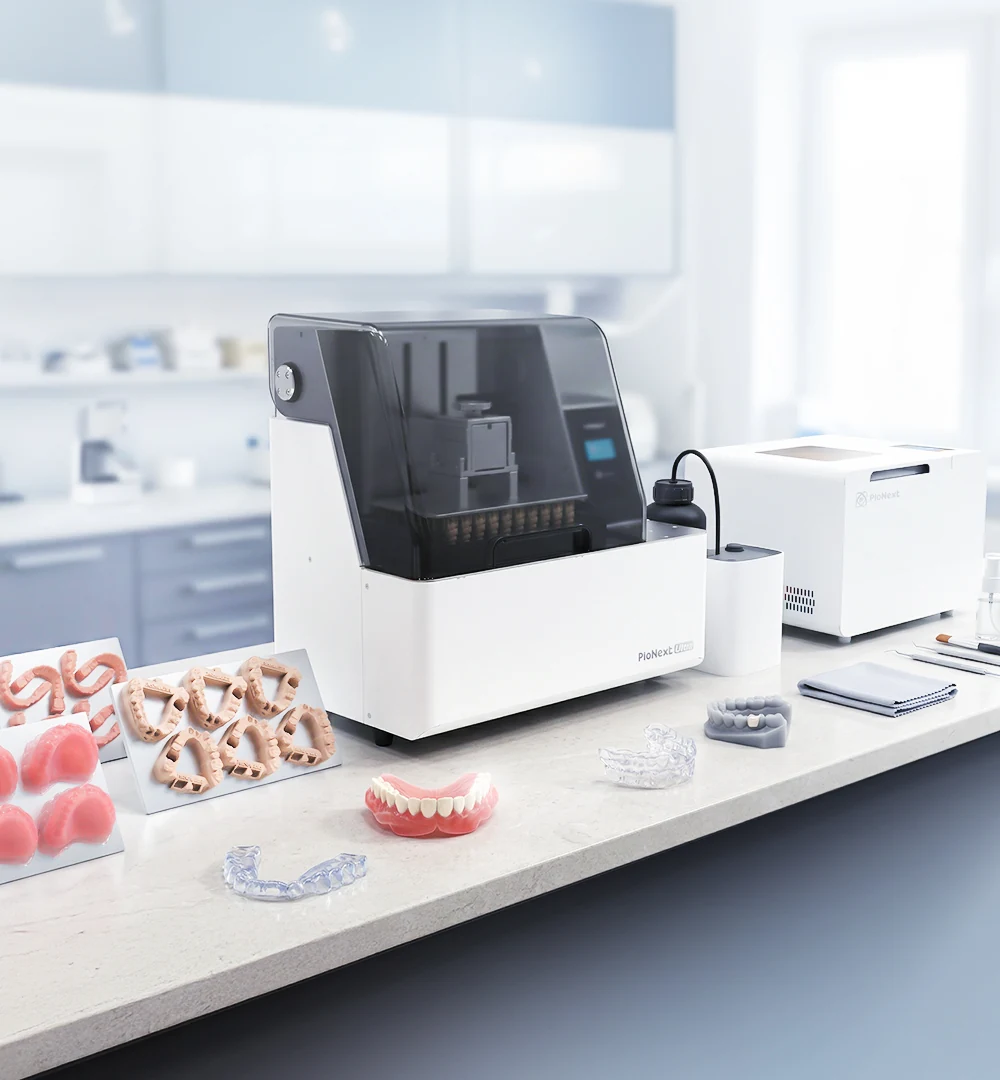

PioNext Ultra and post-processing equipment on a dental laboratory worktop

Batch Printing

Supports efficient multi-model production for streamlined daily workflows.

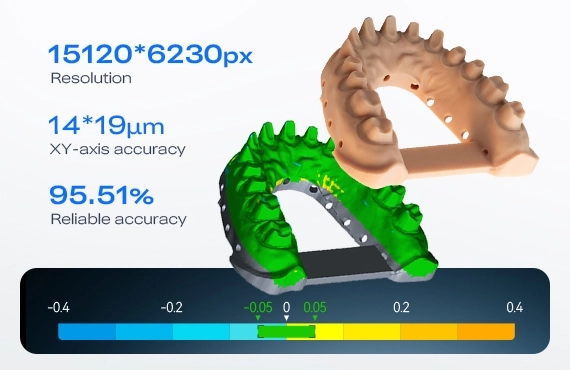

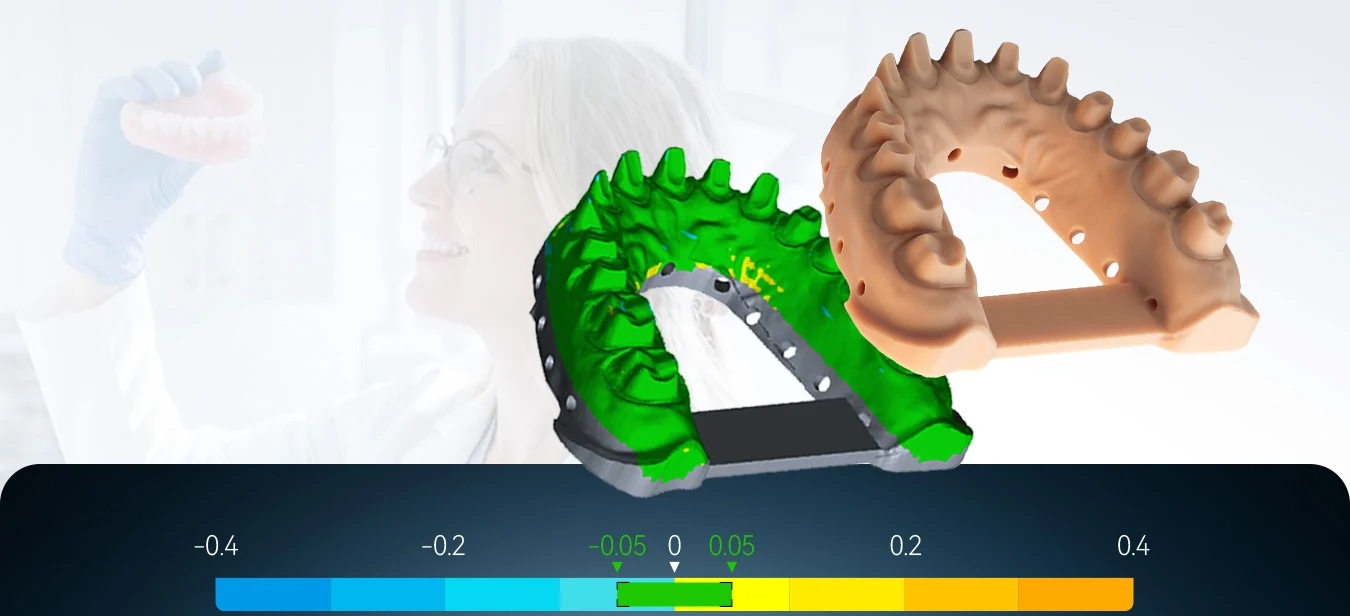

Dental model and color-coded deviation map for PioNext Ultra print accuracy

Reliable Accuracy

Built for accurate, repeatable batch production.

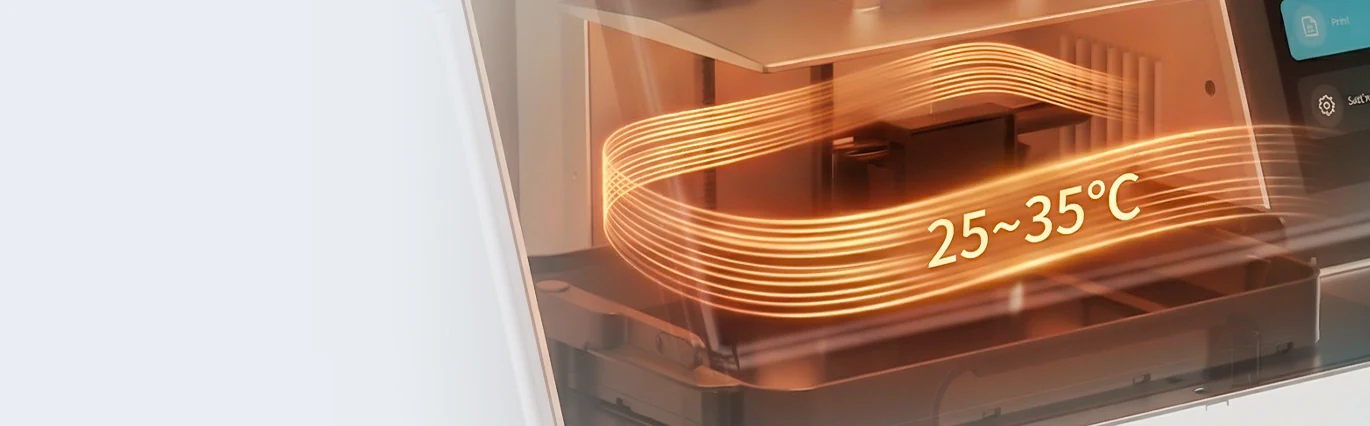

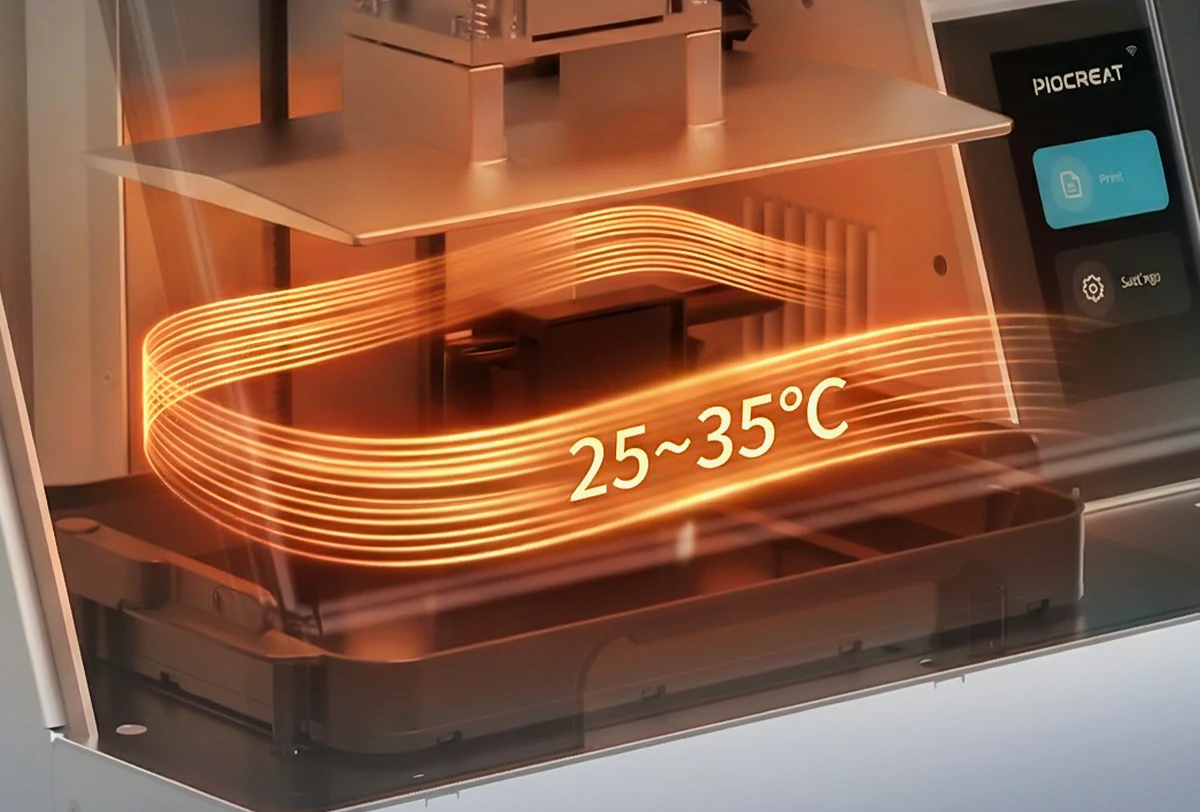

PioNext Ultra heated printing chamber showing a 25 to 35 degree Celsius range

Thermal Stable Chamber

Maintains 25–35°C for consistent, high-quality prints.

BATCH PRINTING

Balancing Efficiency and Precision

Efficiently batch prints orthodontic, restorative, and surgical guide models alongside dentures, maximizing throughput with uncompromising, consistent accuracy.

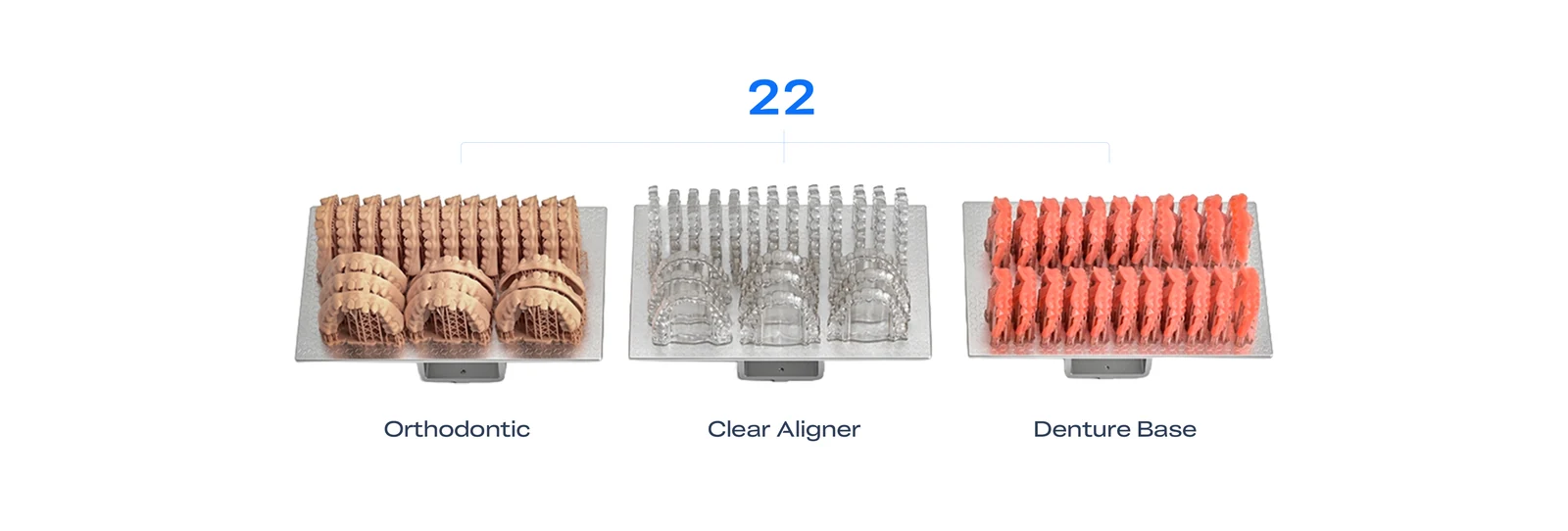

Batch layouts for orthodontic models, clear aligners and denture bases on PioNext Ultra

Stable Light Uniformity

Delivers stable light distribution exceeding 90%, guaranteeing identical, high-precision results across large batch productions.

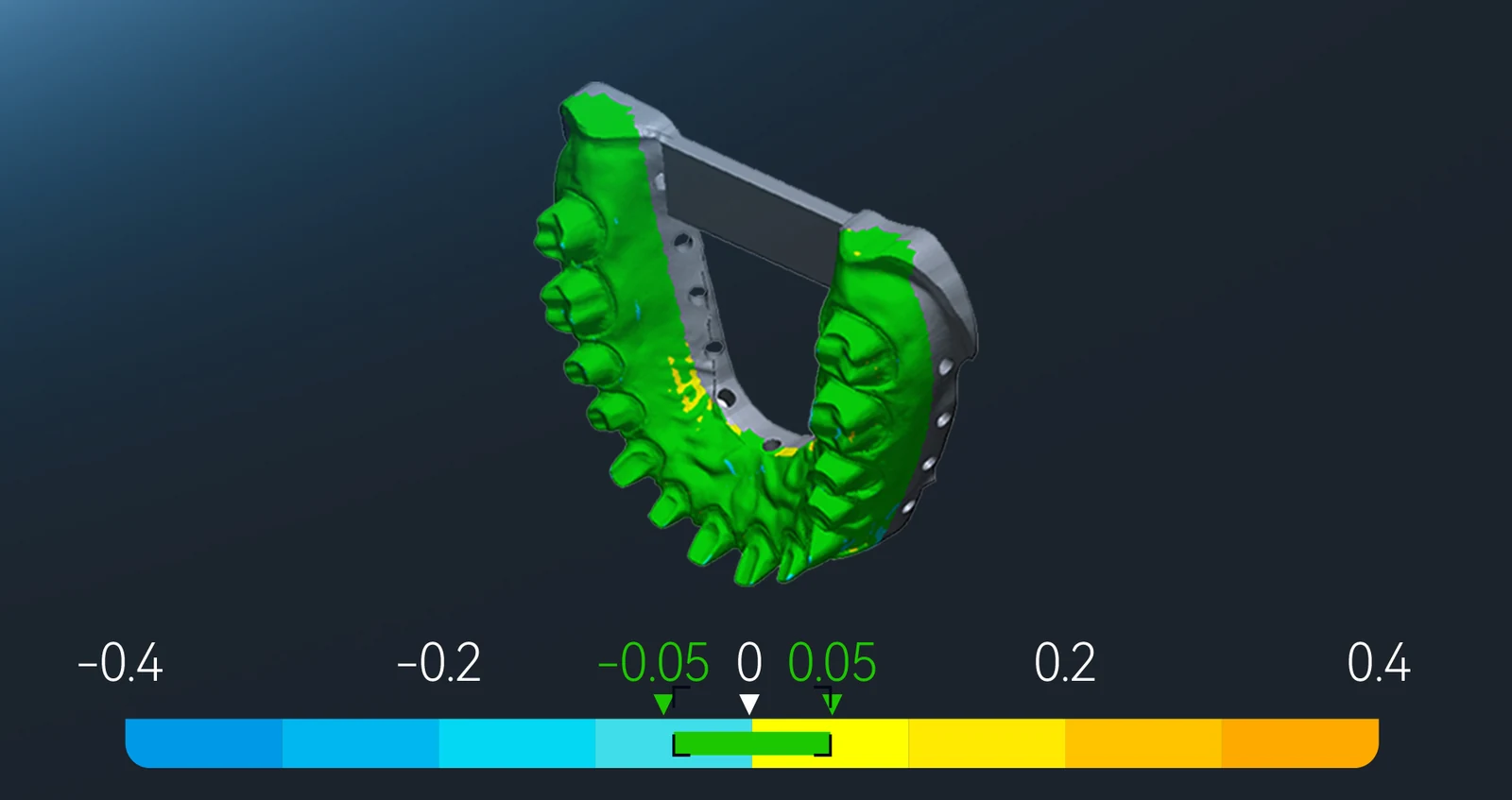

Color-coded dental arch deviation map in the PioNext Ultra accuracy section

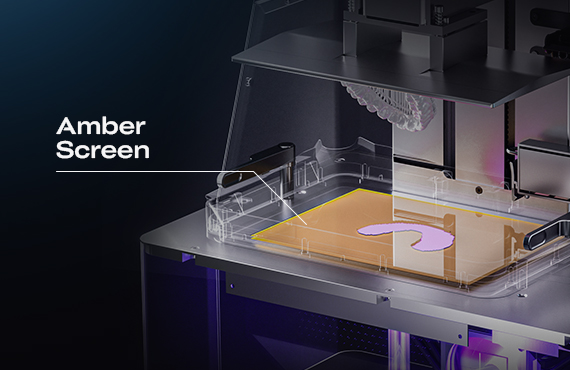

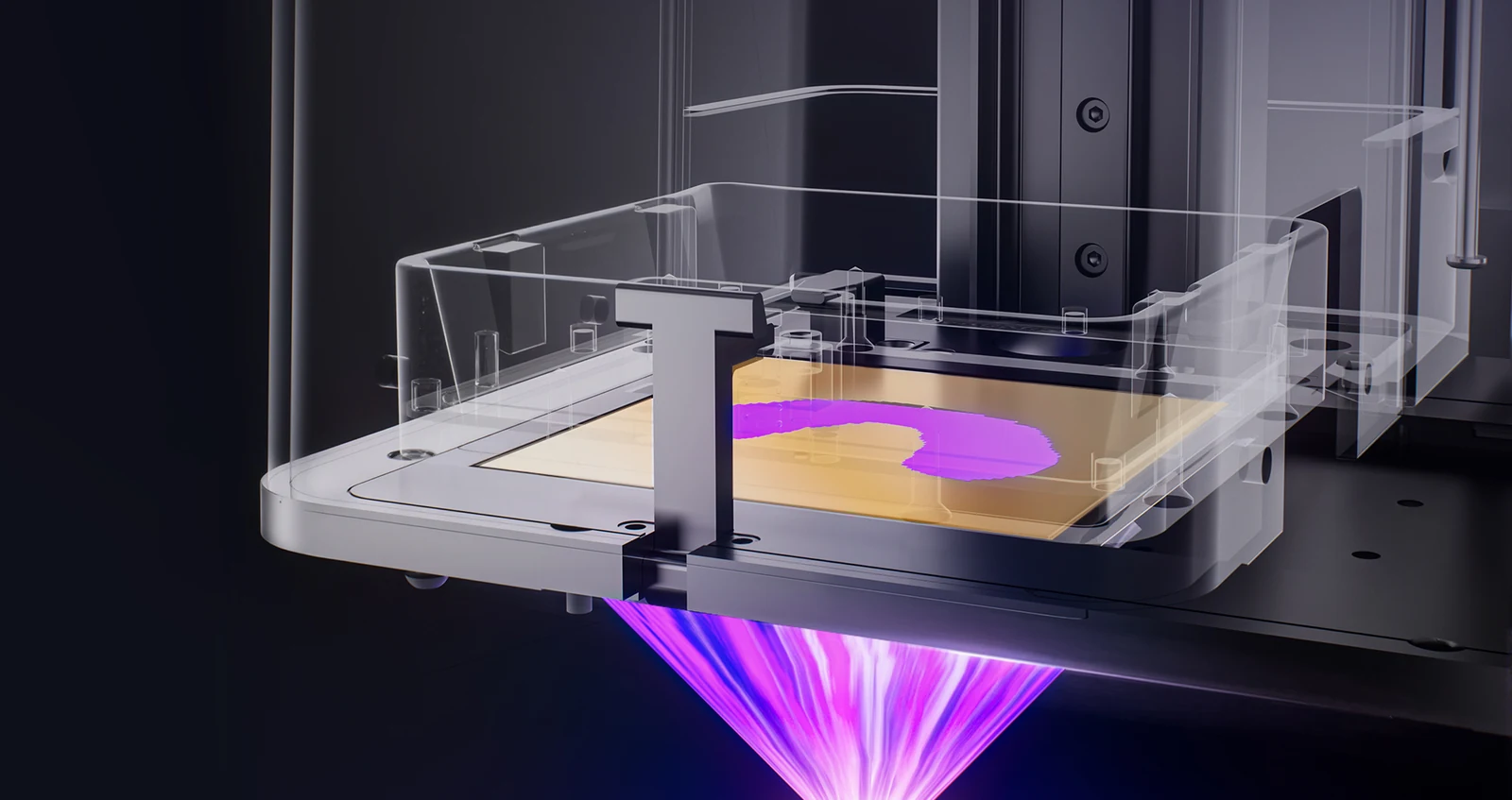

PioNext Ultra amber LCD screen and resin vat with UV light path

2x Screen Lifespan

With advanced Amber Screen technology, PioNext Ultra improves screen's UV resistance, and maintains stable performance during long-duration, high-frequency printing.

Thermal Stable Chamber

Engineered for Better Print Quality : Maintaining a steady 25-35°C environment optimizes resin flow and reduces layer lines, ensuring exceptional print quality.

PioNext Ultra heated printing chamber showing a 25 to 35 degree Celsius range

Auto Feed Unit

Automatic Resin Feeding & Recycling

Automated resin feeding and recovery guarantee continuous supply, smooth printing, and efficient material usage.

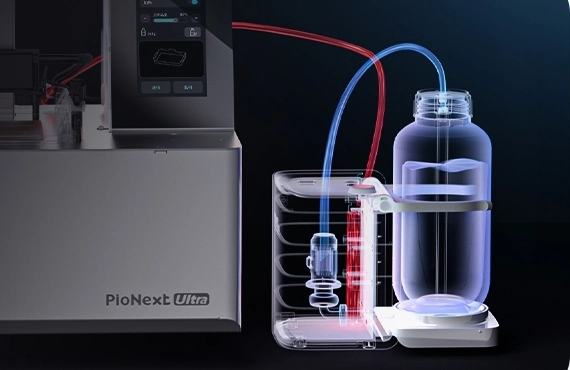

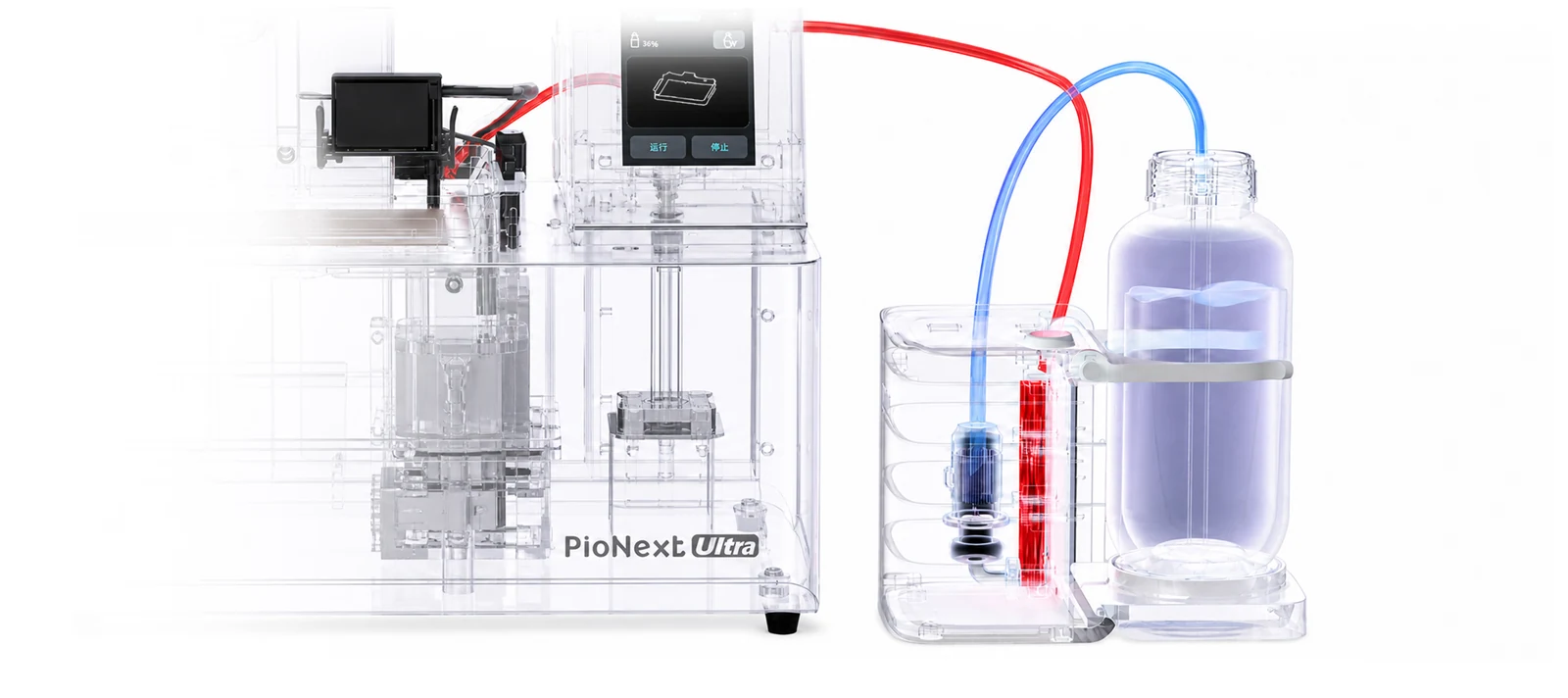

PioNext Ultra automatic resin feeding and recovery system diagram

Other Features

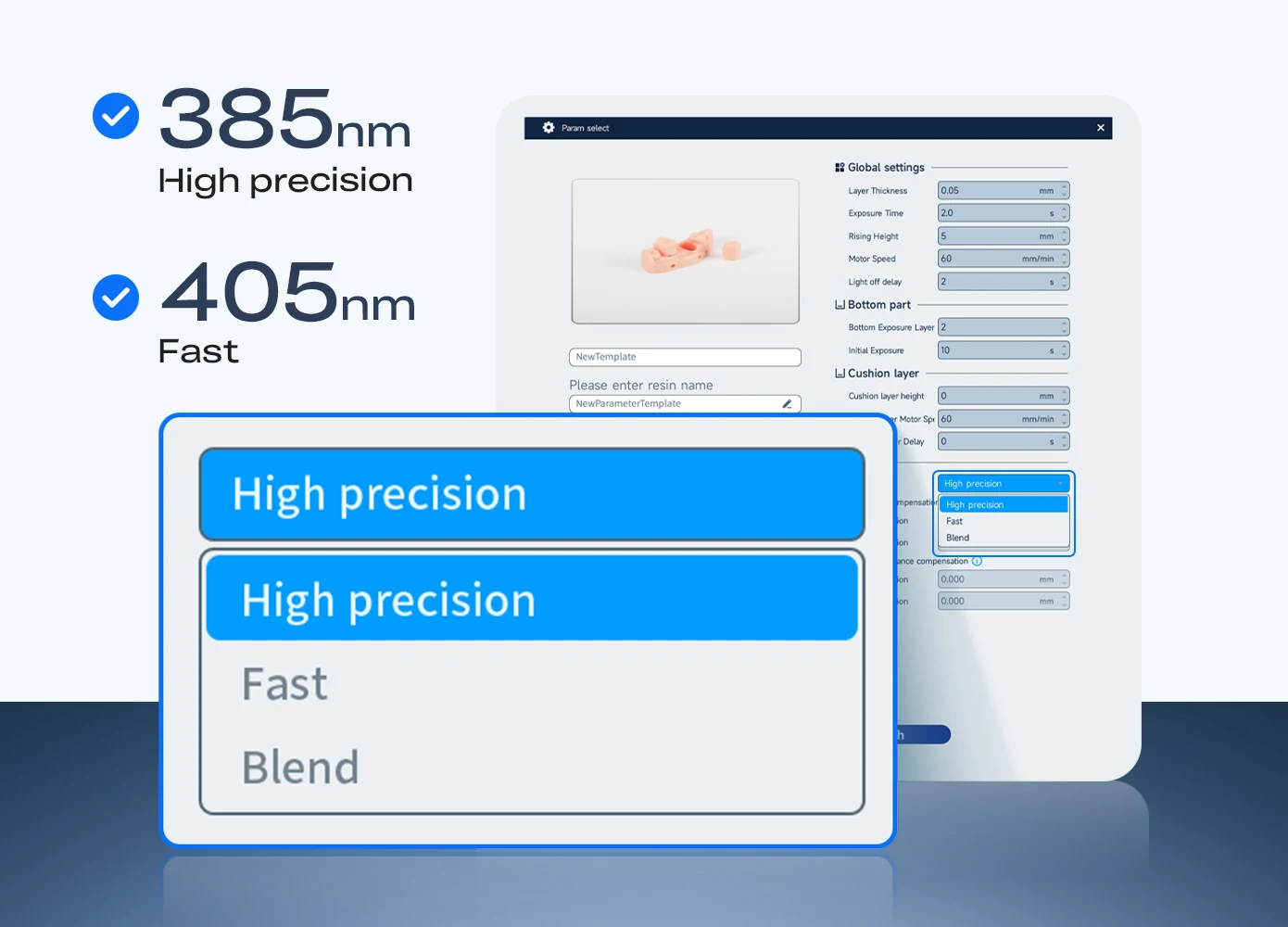

PioNext Ultra printing settings for 385 nm and 405 nm wavelengths

Dual Wavelength, Universal Compatibility

Supporting 385 nm and 405 nm wavelengths, the PioNext Ultra adapts seamlessly to a wide range of dental resins.

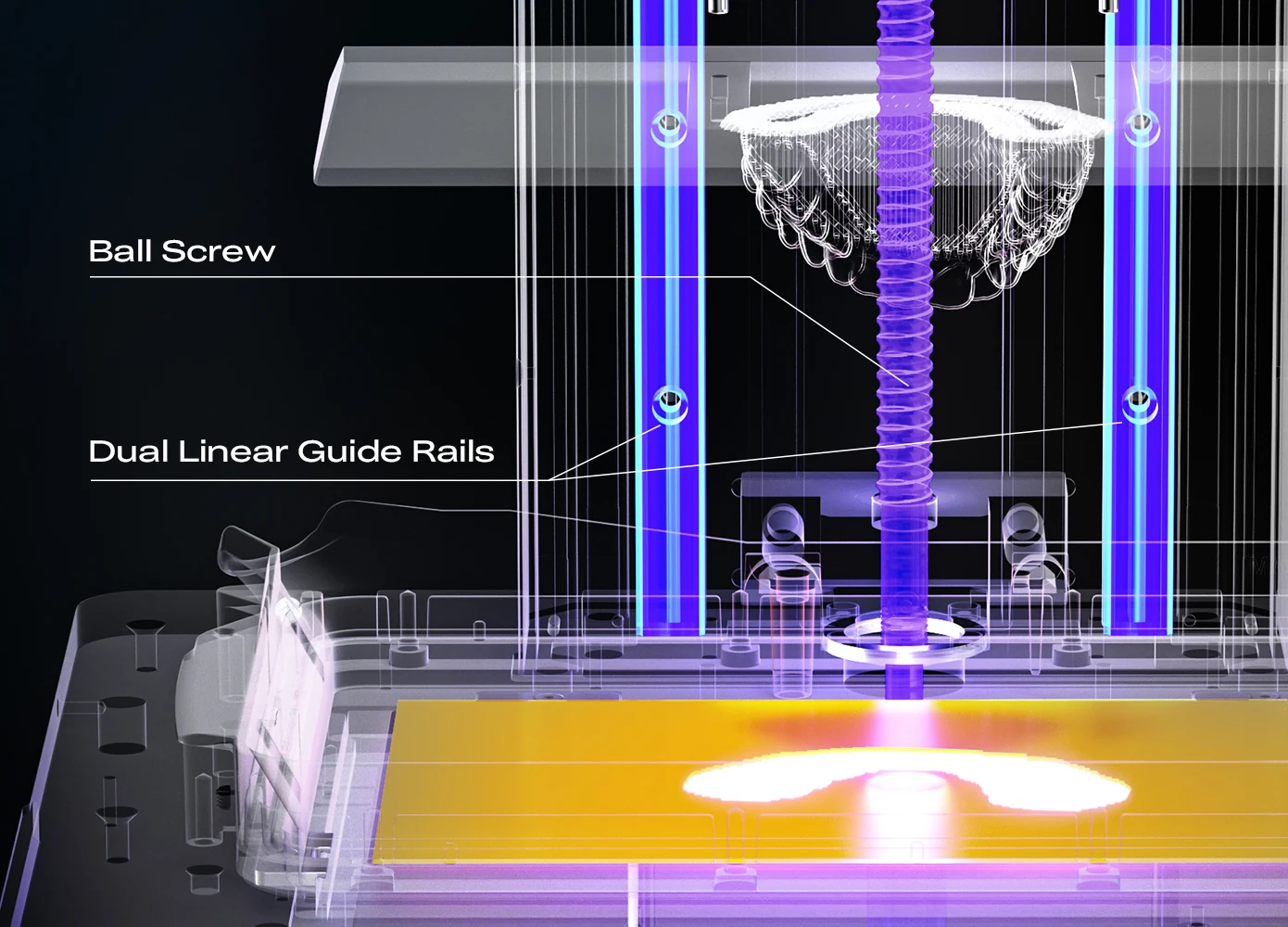

PioNext Ultra Z-axis ball screw and dual linear guide rails

Stable Z-axis

Dual linear guide rails combined with a ball screw ensure stable and precise Z-axis motion control.

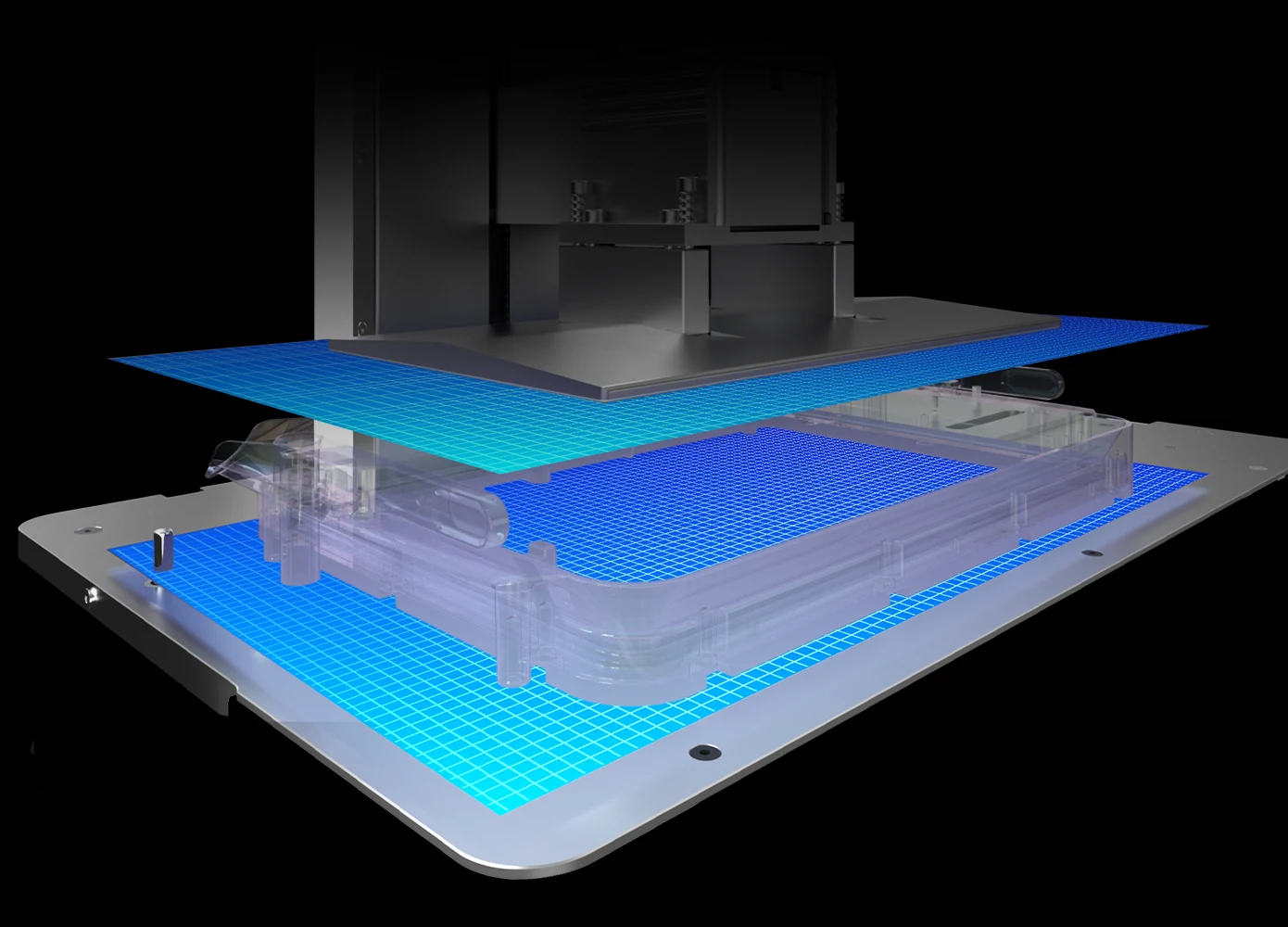

PioNext Ultra factory-leveled build platform and resin vat alignment diagram

Factory Pre-Leveled

Ensures a quick startup and long-term stability without the need for frequent manual leveling.

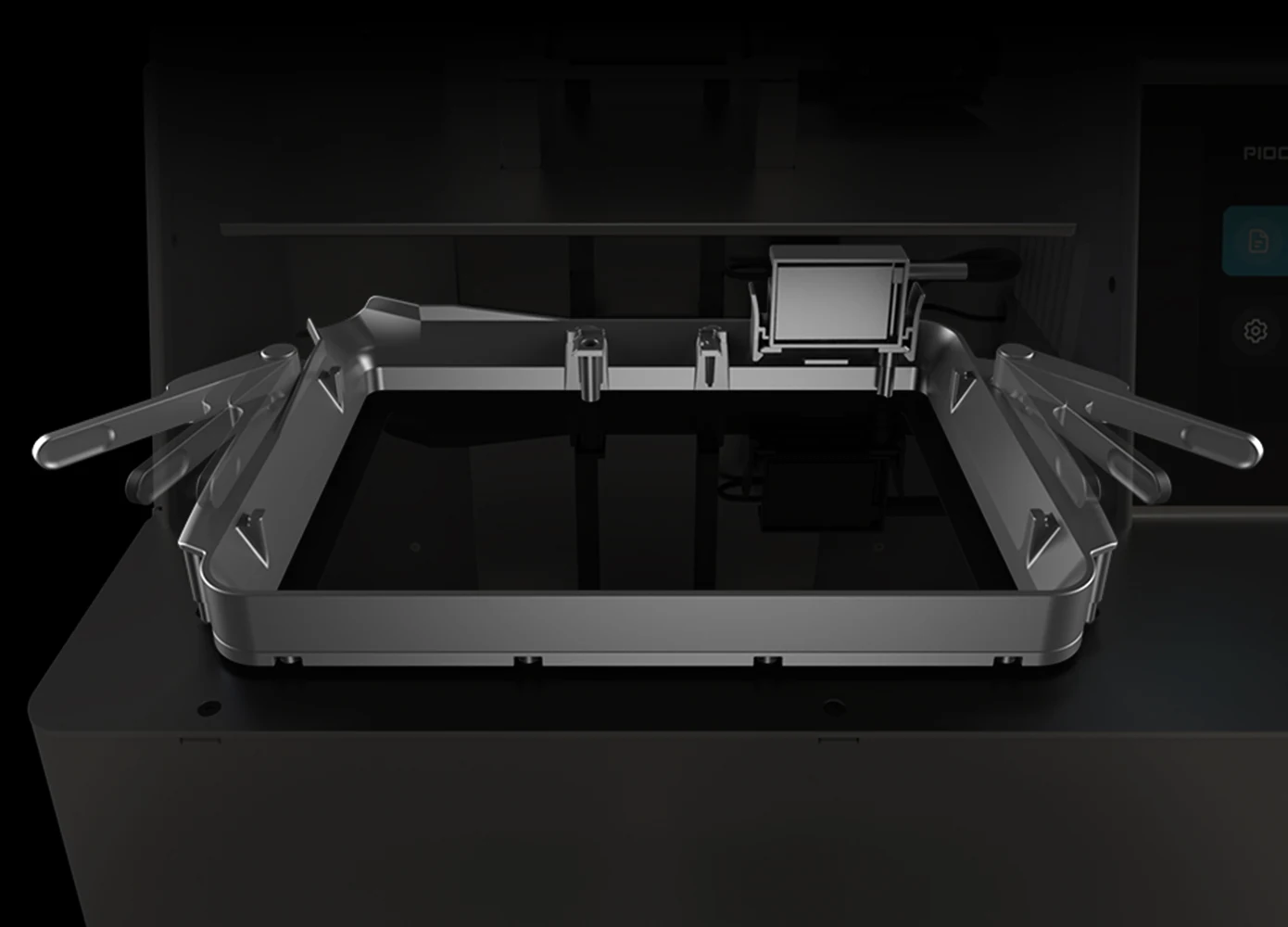

PioNext Ultra quick-release resin vat with side handles

Quick-Release Vat

Simplifies resin changes and vat maintenance, significantly enhancing operational efficiency for busy dental labs.

PioNext Ultra printing settings for 385 nm and 405 nm wavelengths

Dual Wavelength, Universal Compatibility

Supporting 385 nm and 405 nm wavelengths, the PioNext Ultra adapts seamlessly to a wide range of dental resins.

PioNext Ultra Z-axis ball screw and dual linear guide rails

Stable Z-axis

Dual linear guide rails combined with a ball screw ensure stable and precise Z-axis motion control.

PioNext Ultra factory-leveled build platform and resin vat alignment diagram

Factory Pre-Leveled

Ensures a quick startup and long-term stability without the need for frequent manual leveling.

PioNext Ultra quick-release resin vat with side handles

Quick-Release Vat

Simplifies resin changes and vat maintenance, significantly enhancing operational efficiency for busy dental labs.

PioNext Ultra printing settings for 385 nm and 405 nm wavelengths

Dual Wavelength, Universal Compatibility

Supporting 385 nm and 405 nm wavelengths, the PioNext Ultra adapts seamlessly to a wide range of dental resins.

PioNext Ultra Z-axis ball screw and dual linear guide rails

Stable Z-axis

Dual linear guide rails combined with a ball screw ensure stable and precise Z-axis motion control.

PioNext Ultra factory-leveled build platform and resin vat alignment diagram

Factory Pre-Leveled

Ensures a quick startup and long-term stability without the need for frequent manual leveling.

PioNext Ultra quick-release resin vat with side handles

Quick-Release Vat

Simplifies resin changes and vat maintenance, significantly enhancing operational efficiency for busy dental labs.

PioNext Ultra printing settings for 385 nm and 405 nm wavelengths

Dual Wavelength, Universal Compatibility

Supporting 385 nm and 405 nm wavelengths, the PioNext Ultra adapts seamlessly to a wide range of dental resins.

PioNext Ultra Z-axis ball screw and dual linear guide rails

Stable Z-axis

Dual linear guide rails combined with a ball screw ensure stable and precise Z-axis motion control.

PioNext Ultra factory-leveled build platform and resin vat alignment diagram

Factory Pre-Leveled

Ensures a quick startup and long-term stability without the need for frequent manual leveling.

PioNext Ultra quick-release resin vat with side handles

Quick-Release Vat

Simplifies resin changes and vat maintenance, significantly enhancing operational efficiency for busy dental labs.

PioNext Ultra printing settings for 385 nm and 405 nm wavelengths

Dual Wavelength, Universal Compatibility

Supporting 385 nm and 405 nm wavelengths, the PioNext Ultra adapts seamlessly to a wide range of dental resins.

PioNext Ultra Z-axis ball screw and dual linear guide rails

Stable Z-axis

Dual linear guide rails combined with a ball screw ensure stable and precise Z-axis motion control.

PioNext Ultra factory-leveled build platform and resin vat alignment diagram

Factory Pre-Leveled

Ensures a quick startup and long-term stability without the need for frequent manual leveling.

PioNext Ultra quick-release resin vat with side handles

Quick-Release Vat

Simplifies resin changes and vat maintenance, significantly enhancing operational efficiency for busy dental labs.

PioNext BOX

Intelligent CAM Software

An intuitive CAM software features a "Pick-And-Print" system and an open material ecosystem. With full dental-specific automation (auto-orientation, support, and layout), it ensures precise results for every indication.

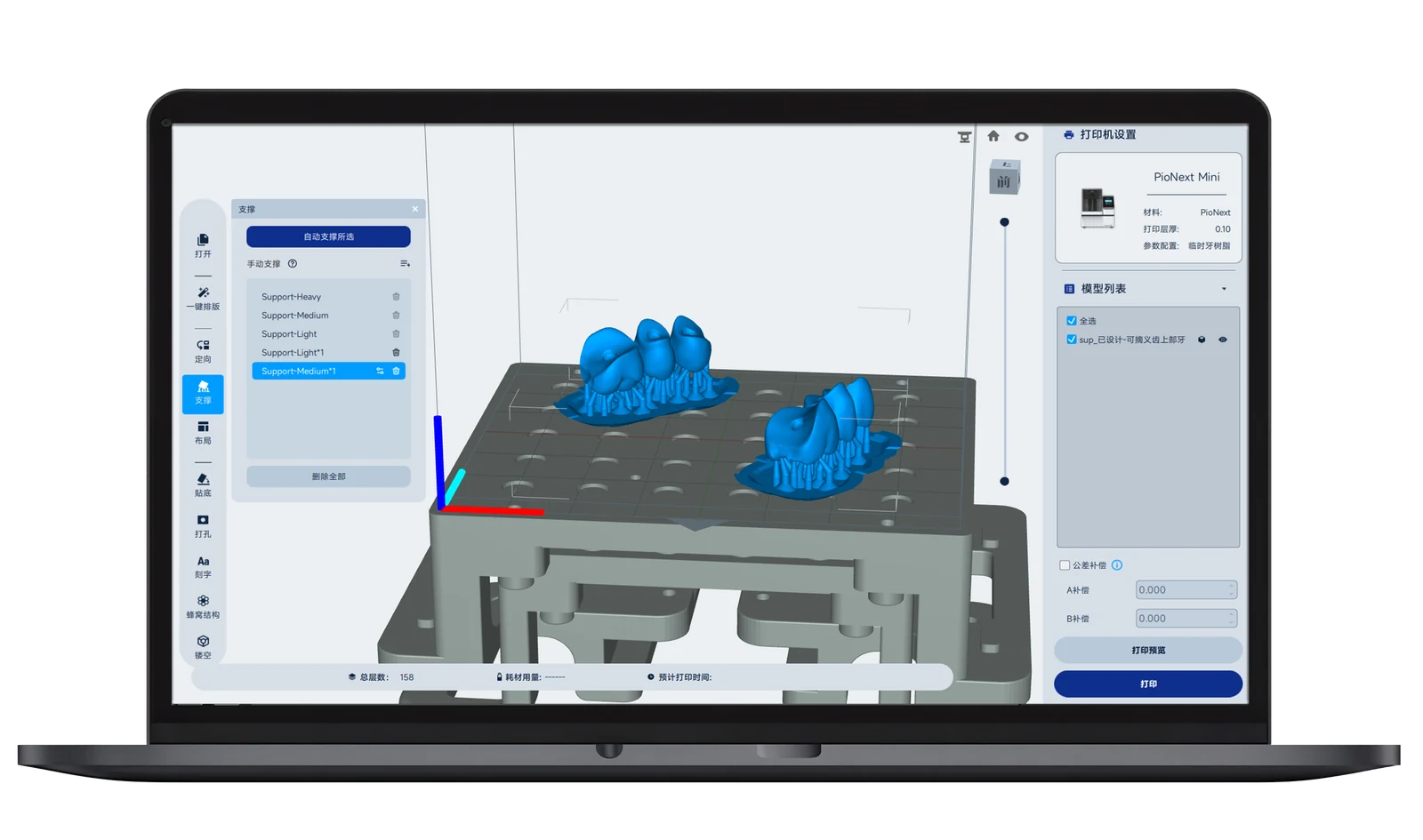

PioNext Box CAM software preparing dental models for resin 3D printing
Learn More
Smarter Digital Dentistry

One-Stop Digital Dentistry 3D Printing Solution

A complete dental 3D printing ecosystem that unites printer, resin, and software for consistent results and seamless workflows.

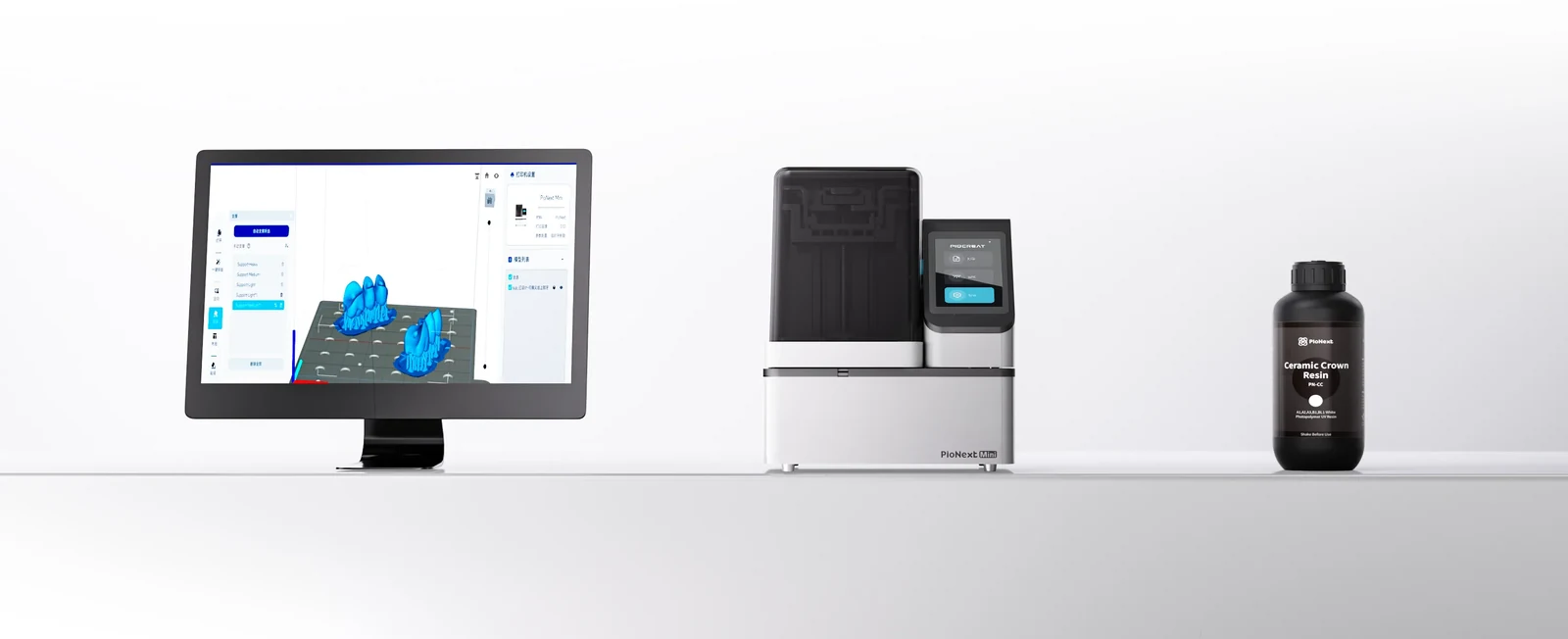

PioCreat dental printing system with CAM software, a dental 3D printer and resin

Open Resin Library

Expand Your Material Options

A versatile resin ecosystem featuring biocompatible materials and compatibility with certified third-party resins, empowering flexible and reliable dental production.

Learn More

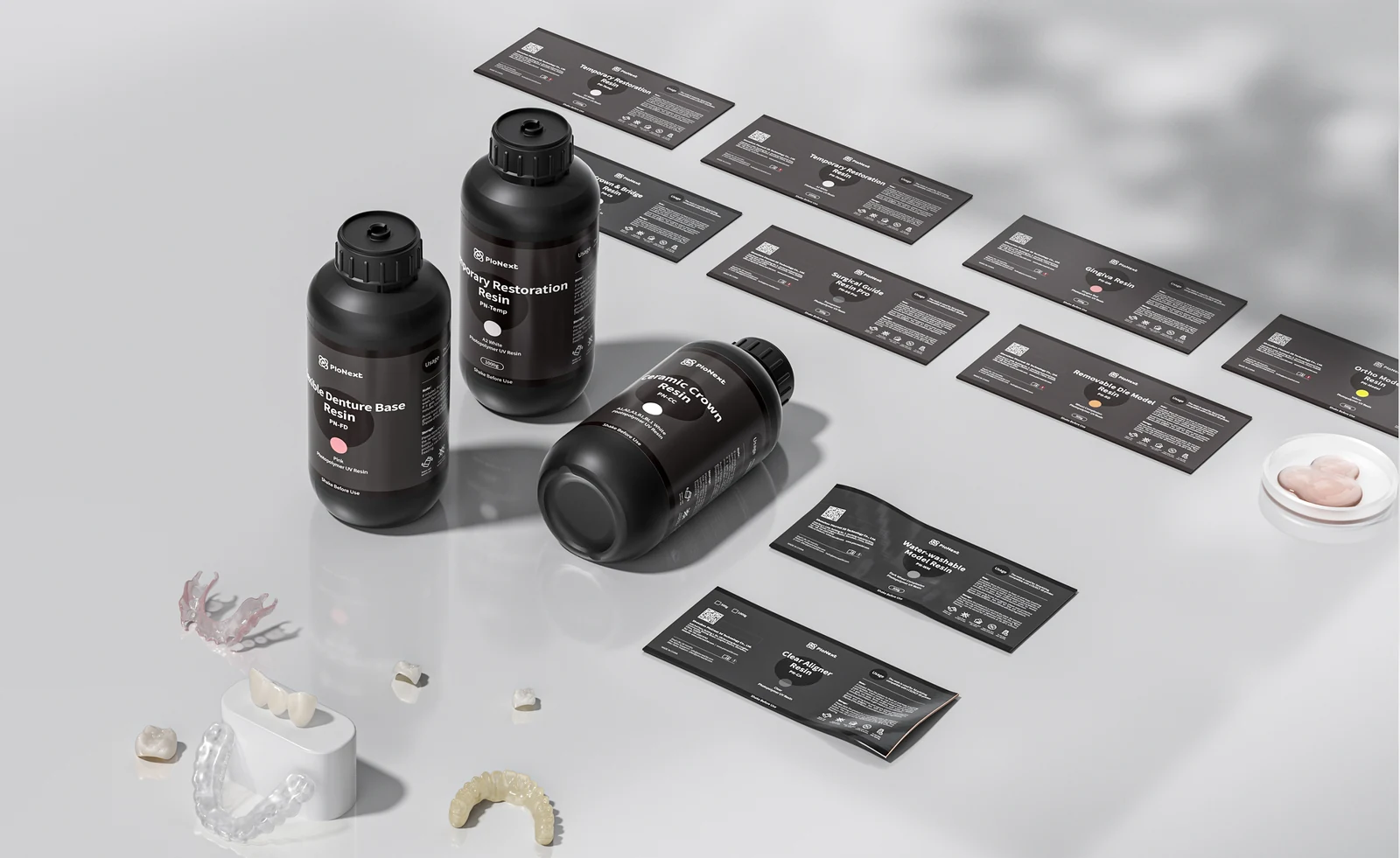

Dental resin bottles and printed dental samples in the PioCreat resin library

You Might Also Be Interested In

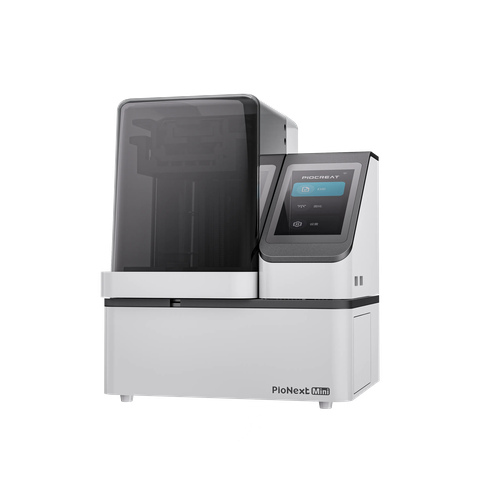

PioNext Mini

PioNext Mini

Learn More

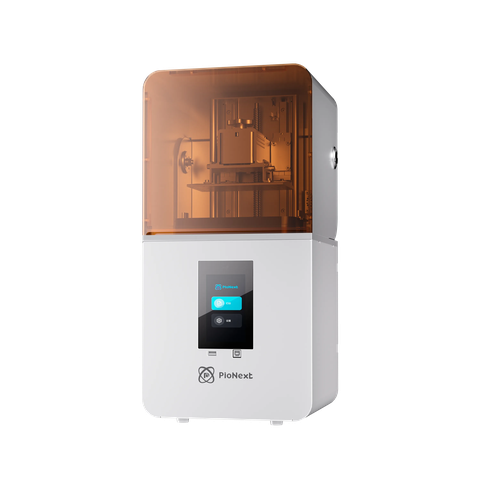

D160

D160

Learn More

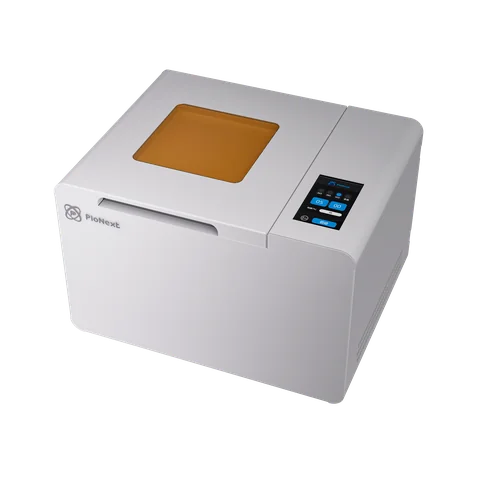

UV02

UV02

Learn More

Parameters

PioNext Ultra

Printing TechnologyLCD
Build Volume211.68x118.37x100mm
Machine Size468x286x470mm
Package Size600x370x585mm
XY-Axis Accuracy14*19um
Resolution15,120x6,230px
Print SpeedMax.60mm/h (0.1mm layer thickness)
Layer Thickness0.01-0.1mm
Touch Screen5-inch Capacitive Color Touch Screen
LanguagesEnglish, Chinese, German, Spanish,French, Italian,Netherlands, Japanese,Korean,Polish, Portugal, Russian, Turkish
Compatible ResinRemovable Die Model /Ortho Model Resin /Ortho Model 2.0 Resin/ Dental Casting Resin /Surgical Guide Resin / Surgical Guide Pro Resin /Temporary Restoration Resin /Denture Base Resin / Crown & Bridge Resin and other official authorized resin
ConnectivityUSB Stick/WLAN
Slicer SoftwarePioNext BOX / CHITUBOX Dental
File Format.cxdlpv4
Rated Voltage100-240V~, 50/60Hz
Rated Power660W
Net Weight19.78kg
Gross Weight23.67kg
