Otter Lite

Ultra-Precise Data Capture for Various O&P Applications

Cut the Cords, Scan Freely

Stream scan data directly to your mobile device for real-time preview and control

3-Hour Endurance

The built-in battery powers extended sessions, perfect for full-body clinical assessments

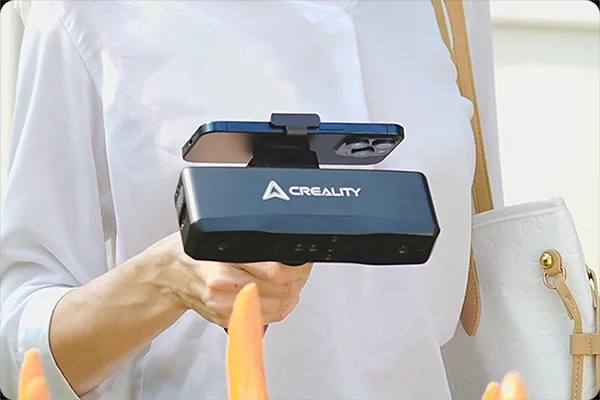

Out-of-Box Readiness

No extra purchases needed—unbox and start capturing wirelessly

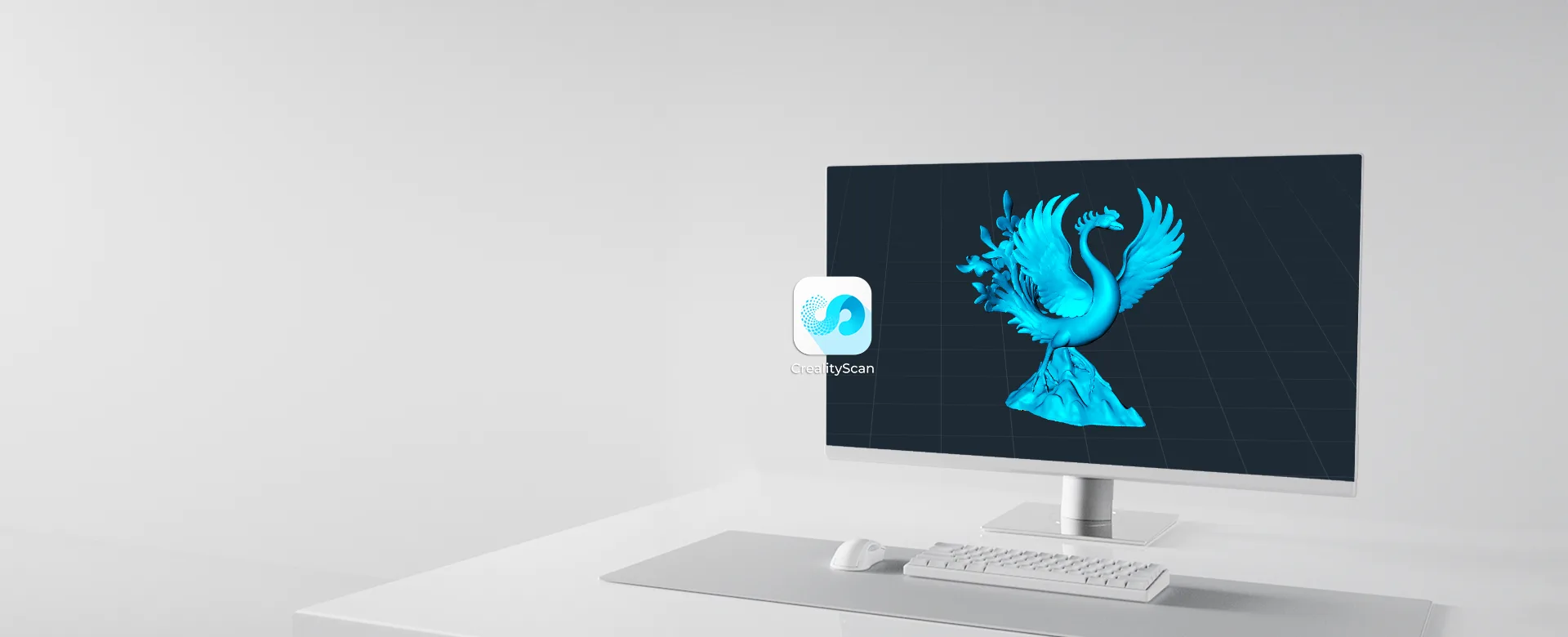

Smarter, Faster, Stronger

CrealityScan 4.0 is a professional 3D scanning software with excellent user-friendliness and powerful image and point cloud processing capabilities. With its step-by-step tutorials, one-click model processing, and model editing features, it can easily kickstart your effortless scanning journey.

Full-Screen Scanning

Multi-Scan Alignment

Pointcloud/Mesh Editing

Marker Mode

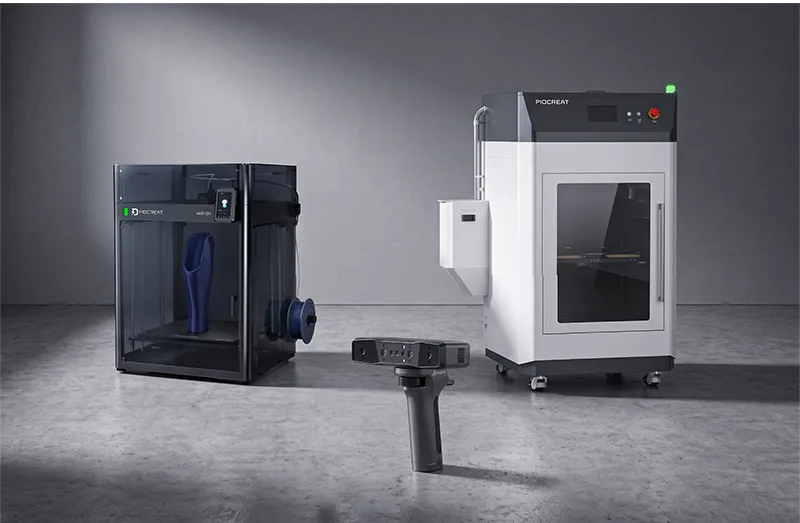

One-Stop O&P Printing Solution

We provide a completely integrated O&P ecosystem—combining 3D scanners, software, printers, and materials—to deliver an efficient, precise, and streamlined workflow for custom orthotic fabrication.

Parameters

Otter Lite

Scanning ModeNIR(infrared binocular structured light)

Accuracy0.05mm@100mm [1]

3D Resolution0.1-2mm

Scanning SpeedUp to 30fps

Min. scan volume20mm x 20mm x 20mm

Single Capture RangeClose range mode 100mm*62mm@120mm 160mm*130mm@250mm Long range mode 352mm*254mm@300mm 788mm*509mm@600mm 1460mm*1017mm@1200mm

Working distance120mm-1200mm

Color MappingYes

Alignment ModeMarker / geometry / texture

Output FormatOBJ/STL/PLY

IMUYes

Marker Recognition Enhancement8 NIR LEDs

Laser SafetyClass I (eye safe)

WeightMain unit: 300g Lite bridge: 306g

Size173mm*39mm*56mm

Calibration BoardHigh-precision glass calibration board

ProtocolWi-Fi 6, Backward compatibility

Wireless ScanningYes

Wi-Fi Bands5GHz

Data Transfer RateUp to 30fps

Data InterfaceType-C/USB3.0/USB2.0

Color Supplemental Light2 white LEDs

System SupportWindows: Windows 10/11 (64-bit) Recommended: i7-Gen7+ CPU, Nvidia/AMD GPU, 16GB+ RAM Minimum: i5-Gen8+ CPU, 8GB+ RAM Mac OS: Recommended: Apple M1/M2/M3 16GB+ RAM Minimum: Intel i5-Gen8+ 8GB+ RAM Android Chip:Qualcomm Snapdragon 888++ Operating System:A

Input PowerUSB3.0 5V 3A WiFi 12V 2A
