Sermoon P1

Ultra-Precise Data Capture for Various O&P Applications

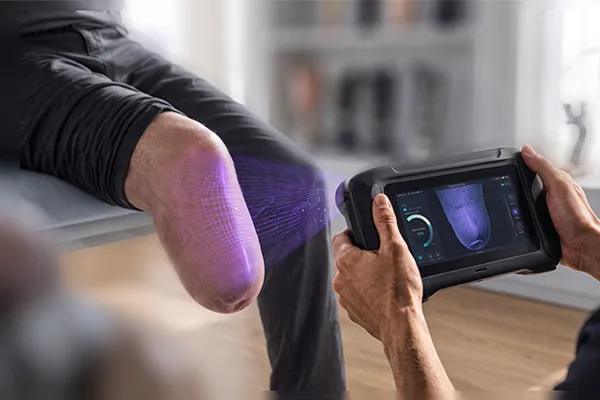

All-in-One Scanning Workflow

All-in-One Scanning Workflow

Scan, process, and export on a single device with powerful laser & structured light systems and onboard computing

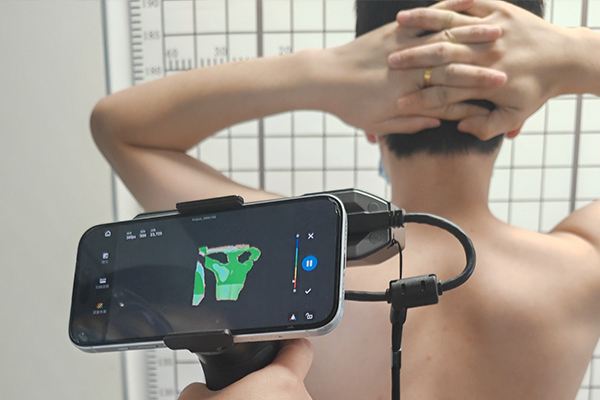

Cable-Free Scanning

Cable-Free Scanning

Built for confined spaces, enabling fast, efficient data capture anywhere

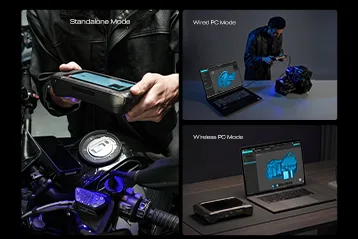

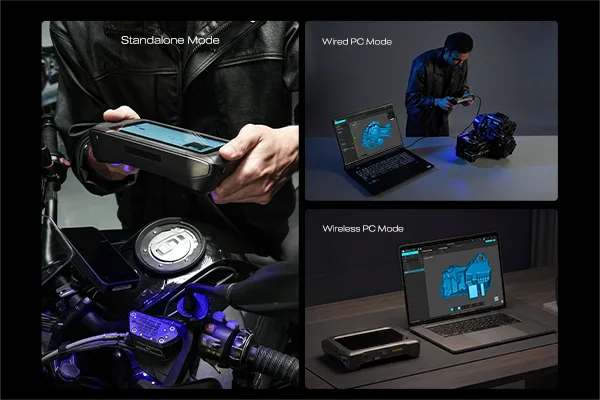

Triple Work Modes

Triple Work Modes

Switch seamlessly between Standalone, Wired, and Wireless PC modes for flexible scanning workflows

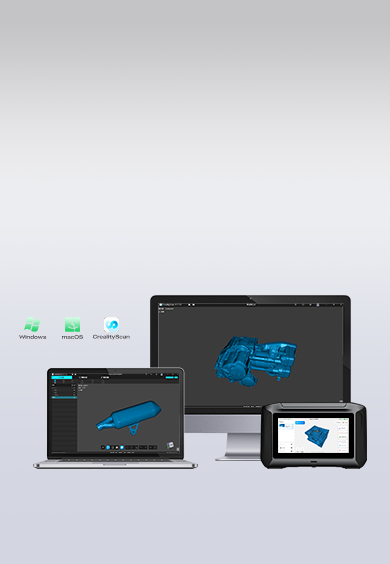

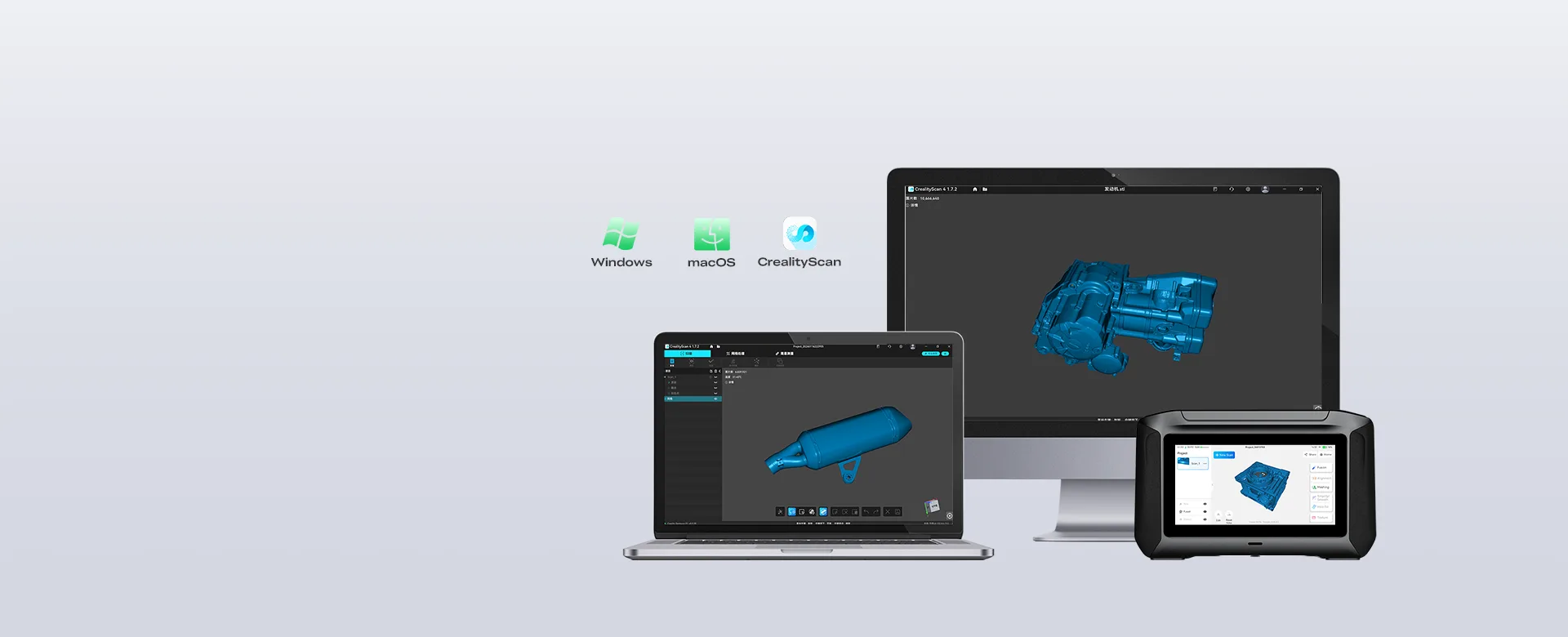

Powerful Onboard Software

An all-in-one onboard software integrates Calibration, Scanning, Point-cloud Fusion, Mesh Editing, Mulit-scan Merging, enbling complete model processing directly on the device.

Intuitive Interaction
Modular & Flexible Design
One-Click OTA Updates

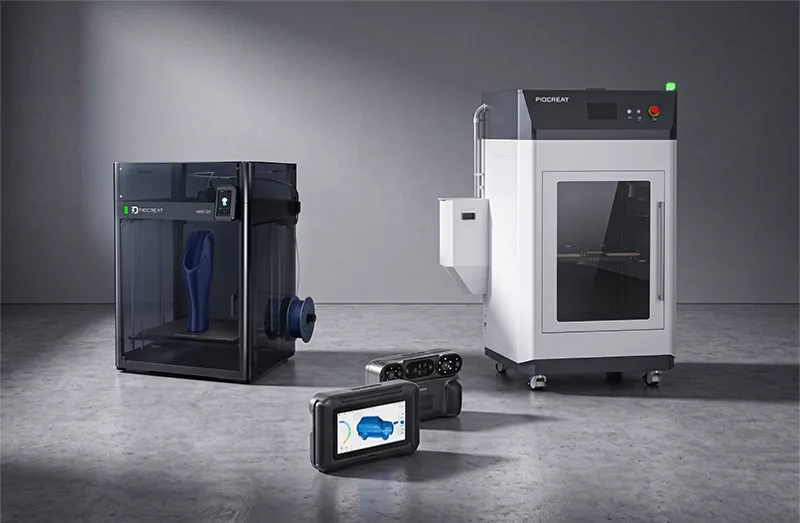

One-Stop O&P Printing Solution

We provide a completely integrated O&P ecosystem—combining 3D scanners, software, printers, and materials—to deliver an efficient, precise, and streamlined workflow for custom orthotic fabrication

One-Stop O&P Printing Solution

You Might Also Be Interested In

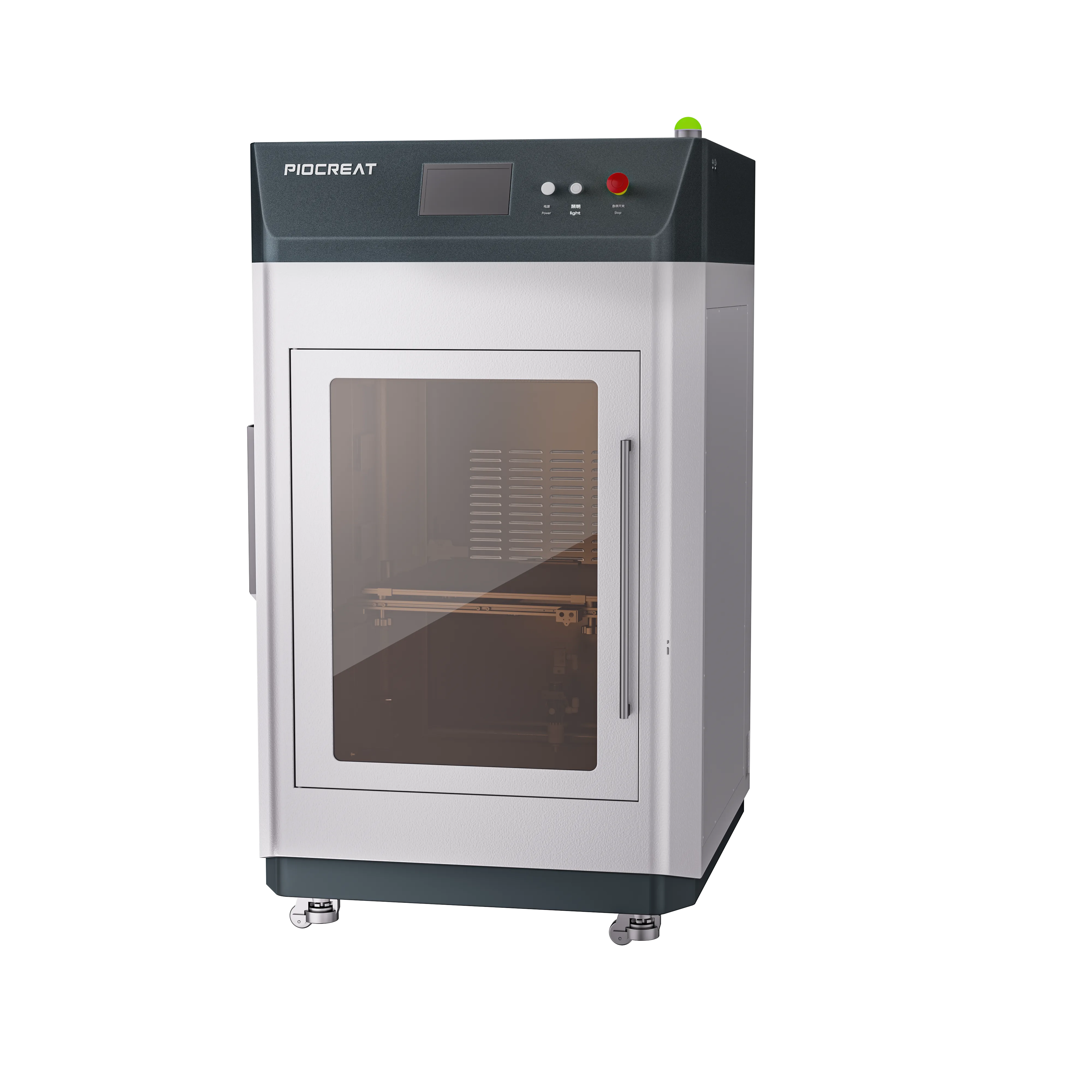

MS01 SE

MS01 SE

Learn More

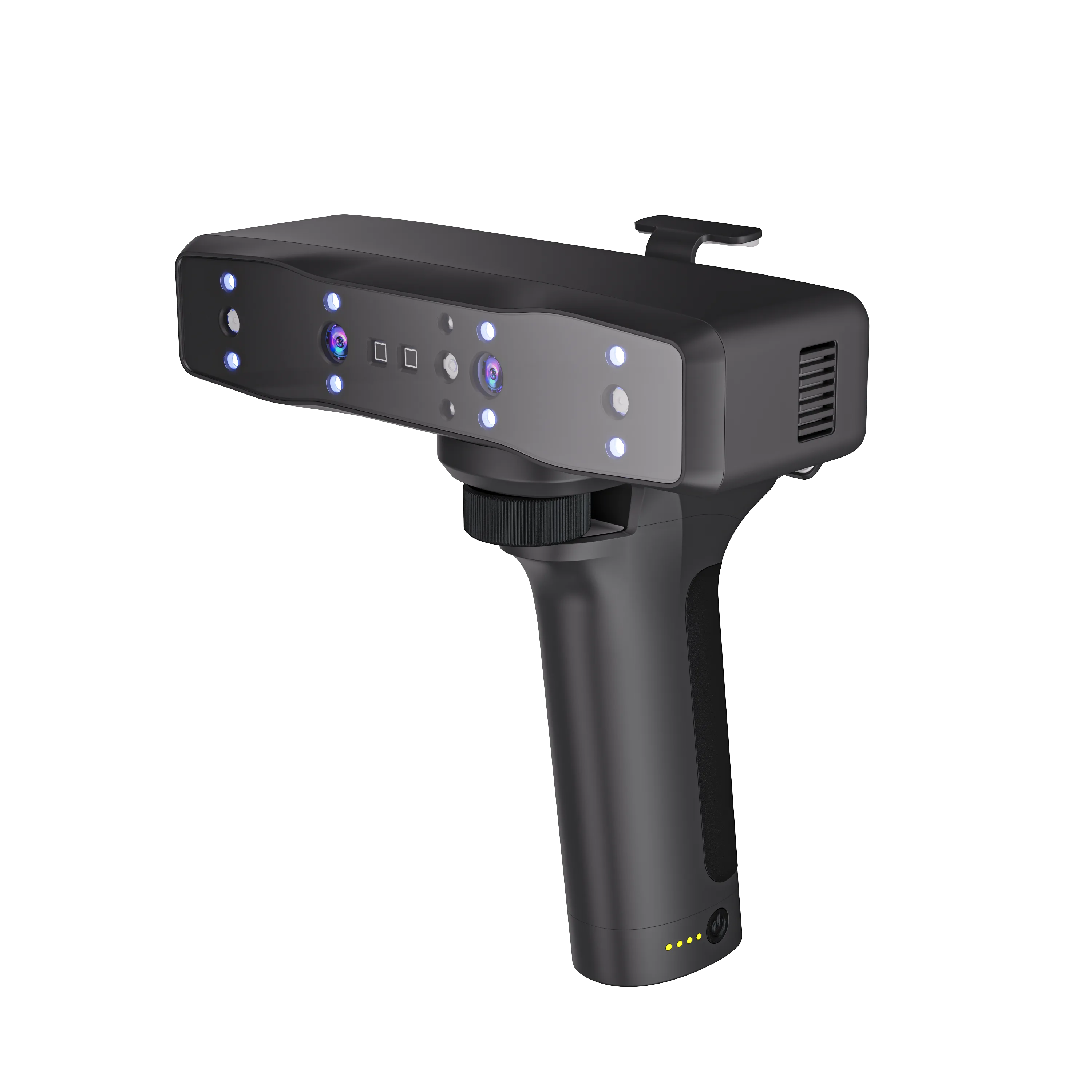

Otter Lite

Otter Lite

Learn More

Parameters

Sermoon P1

Scanning ModeSingle Blue Laser Line, 7 Parallel Blue Laser Lines, 22 Cross Blue Laser Lines, Close-Range Infrared Structured Light, Long-Range Infrared Structured Light
Color MappingSupported
Color Supplemental Light12 White LEDs
Marker Recognition Enhancement12 Blue LEDs
Device Weight830g
Size209mm × 129mm × 53mm
Calibration boardHigh-precision glass calibration board
ProcessorQualcomm CPU, 8-core 3.36 GHz Adreno 740 GPU FPGA
Built-in RAM24GB LPDDR5X
Built-in Storage256GB UFS 4.0
Display6-inch HD touchscreen
Battery Capacity3300 mAh × 2 (Quick-swap, replaceable)
Charging65W PD 3.0 fast charging
Wireless PC ScanSupported
Operating ModesStandalone Mode Wireless PC Mode Wired PC Mode
Wi-FiWi-Fi 7
PC Software SupportWindows/macOS
Computer Configuration RequirementsRecommended Configuration: OS: Win10/11 (64-bit) CPU: Intel i7 13th Gen or above Dedicated Graphics Card: NVIDIA 4060 or higher (8GB VRAM) RAM: ≥64GB OS: macOS 14 or above CPU: Apple M3/M4 /M5 RAM: ≥32GB
