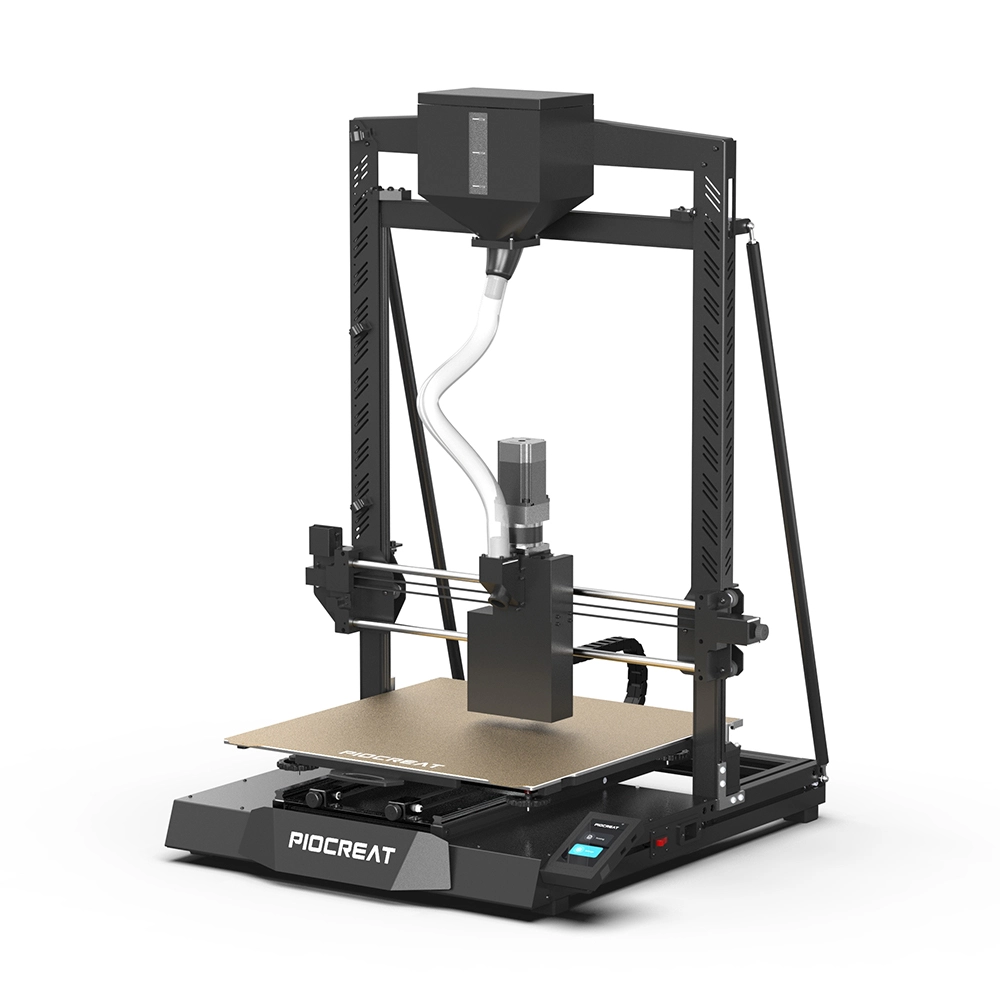

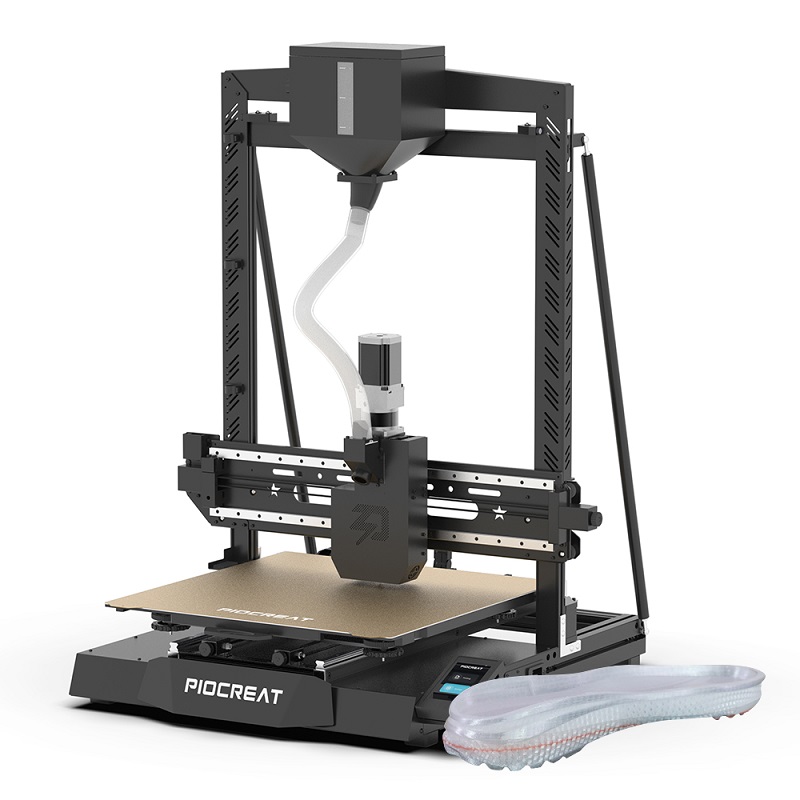

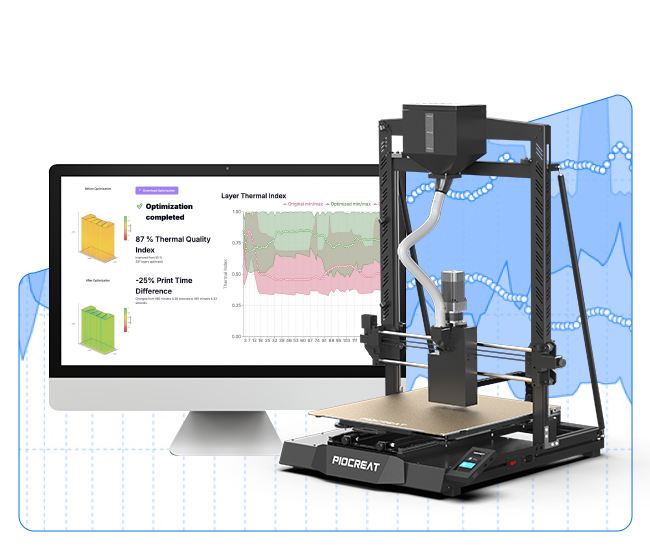

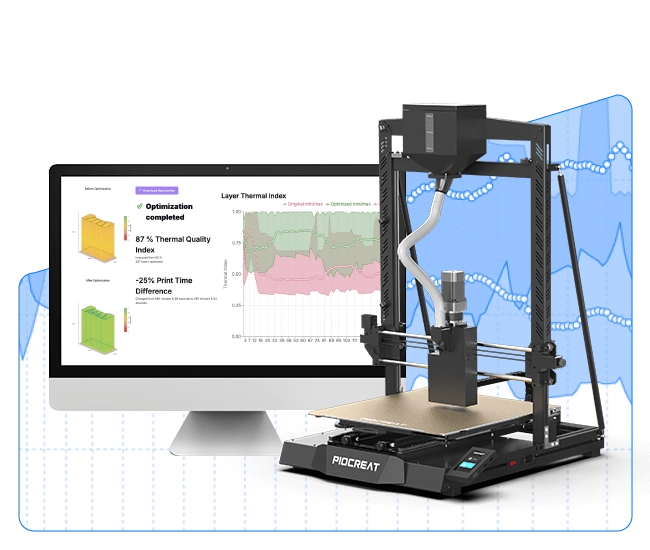

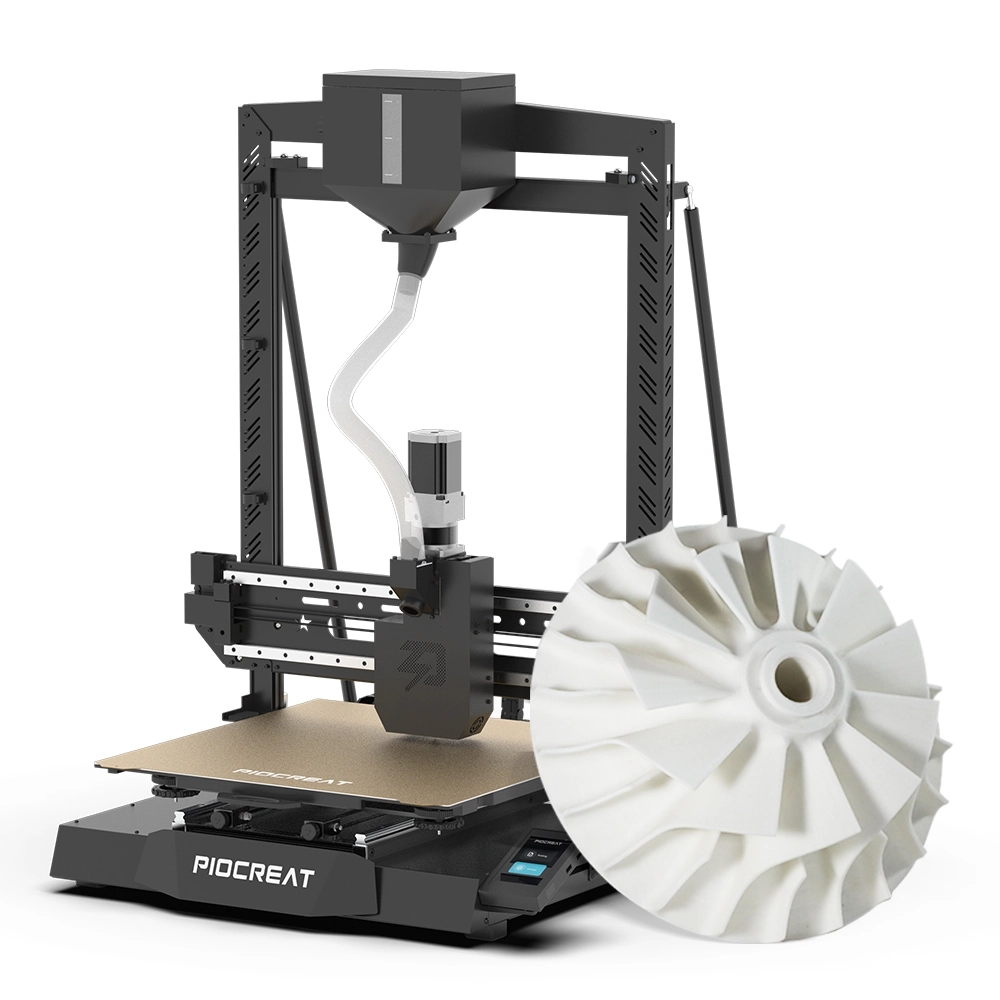

G5Ultra Pellet 3D Printer is a desktop-sized powerhouse that revolutionizes the field of high-speed industrial production. Designed to cater to the demanding needs of educational and academic research, design studios, prototyping workshops, and more, this printer brings the future of manufacturing to your desktop with its significant build volume of 500 x 500 x 400 mm.

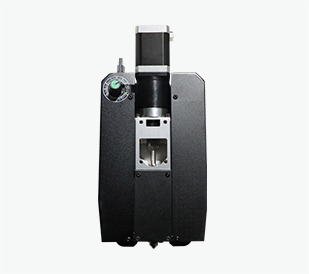

The next generation extruder (with segmented heat zones) can fit nozzles in diameters ranging from 0.4mm up to 3mm, and the machine can print pellets/granules measuring 2-5mm in diameter. The particles are fed into the extruder from a 3 liter hopper, ensuring a ready supply of feedstock for its huge deposition rate. It heats up to a toasty 420°C, enabling the printing of a wide range of materials.
What if your print does run out of material during a job? Well, G5Ultra has thought of this possibility and developed a new material level sensor. The sensor detects when material is running out, and sounds a warning alarm, notifying users to refill the hopper. The printer keeps the progress of the interrupted print job in memory, and resumes from exactly where it stopped, once the pellets have been refilled.
The G5Ultra boasts desktop 3D printing speeds that reach up to 220mm/s. With regards to the flow rate of the materials, the G5 Ultra is capable of depositing a staggering 0.8kg per hour, ensuring it stands out for individuals requiring rapid production without compromising the intricacies of design or the overall quality of the final product.

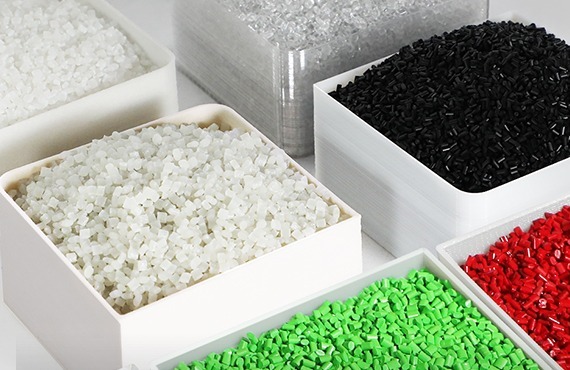

With its ability to heat up to 420℃, the G5Ultra Pellet 3D Printer excels in processing a wide range of thermoplastics and composites. This flexibility allows for experimenting with various pellets, including PA-CF,PA-GF,PC-CF, PLA, rPLA, PETG-GF, ABS, PS, GPPS, PP-GF, and more, enabling the creation of functional prototypes, artistic works, or educational models with desired material properties.
Pellet extrusion 3D printing offers significant savings, cutting costs up to 10X compared to traditional filament-based methods.
Enjoy speeds up to 10X faster than conventional filament extrusion 3D printing, drastically reducing project lead times.
Use original materials for optimal material properties, ensuring enhanced performance of printed components through superior quality.

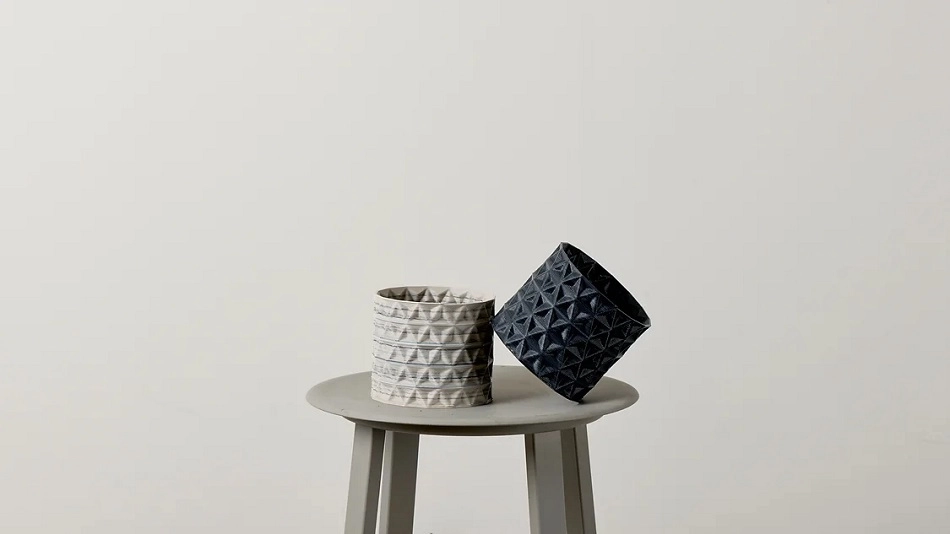

Our 3D printing innovation uses pellets and shredded recycled plastic for sustainable, eco-friendly additive manufacturing alternatives.
| G5Ultra Pellet 3D Printer Parameters | |
|---|---|
| Molding technology | FGF Fused Granulate Fabrication |
| Printing Size | 500×500×400mm |
| Machine Size | 765 x 890 x 1040mm |
| Hopper capacity | 3000ml |

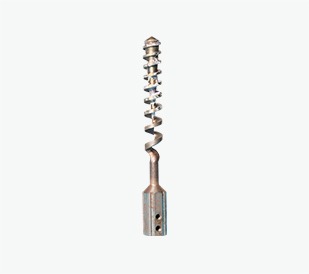

| Discharging mechanism | Screw extruder |
| Number of nozzles | Single nozzle |
| Nozzle Tempature | ≤420°C |
| Heating bed temperature | ≤120°C |
| Nozzle diameter | 0.4-2mm |
| Particle diameterr | 2-5mm |
| Print layer thickness | 0.2-1.0mm |
| Printing speed | 260mm/s |
| Flow Rates | 0.8kg/h |
| Voltage | AC100-240V 50/60Hz |
| Rated power | 1450W |
| Power Voltage | AC220V |
| Rated Power | 7000W |
| Files Format | STL/OBJ/AMF |
| Transfer method | U disk / WIFI printing |
| Slicing software | Piocreat Slicer/Cura/Simplify3D |
| Nozzle diameter | Standard: 0.8mm/1.0mm/2.0mm |
| Warranty | 12 months manufacturer's warranty |
| Technical Support | Unlimited lifetime technical support |
Cut your material costs by more than 60% by printing with Plastic pellets and recycled plastics instead of filament.

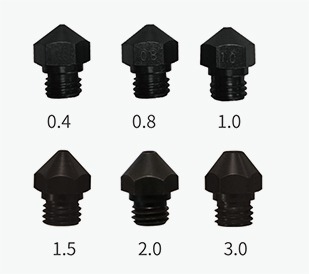

Various types of nozzles 0.4,0.8, 1.0, 1.5, 2.0, 3.0, 4.0,etc.

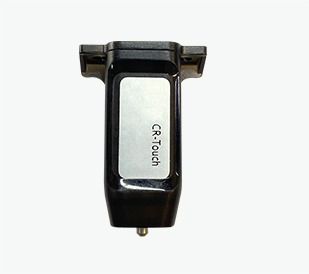

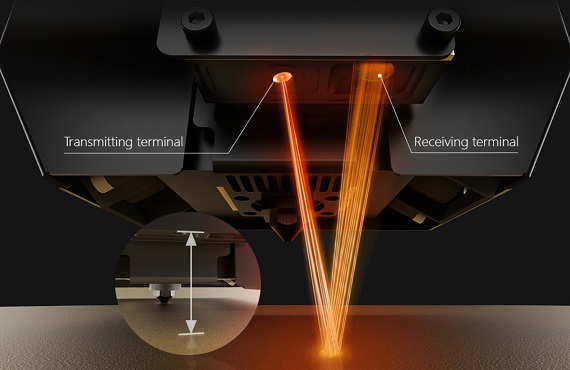

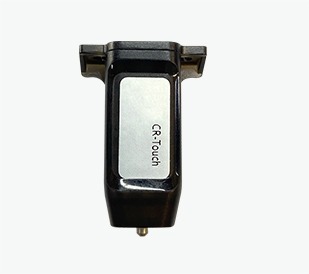

Independent research and development, multi-point detection, intelligent compensation.

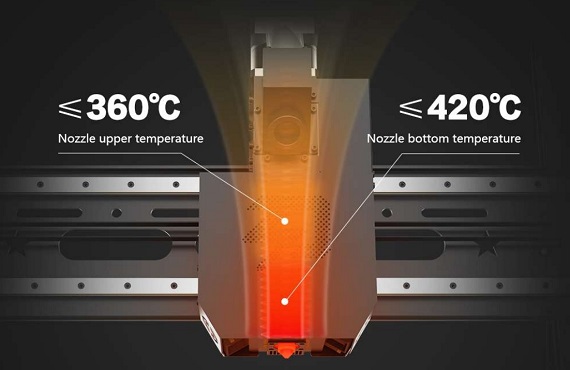

Maximum temperature 450°C, Consumables melt thoroughly and extrude smoothly.

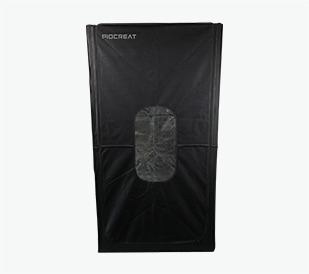

3D printer insulation cover, Thermal insulation, constant temperature printing.

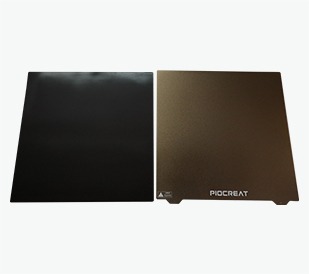

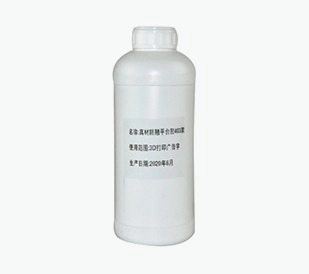

Heating up quickly,reducing waiting time for printing. The platform is easy to put and take,can be bent,easy to take the mold.
