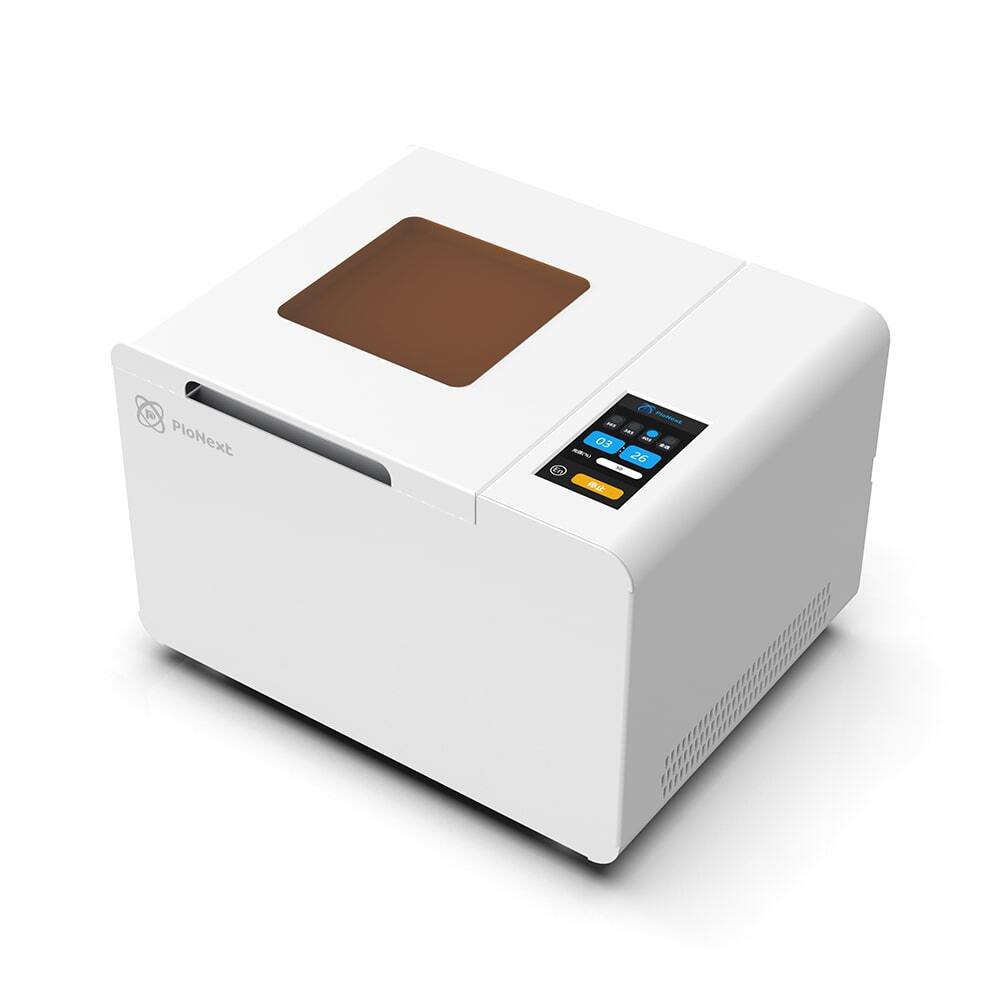

The UV02, a top post-processing tool for the dental industry, enhances 3D resin printing by solidifying and upgrading dental models’ mechanical properties. Its precise UV exposure, vital for completing the 3D printing process, is specially designed for professional dental resins, offering controlled light for perfect curing in just 1-5 minutes.

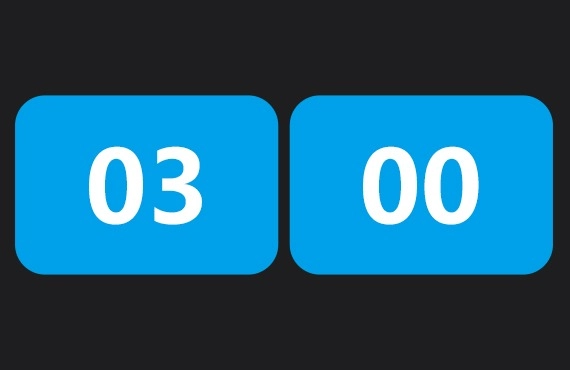

Designed specifically for dental professionals, the UV02 isn’t just a UV curing chamber—it’s key in turning 3D printed objects into final dental creations. Its fast curing technology transforms dental models in 1-5 minutes, solidifying resin and minimizing distortion risk from post-cure heat reactions.

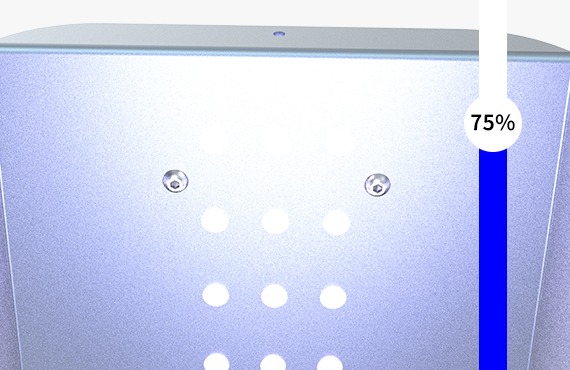

The UV02 features adjustable light power, allowing control from 5% to 100% intensity. This ensures precise curing for different professional dental resins, enabling perfect solidification by meeting specific requirements with exact exposure.

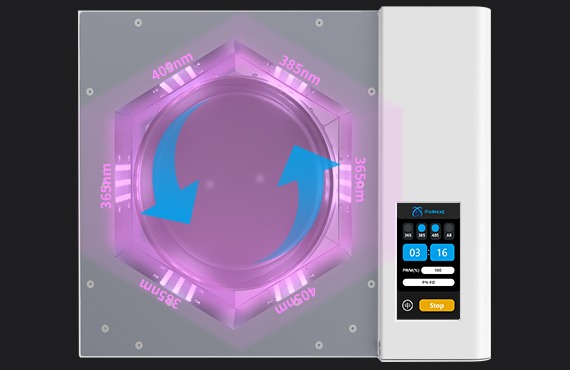

Different resins respond best to specific wavelengths. With the option to customize wavelengths at 365nm, 385nm, or 405nm, the machine caters to a wide array of resin types, ensuring compatibility and optimal curing for a diverse range of dental applications.

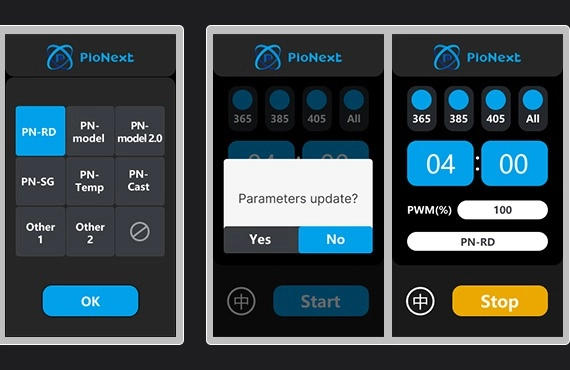

The UV02 boasts user-friendly features, including presets and customizable cure settings. It allows saving eight data groups, enabling dental professionals to easily choose the ideal curing profile for repeated tasks or new resin experiments. This streamlines workflow and enhances production efficiency and consistency.
Specially designed for professional dental resins, offering controlled light for perfect curing in just 1-5 minutes.
PioCreat's products incur lower ownership costs, producing more items with less material compared to competitors.
Engineered for simplicity, our products ensures easy setup, effortless use, and minimal maintenance, ideal for both experts and 3D printing novices.
| UV02 UV Curing Machine Parameters | |
|---|---|
| Machine properties | High speed UV curing |
| Curing size | D180xH120mm |
| Machine Size | 330×300×695mm |
| Machine color | White / Gray |
| Rated Power | 330W |
| Input Voltage | 100-120V~/200-240V~,50-60Hz |
| Adjustable light intensity ratio | 5-100% |
| Curing optional time | 00:01 - 30:00(Max.30min) |
| Way to Control | Touch Control, LED Display |
| UV Lamp Wavelength | 365nm/385nm/405nm |
| Warranty | 12 months manufacturer's warranty |
| Technical Support: | Unlimited lifetime technical support |
A portfolio of state-of-the-art dental resins to create products characterized by their robustness, minimal shrinkage, strong biocompatibility, and resistance to wear.
