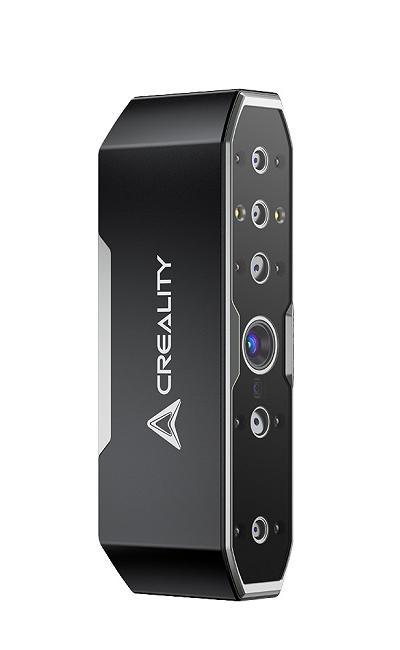

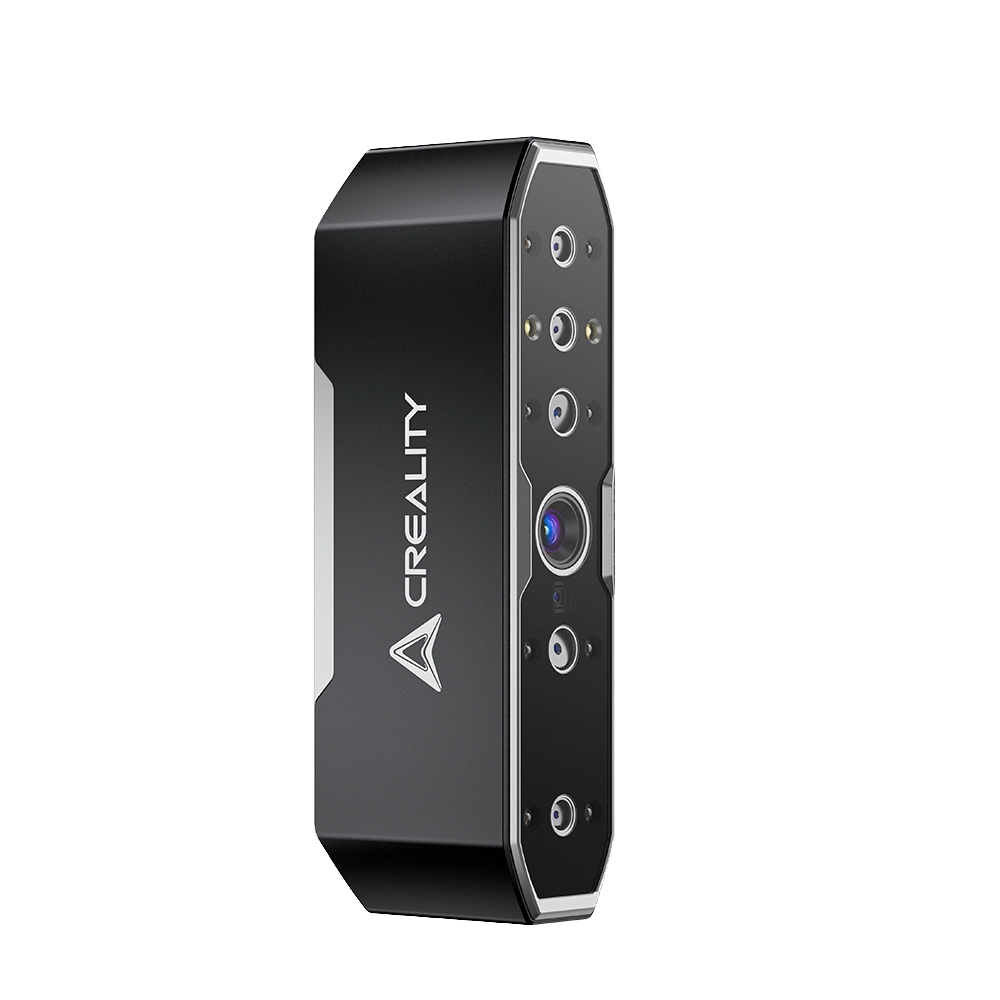

The CR-Scan Otter is a portable handheld 3D body scanner featuring next-generation four-eye infrared structured light technology. It captures highly accurate human body data models, enabling precise alignment with X-ray images and ensuring a better fit for customized orthopedic braces. Ideal for medical and orthotic applications.
| CR-Scan Otter Parameters | |
|---|---|
| Accuracy | Up to 0.02mm@60mm |
| 3D Resolution | 0.05-2mm |
| Scanning Speed | Up to 20fps |
| Min. Scan Volume | 10mm x 10mm x 10mm |
| Single Capture Range | Max. 1350x840mm@1000mm |
| Technology | Infrared structured light |
| Working Distance | 110mm-1000mm |
| Color Mapping | YES |
| Alignment Modes | Geometry/Marker/Texture |
| Output Format | OBJ/STL/PLY |
| IMU | YES |
| Color Supplemental Light | 2 white LEDS |
| Marker Recognition Enhancement | 8 infrared LEDs |
| Laser Safety | Class I (eye safe) |
| System Support | Windows/macOS |
| Wireless Scanning | Supported |

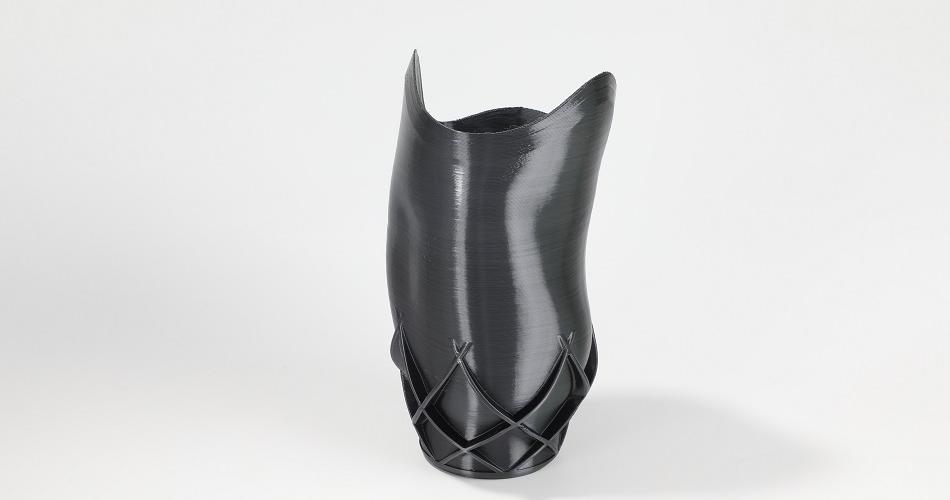

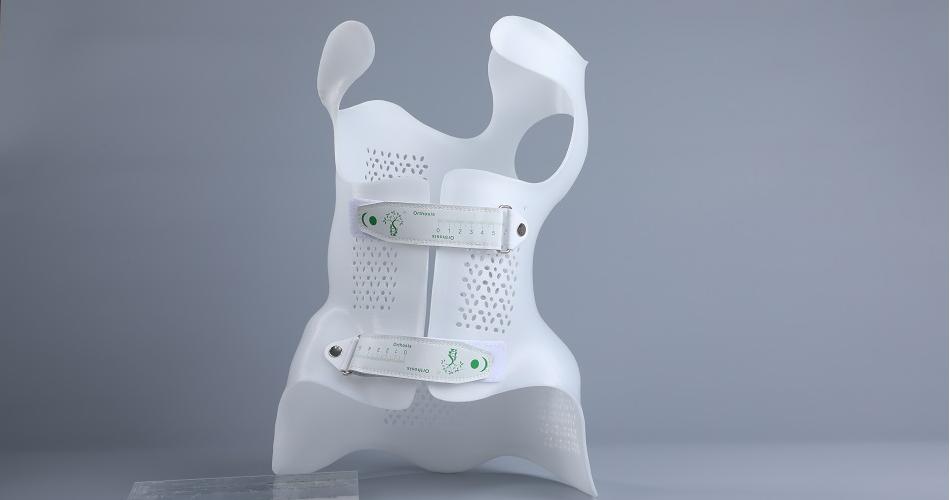

Enhance patient care with versatile 3D printing solutions—ranging from orthotics to prosthetics—customized to meet each patient’s unique needs.
