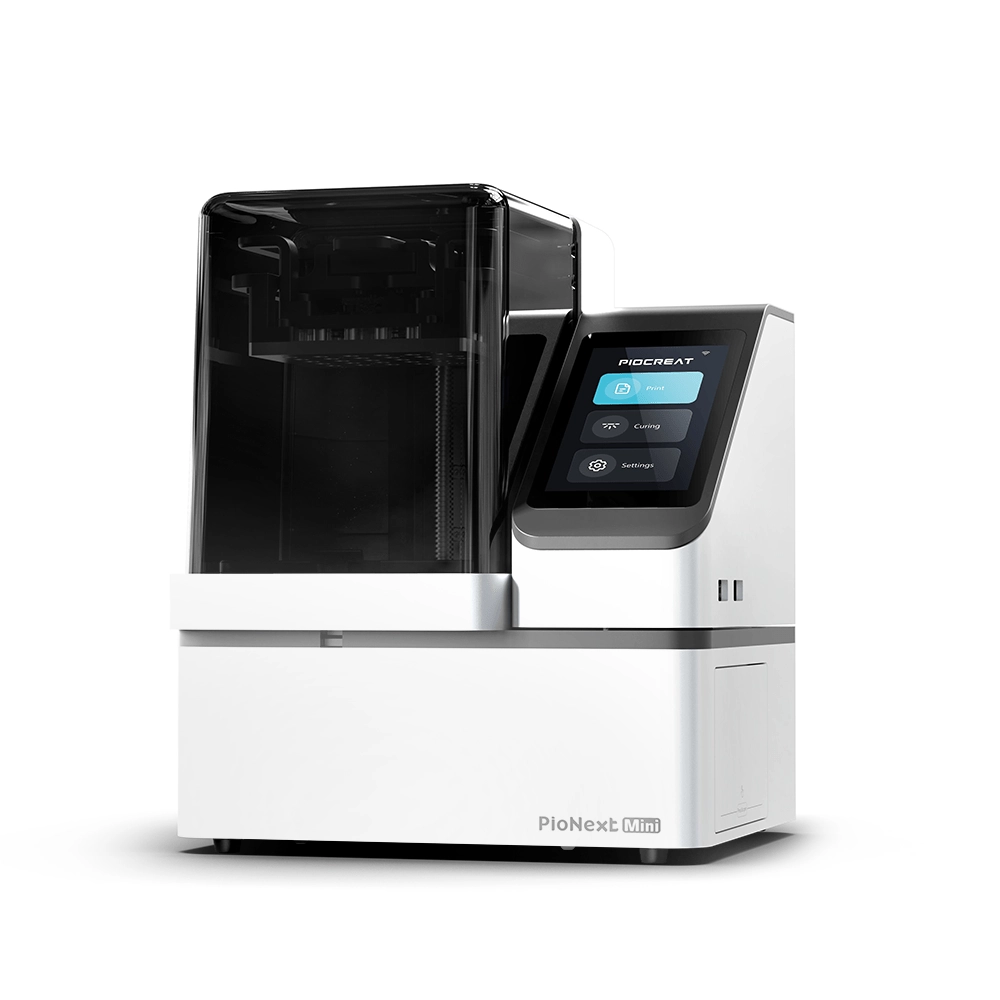

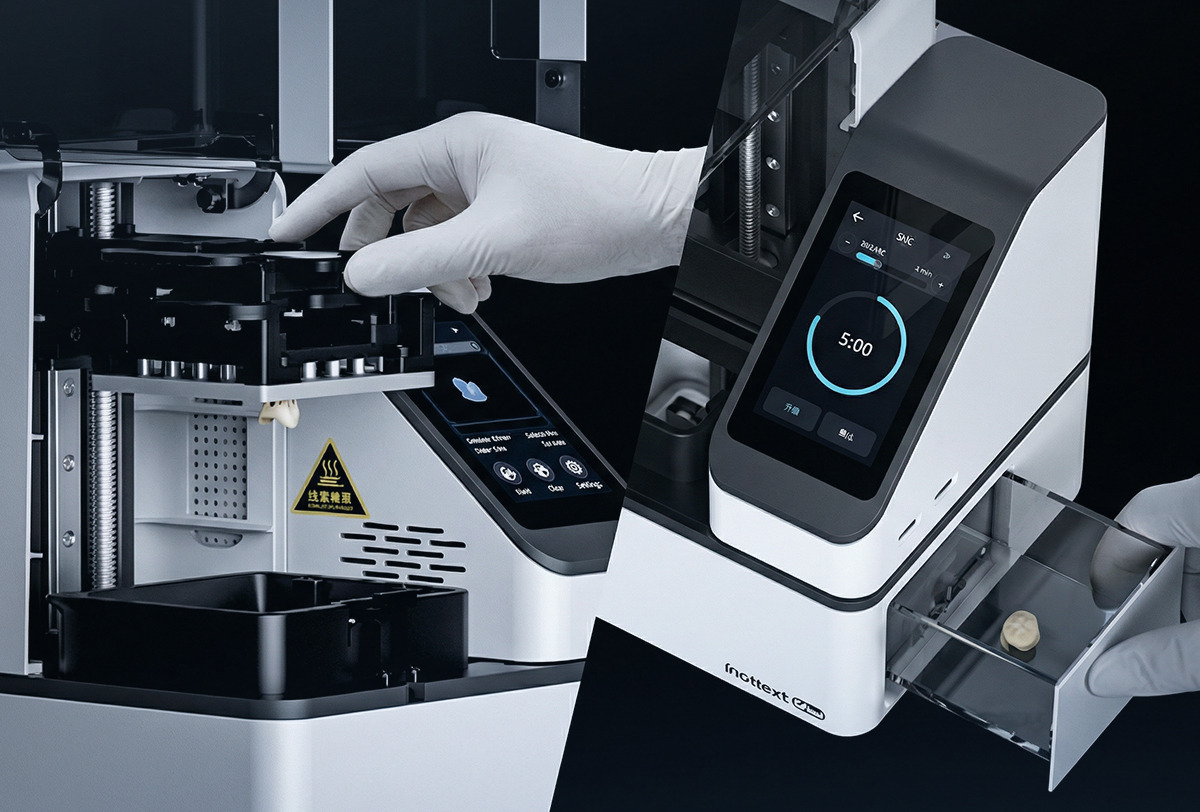

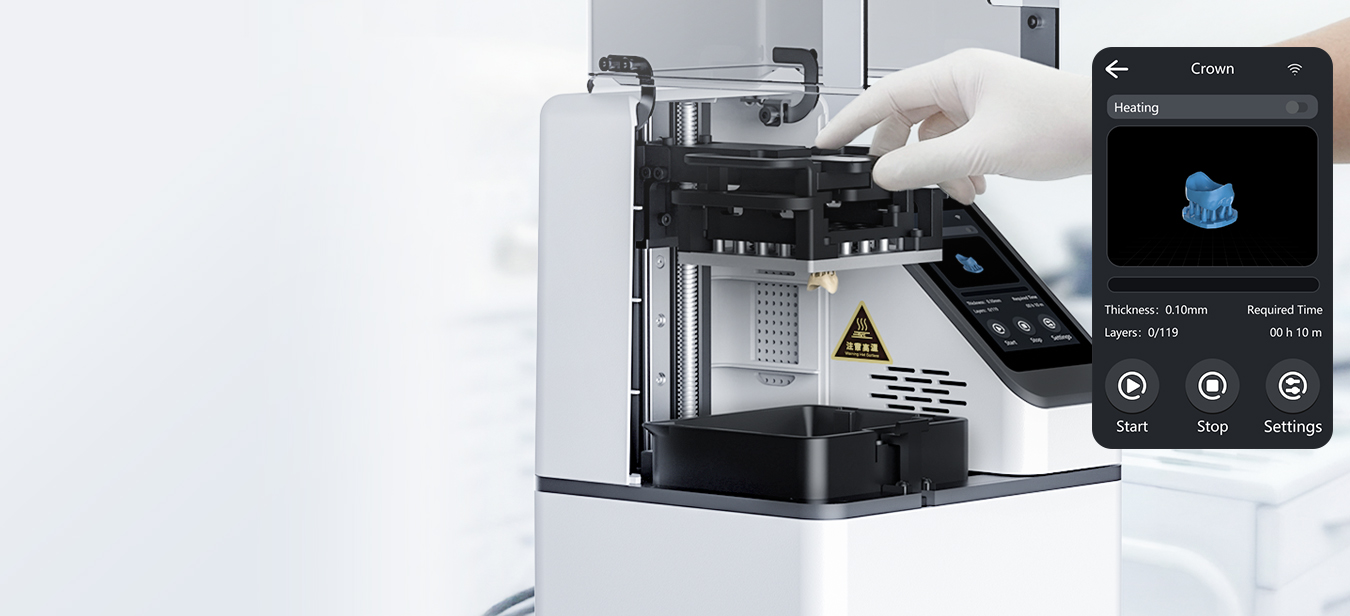

Intuitive touchscreen enables simple, straightforward operation, allowing easy control with minimal setup or training.

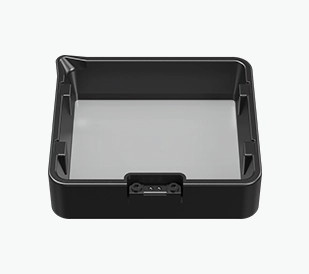

PioNext Mini comes standard with two resin vats offering versatility and consistent results across multiple applications.

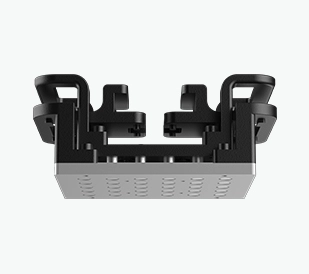

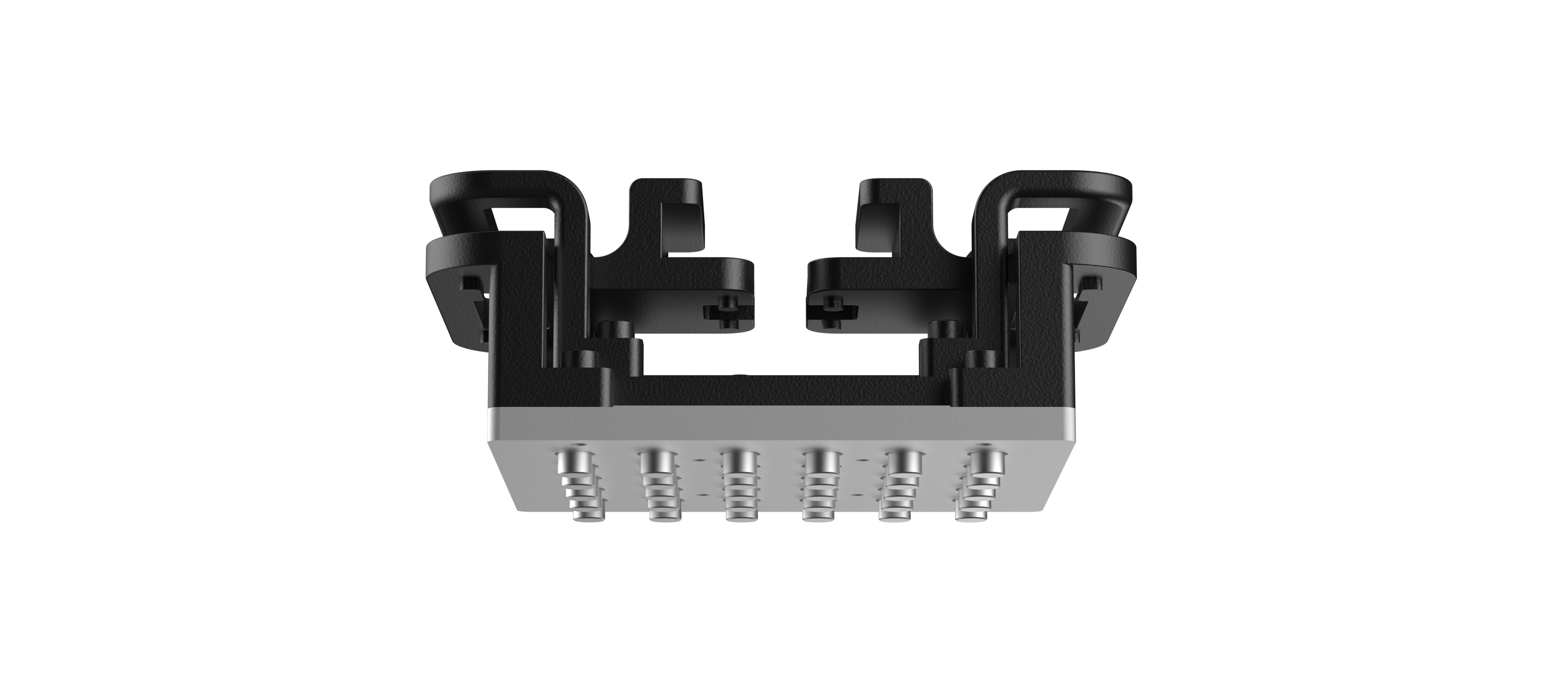

Leveling-free design uses four-point alignment, enabling instant printing without complex setup or extra learning.
The printing environment can up to 35°C for improved resin flow and smoother layers. This reduces visible layer lines and enhances print quality.

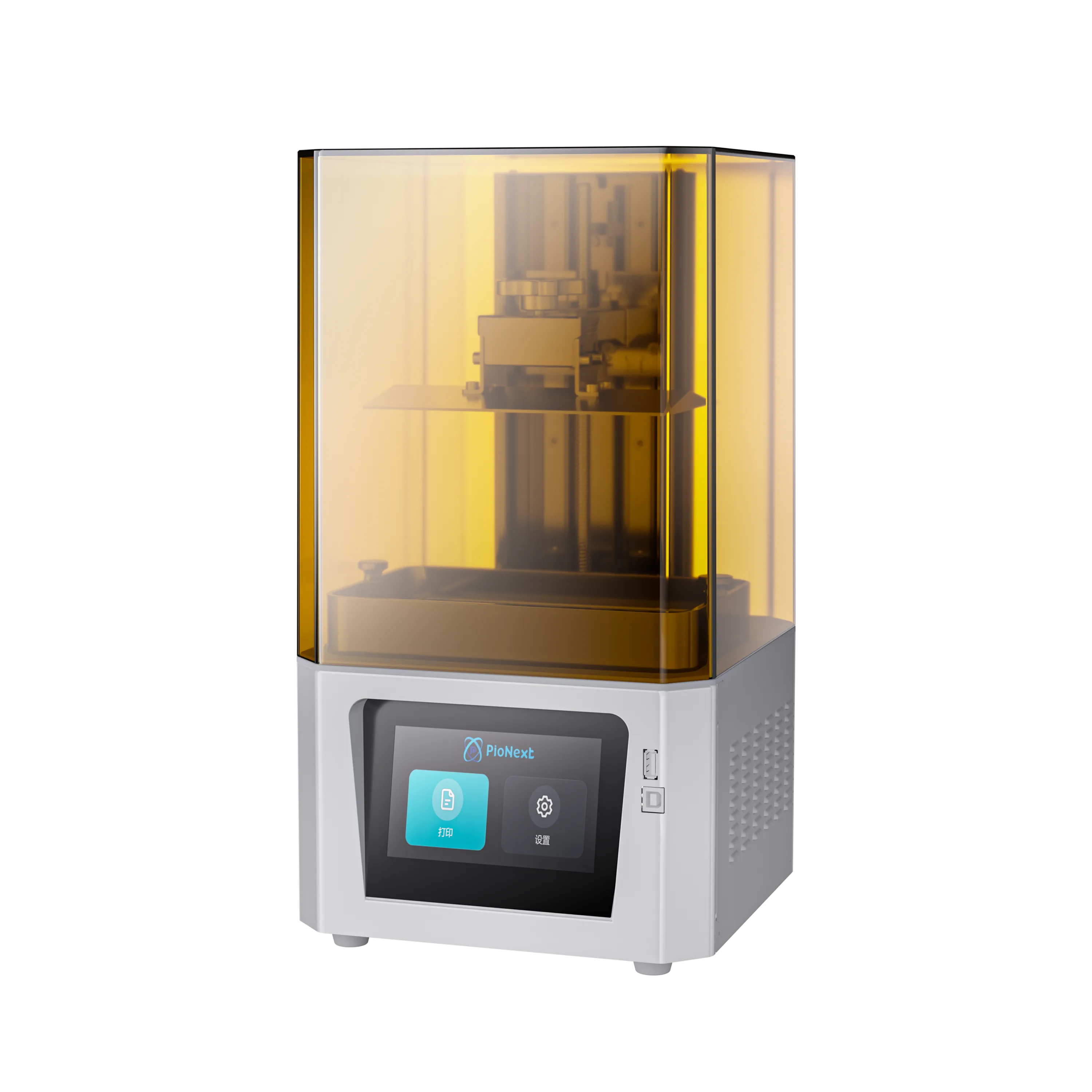

| PioNext Mini 3D Printer Parameters | |
|---|---|
| Molding tech | LCD |
| Printing Size | 80x70x80mm |

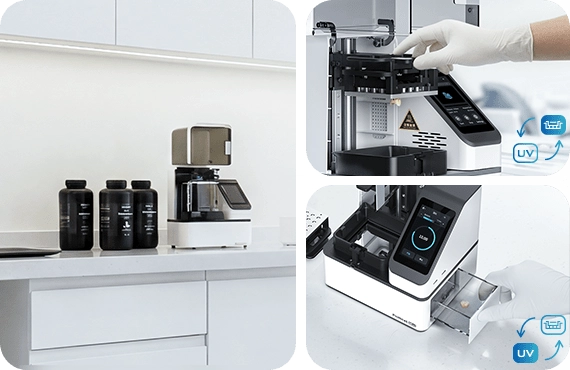

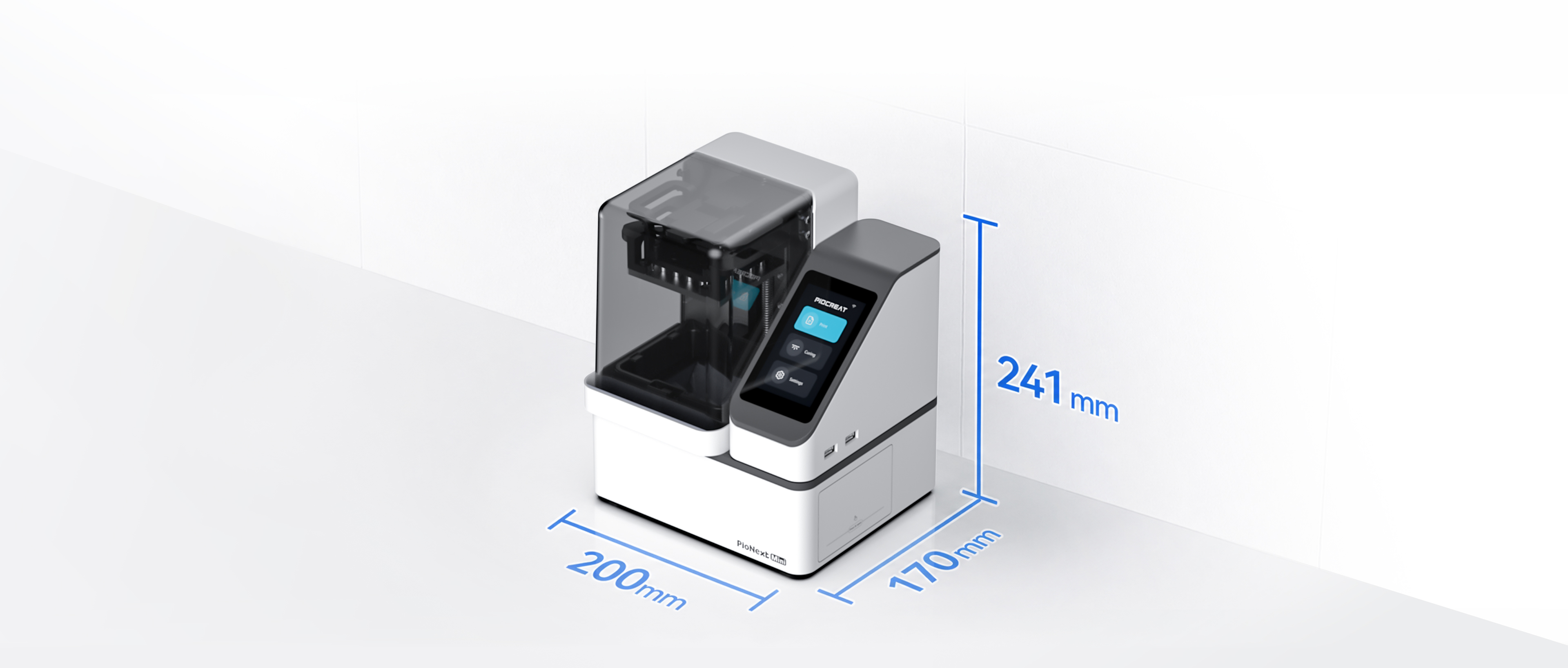

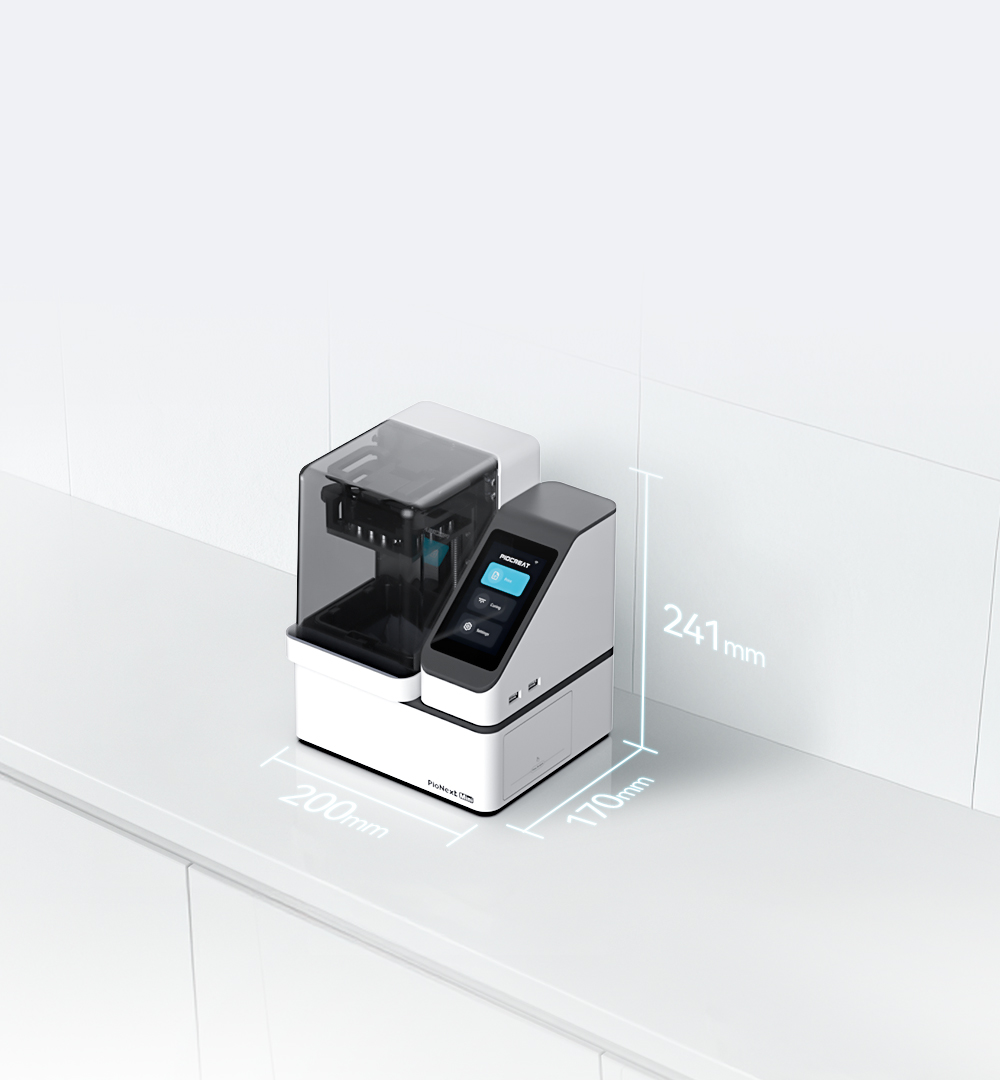

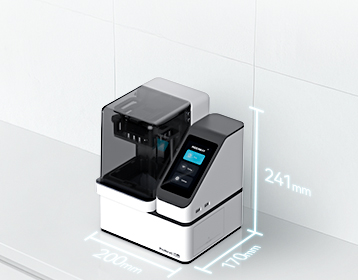

| Machine Size | 200x170x241mm |
| Package Size | 310mm×307mm×340mm |

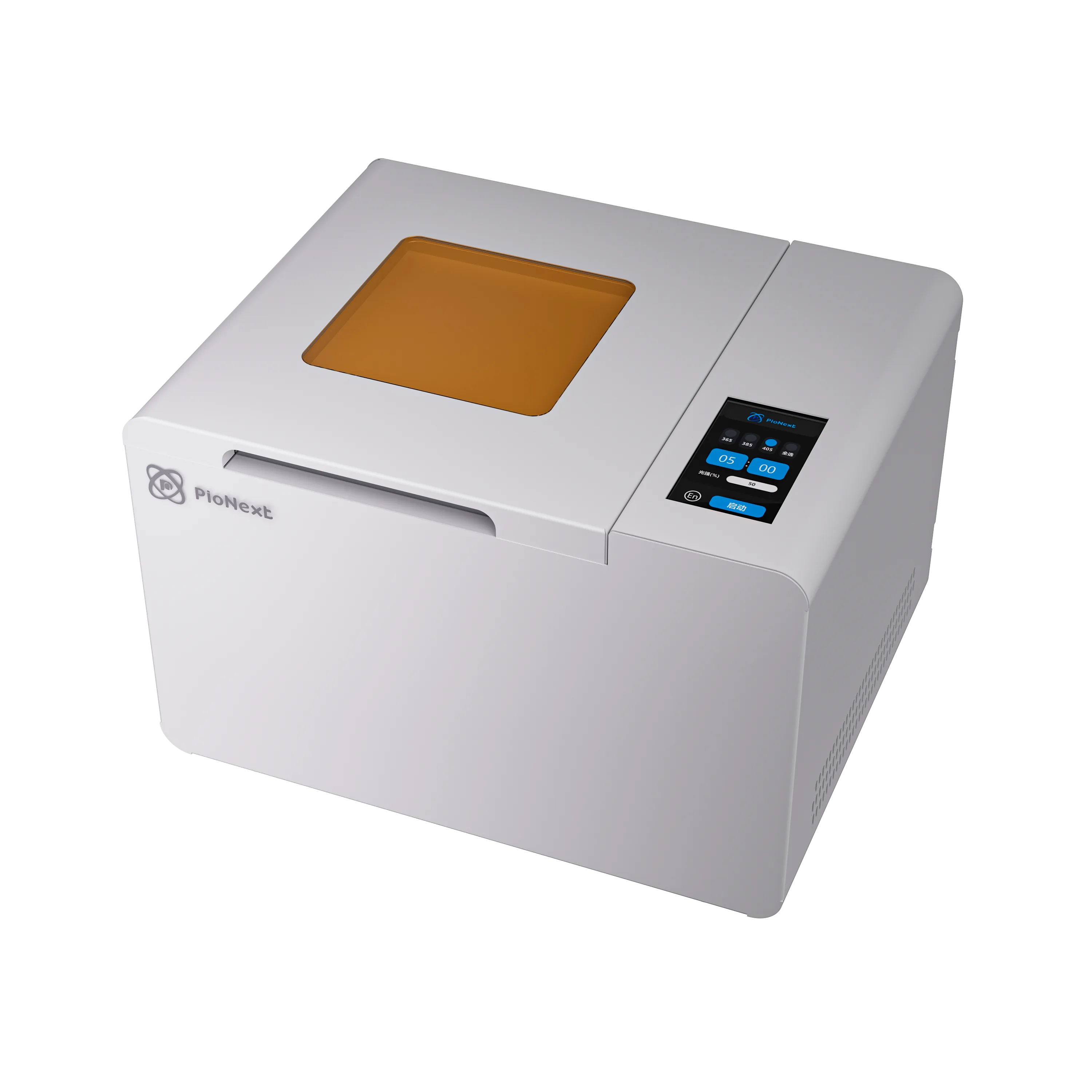

| Curing Size | 76.5mm×72.5mm×37mm |
| Light Intensity(Curing) | 150mW/cm2,405nm |

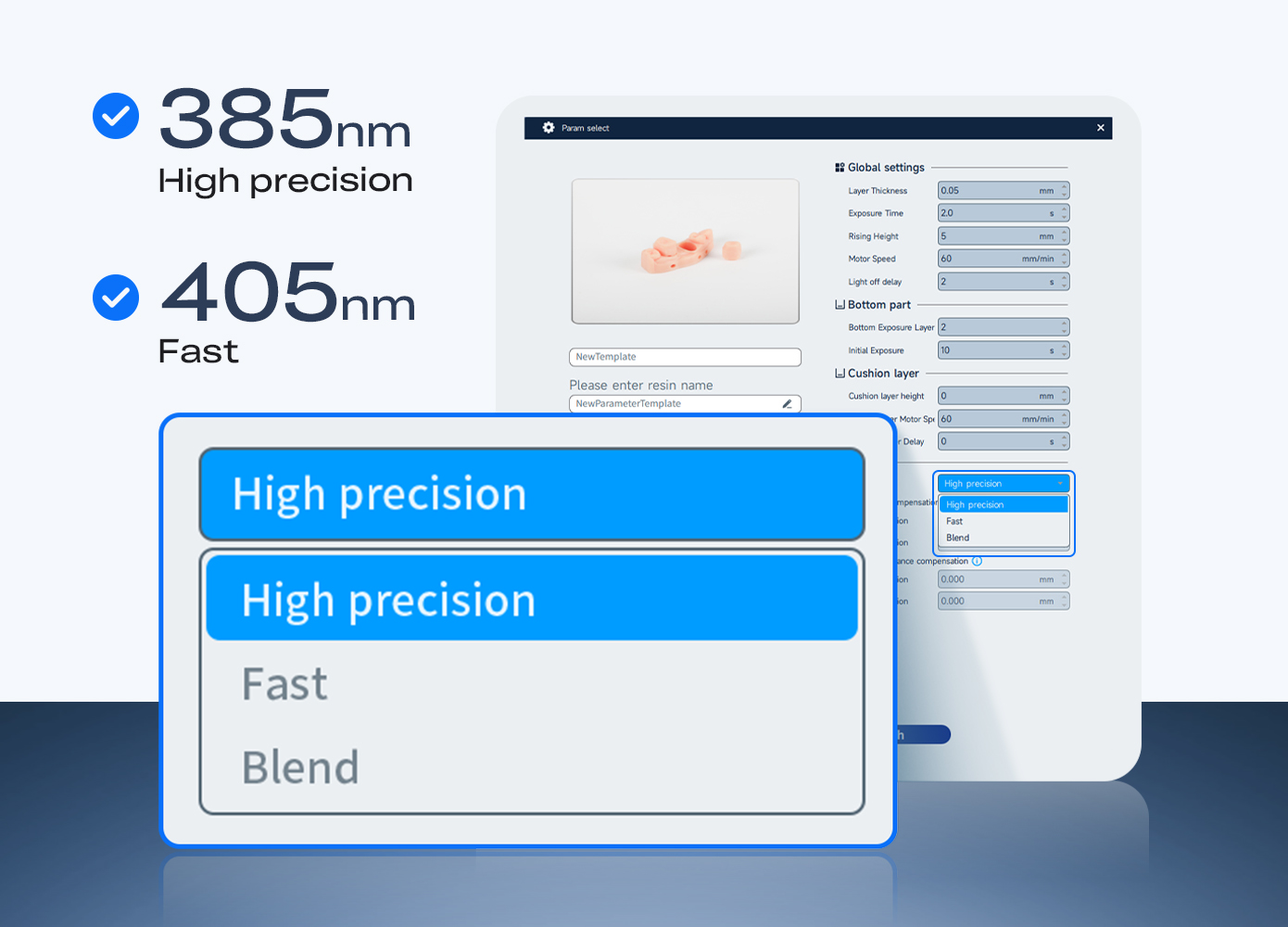

| Light Source Wavelength | 385nm、405nm |
| XY axis accuracy | 18μm |

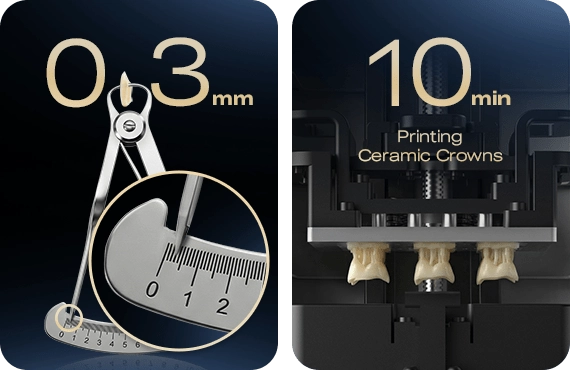

| Print speed | Max.60mm/h |
| Print layer thickness | 0.01-0.1mm |
| Touch screen | 3.97-inch Capacitive Color Touch Screen |
| Resolution | 9K ( 8520*4320) |
| Data Transmission | USB/WIFI |

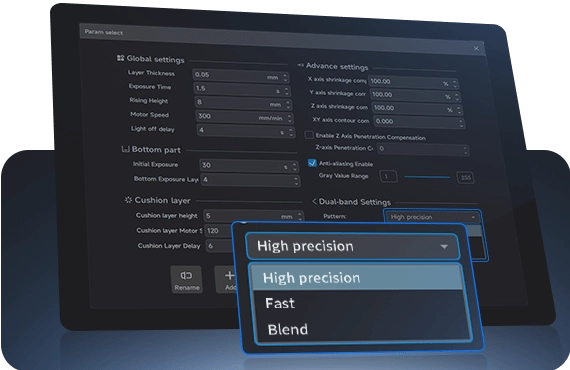

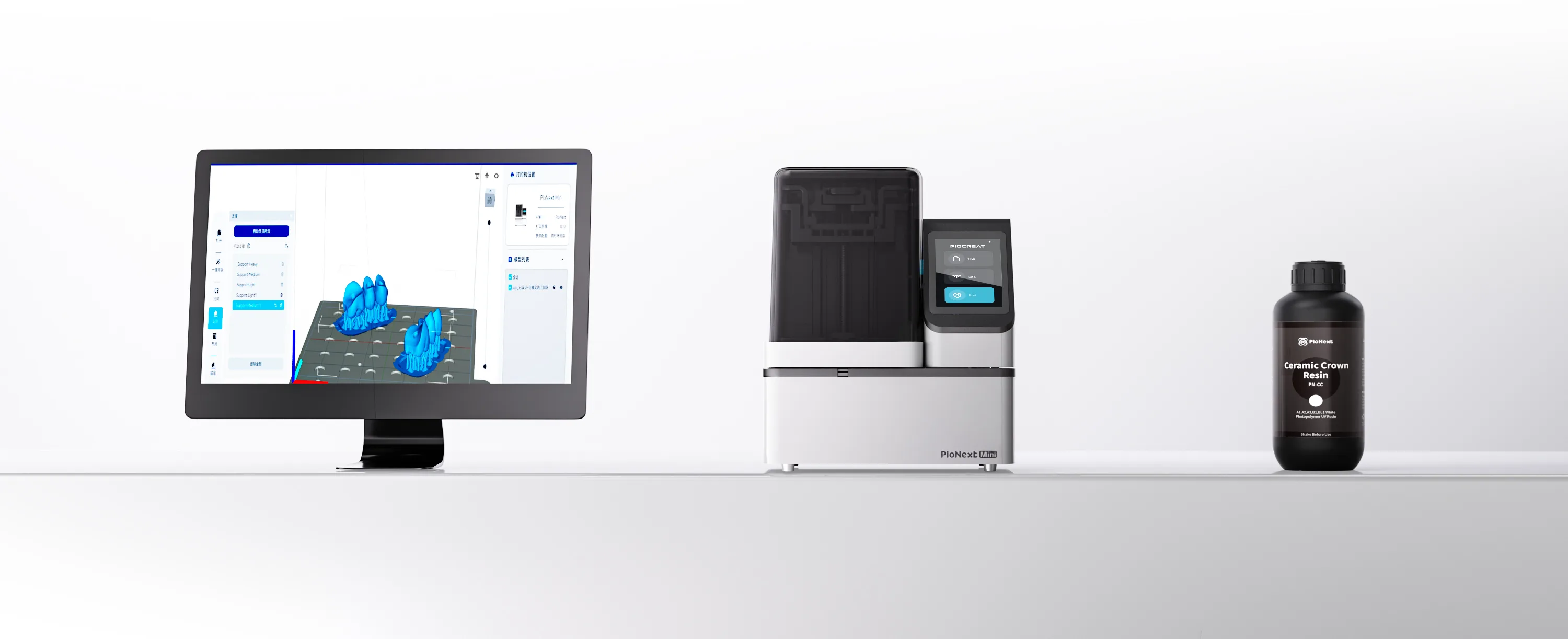

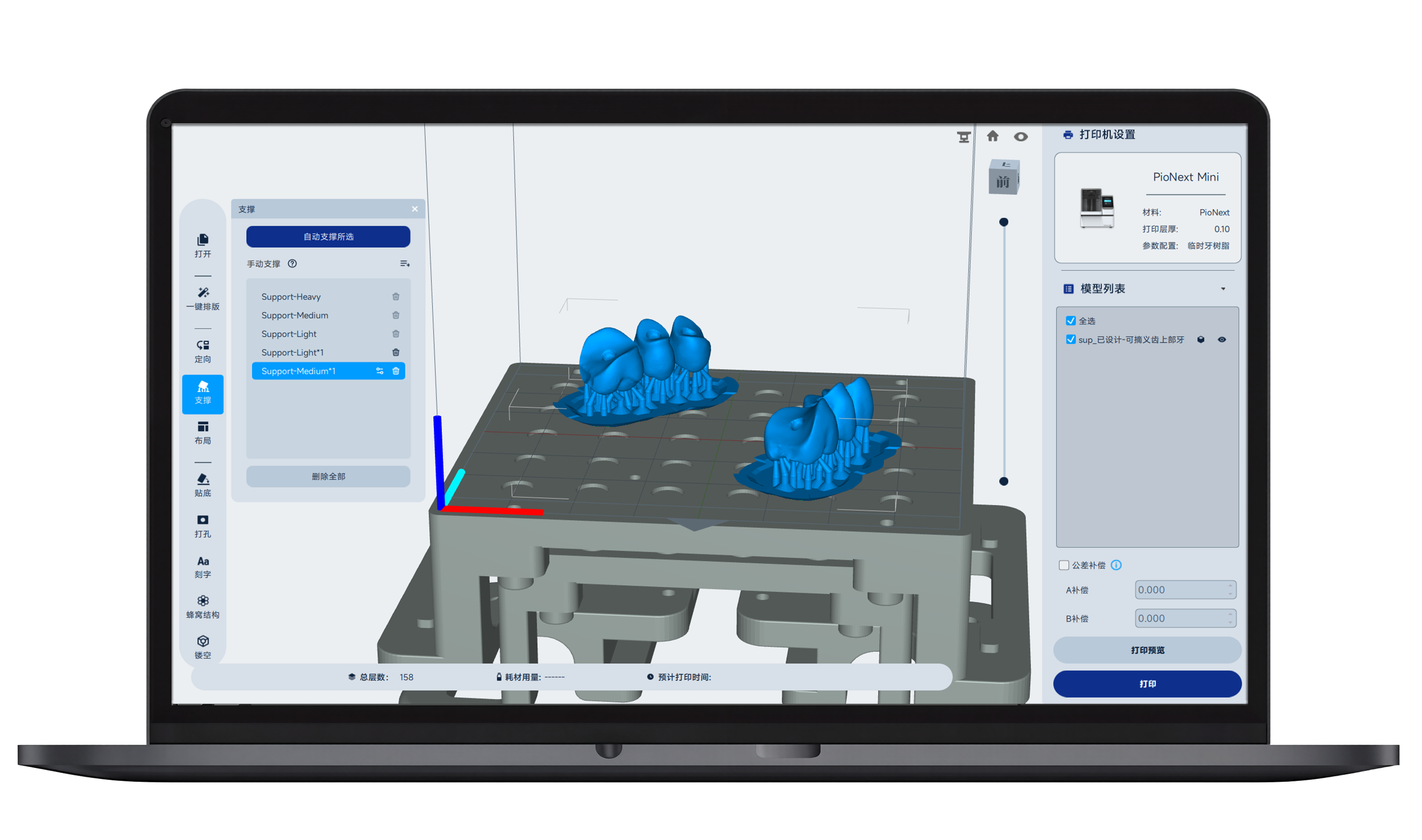

| Slicer software | PioCreat Box/CHITUBOX Dental |
| Input Voltage | 100-240V~. 50/60Hz |
| Power | 120W |
| Material Compatibility | Enjoy a limitless selection of top materials |
| Warranty | 12 months manufacturer's warranty |
| Technical Support: | Unlimited lifetime technical support |

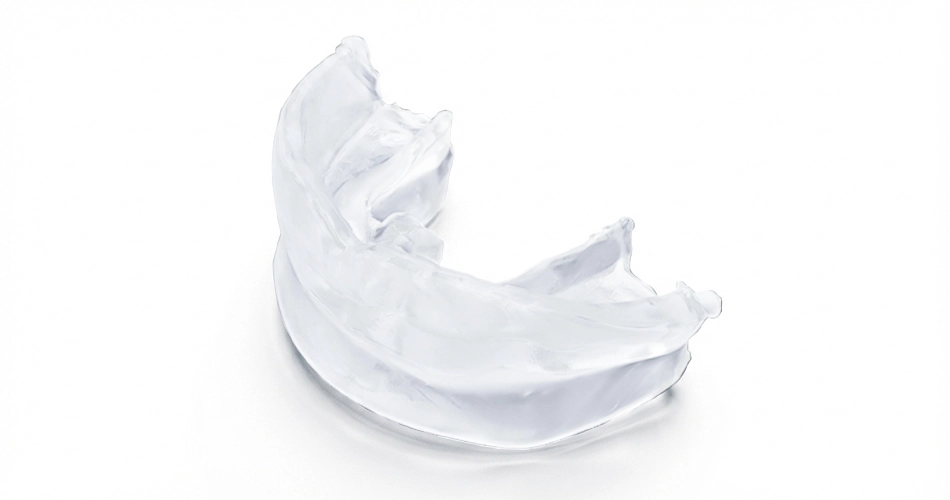

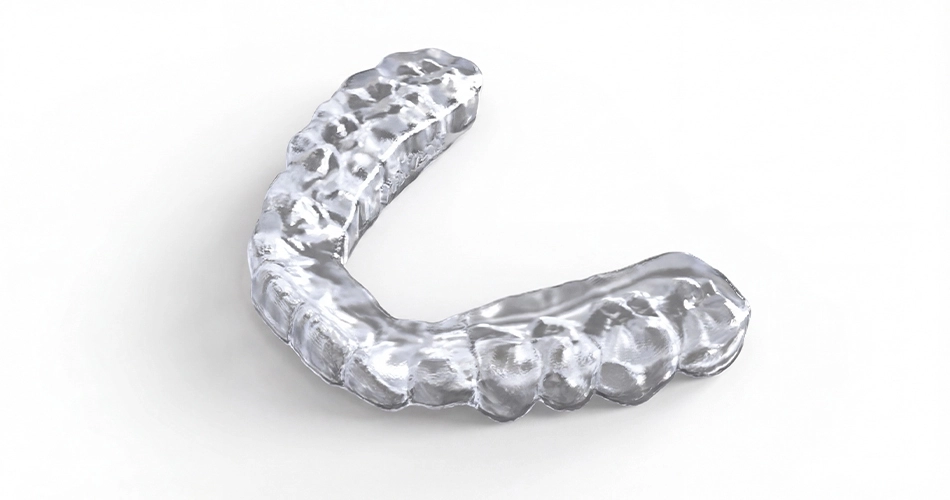

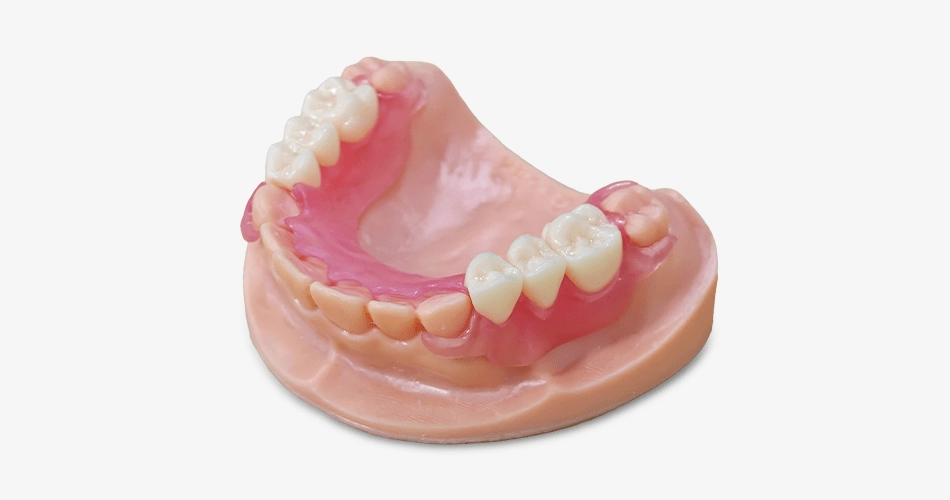

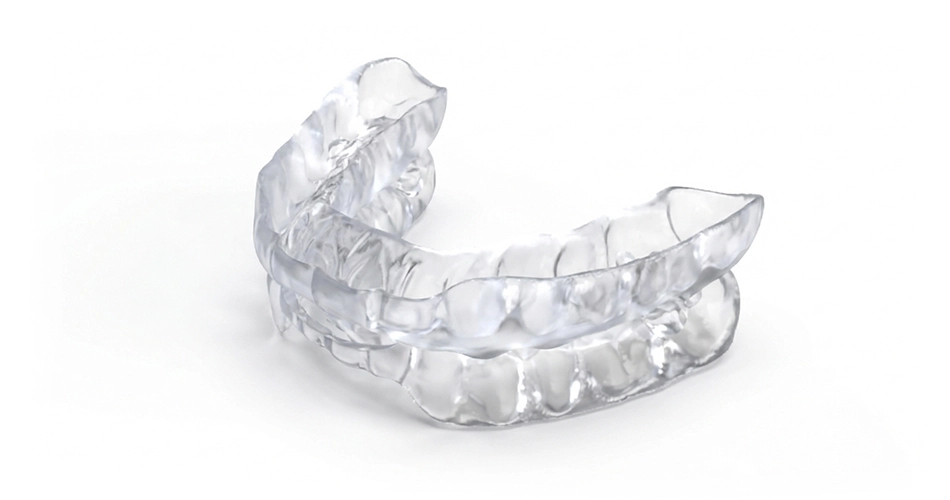

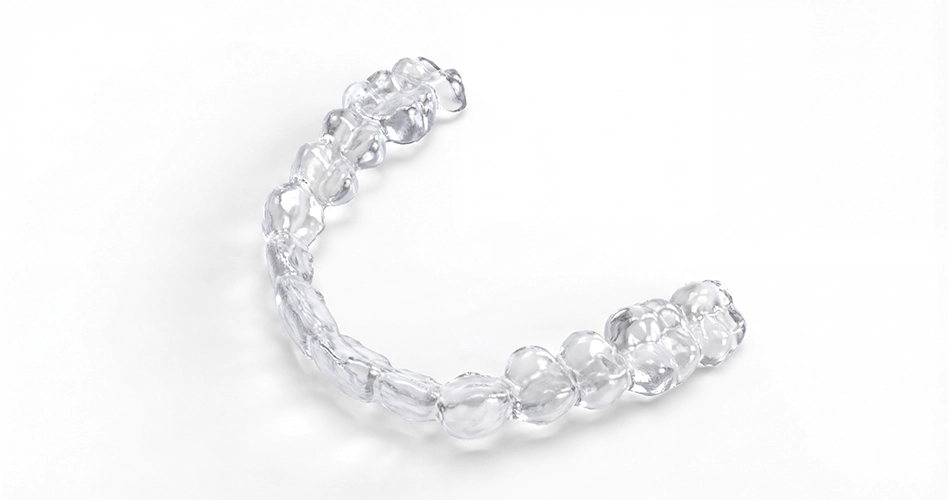

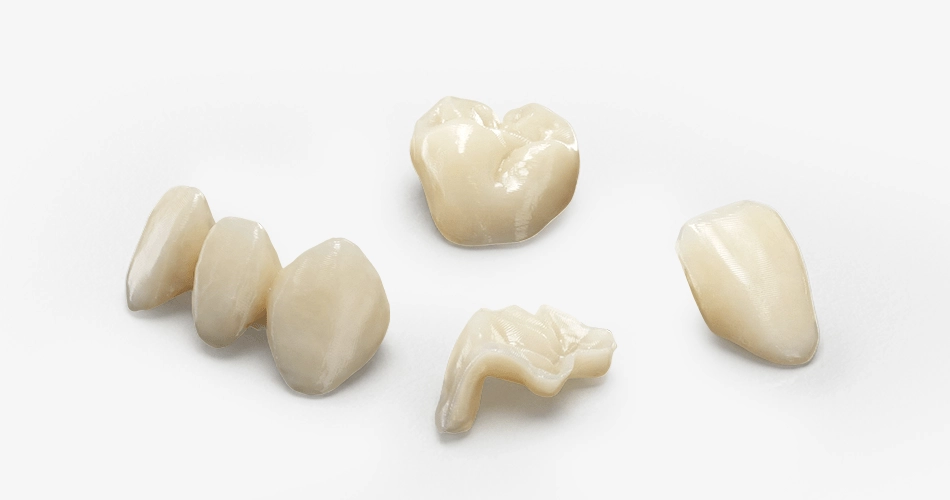

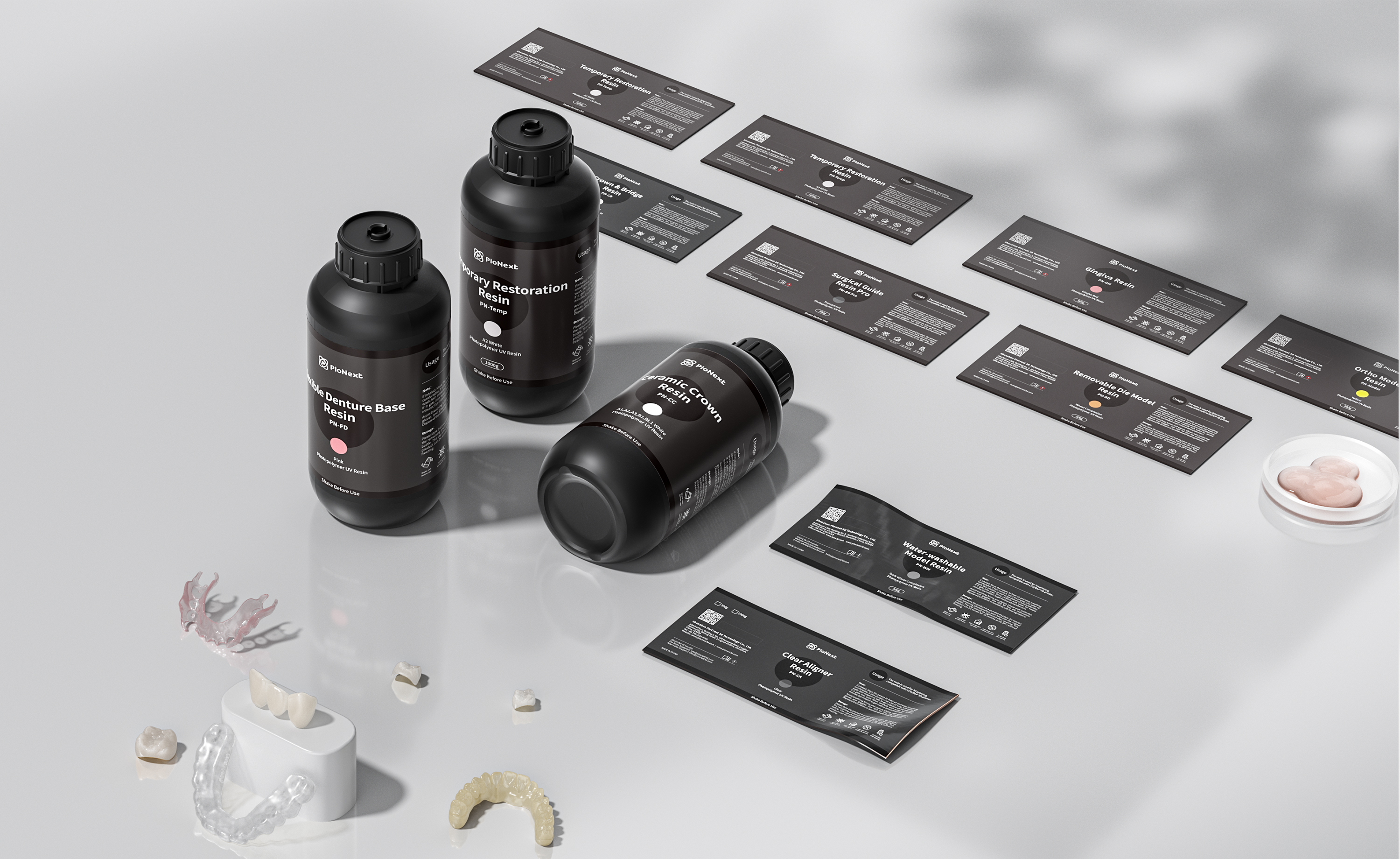

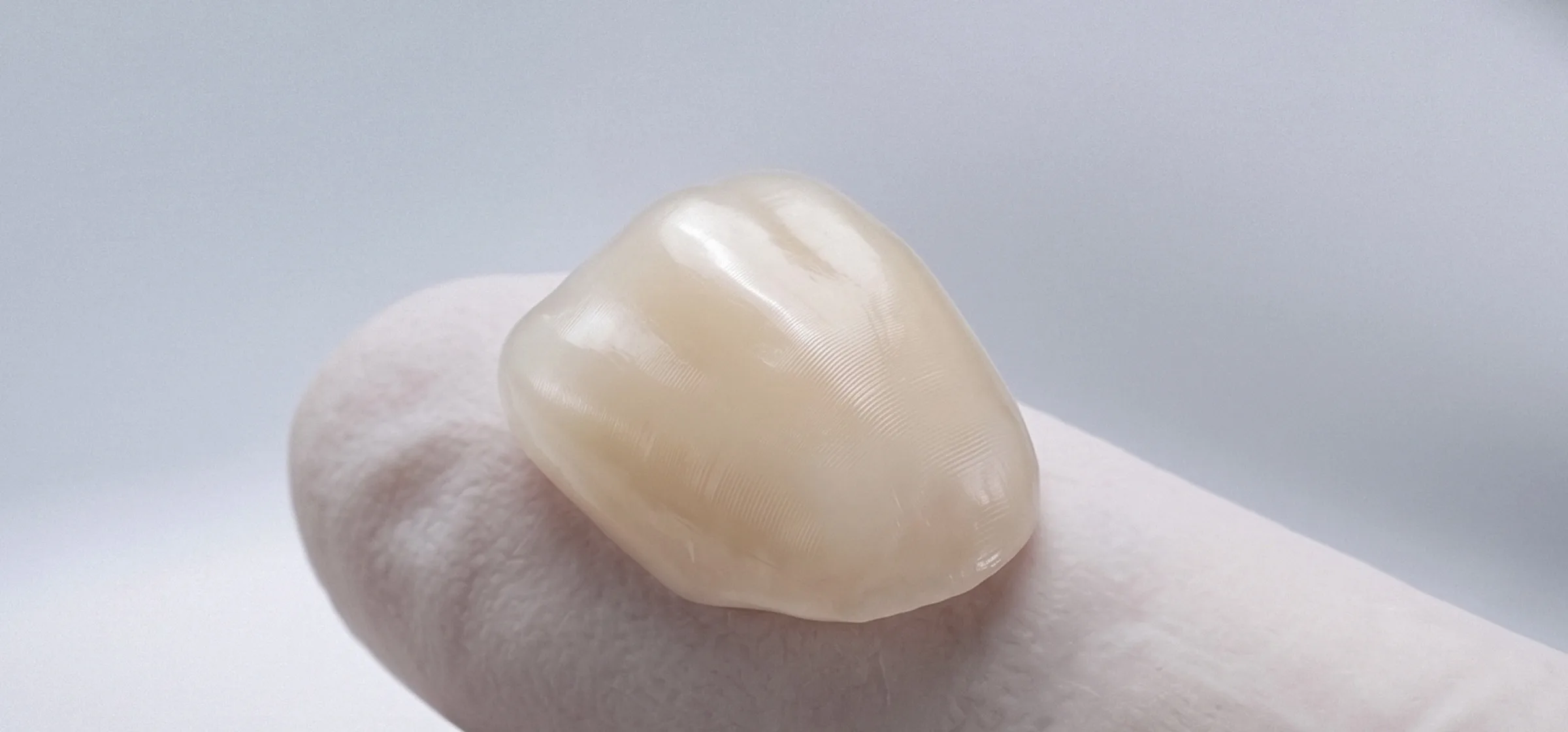

A portfolio of state-of-the-art dental resins to create products characterized by their robustness, minimal shrinkage, strong biocompatibility, and resistance to wear.
