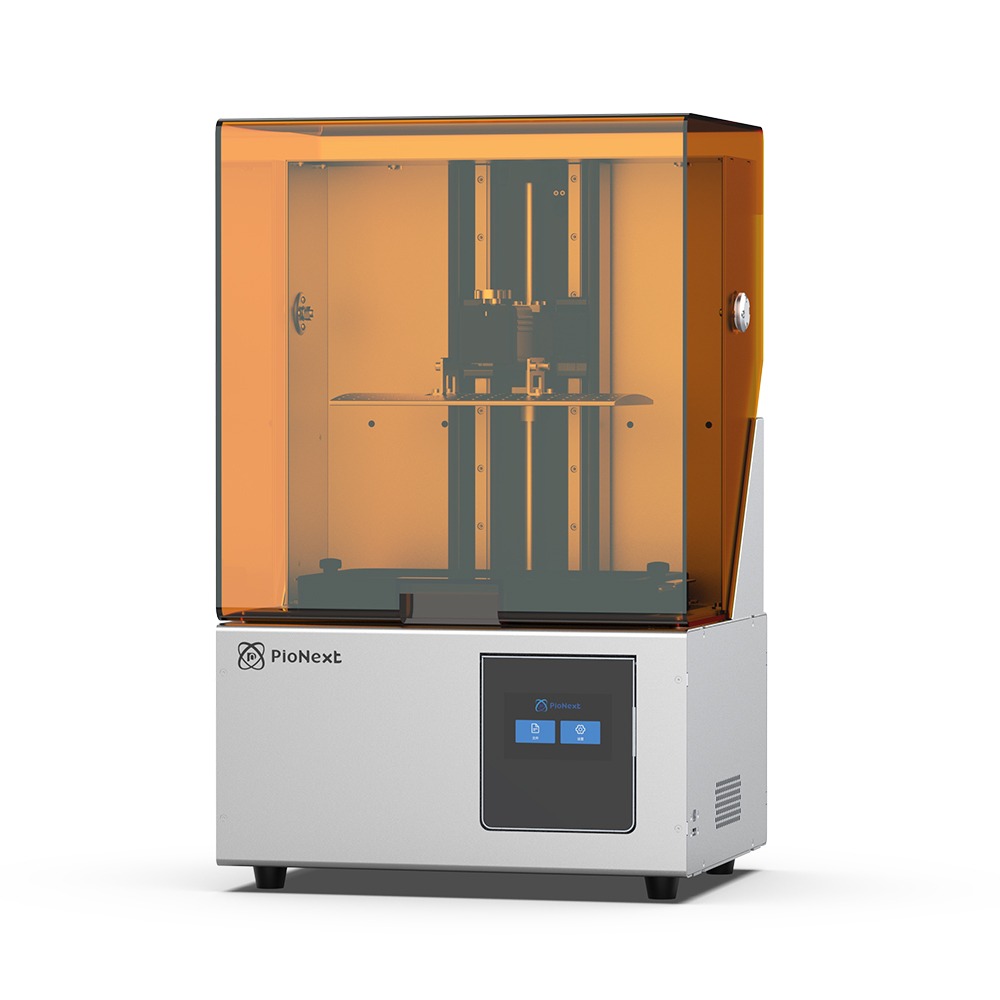

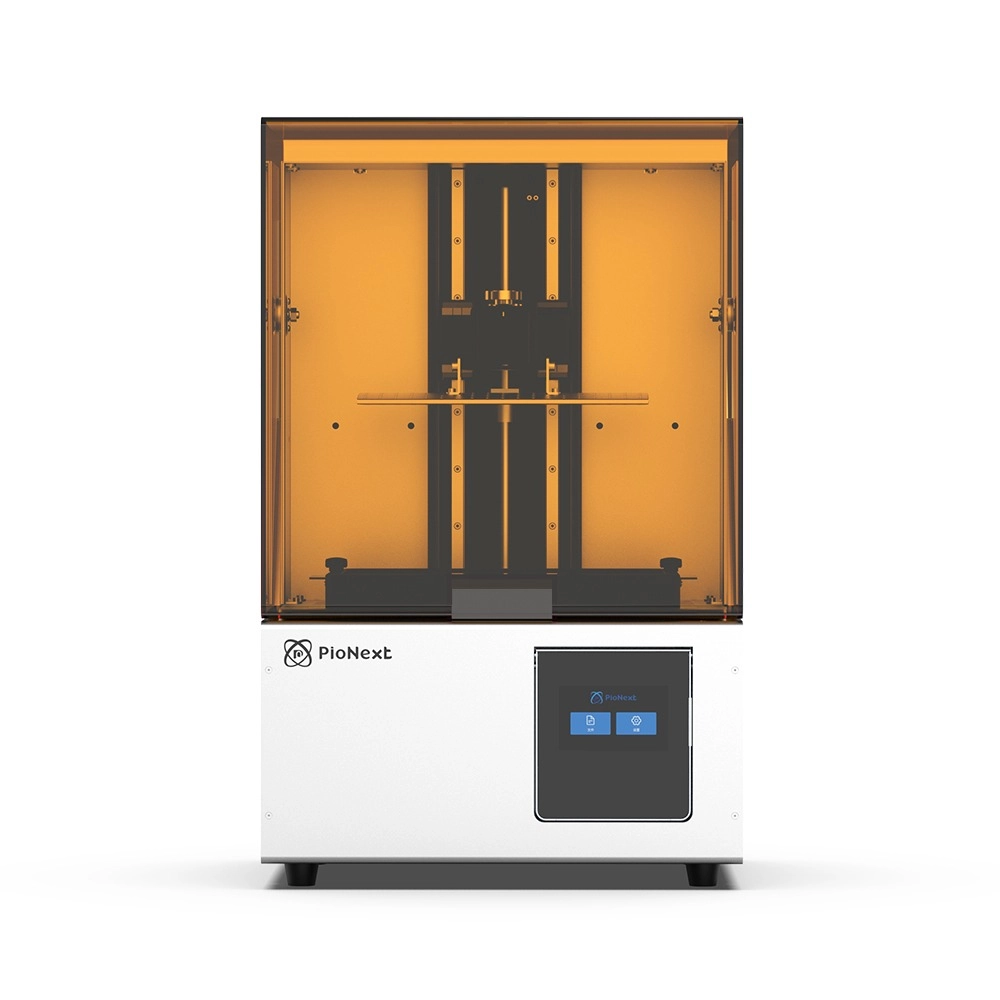

D136 LCD printer

D136

Large-scale Resin 3D Printer

The ultimate solution for professionals seeking unparalleled precision and reliability in large-scale resin printing. From crafting dental prosthetics with utmost precision to designing intricate jewelry pieces or manufacturing industrial parts, our Large Resin 3D Printer is versatile enough to meet the demands of various applications.

Key Features

46μm Pixel Size

High Speed Release Film

LCD Integral Light Source

Stable Z-axis Structure

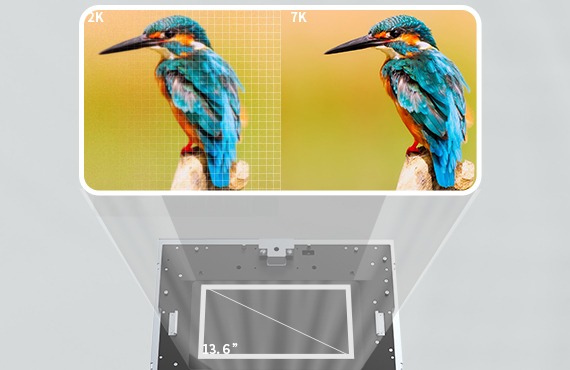

13.6" 7K LCD Screen

This large resin 3D printer boasts an impressive 13.6″ 7K (6480 x 3600 px) LCD screen with a 46 µm pixel size that ensures every layer of your model is sculpted with the utmost precision. The exceptional resolution captures the finest details, making it perfect for intricate dental appliances, detailed jewelry pieces, and complex industrial components.

46μm pixel size

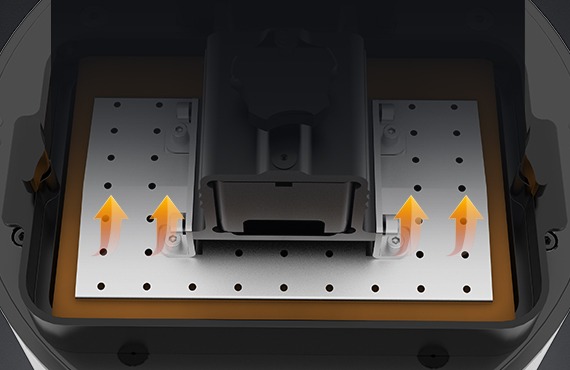

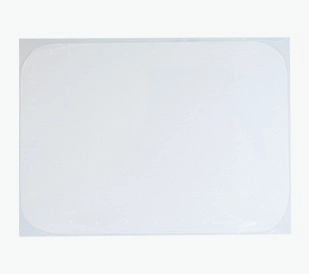

High Speed Release Film

Equipped with a high-speed release film, this printer offers less release resistance, which not only boosts the printing speed but also significantly enhances the success rate of your prints. Say goodbye to failed prints and wasted materials, and hello to smooth, efficient production runs.

High-Speed Release Film

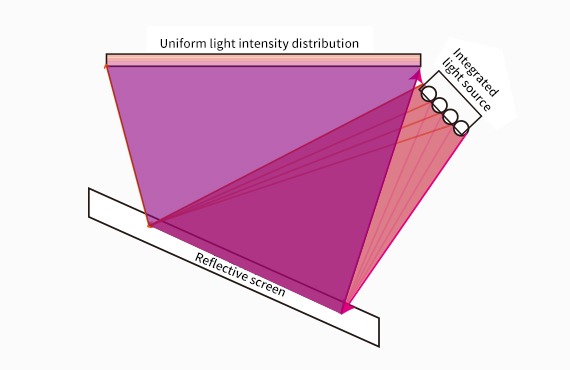

LCD Integral Light Source

The D136 employs a state-of-the-art LCD Integral light source, elevating the uniformity and lifespan of the light source far beyond traditional offerings. With light uniformity reaching up to an astonishing 95%, this integral light source adeptly merges the benefits of DLP and conventional LCD technologies. The result is a highly cost-effective solution that does not compromise on quality or efficiency.

C01 LCD Integral light source

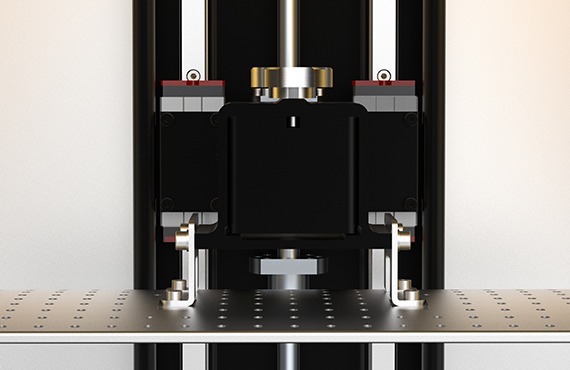

Stable Z-axis Structure

Stability is key for achieving flawless prints, and the D136 7K’s robust Z-axis structure provides just that. The integration of dual linear guide rails coupled with a precision ball screw ensures smooth and consistent layering. This rock-solid foundation minimizes vibrations and maintains the positional accuracy throughout the printing process, even at the maximum build height.

Stable Z-axis structure

Why Choose Our Professional Resin 3D Printer?

Speed

PioCreat's printers offer fast, accurate, and clear printing with quick print times and a high success rate.

Precision

PioCreat devices print with high resolution to improve the dimensional precision of each item.The specially formulated.

Cost-Effectiveness

PioCreat's products incur lower ownership costs, producing more items with less material compared to competitors.

Easy-to-use

Engineered for simplicity, our printer ensures easy setup, effortless use, and minimal maintenance, ideal for both experts and 3D printing novices.

D136 3D Printer Parameters
Molding techLCD
Printing Size298×165×300mm
Machine Size480×376×770mm
XY axis accuracy46μm
Print speed60mm/h
Print layer thickness0.01-0.1mm
Printing screen13.6 inch, 7k monochrome
Resolution6480*3600
Z-axis typedouble linear guide + ball screw
LanguageSupport 13 languages
LCD screen life2000 hours
Slicer softwarePioCreat Box(Win7 or above X64,Mac)
Power RequirementsAC100-240V
Material CompatibilityEnjoy a limitless selection of top materials
Warranty12 months manufacturer's warranty
Technical Support:Unlimited lifetime technical support

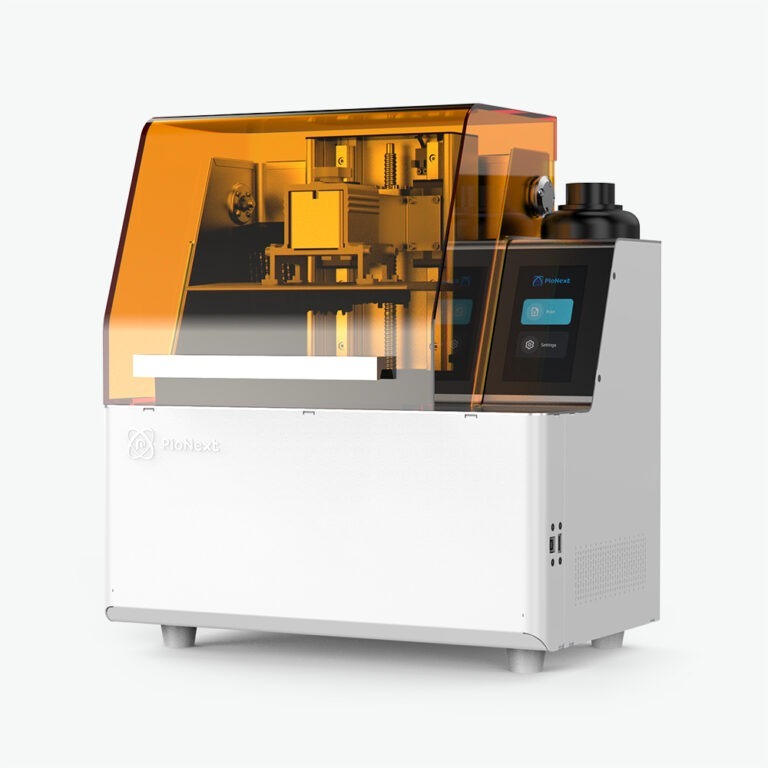

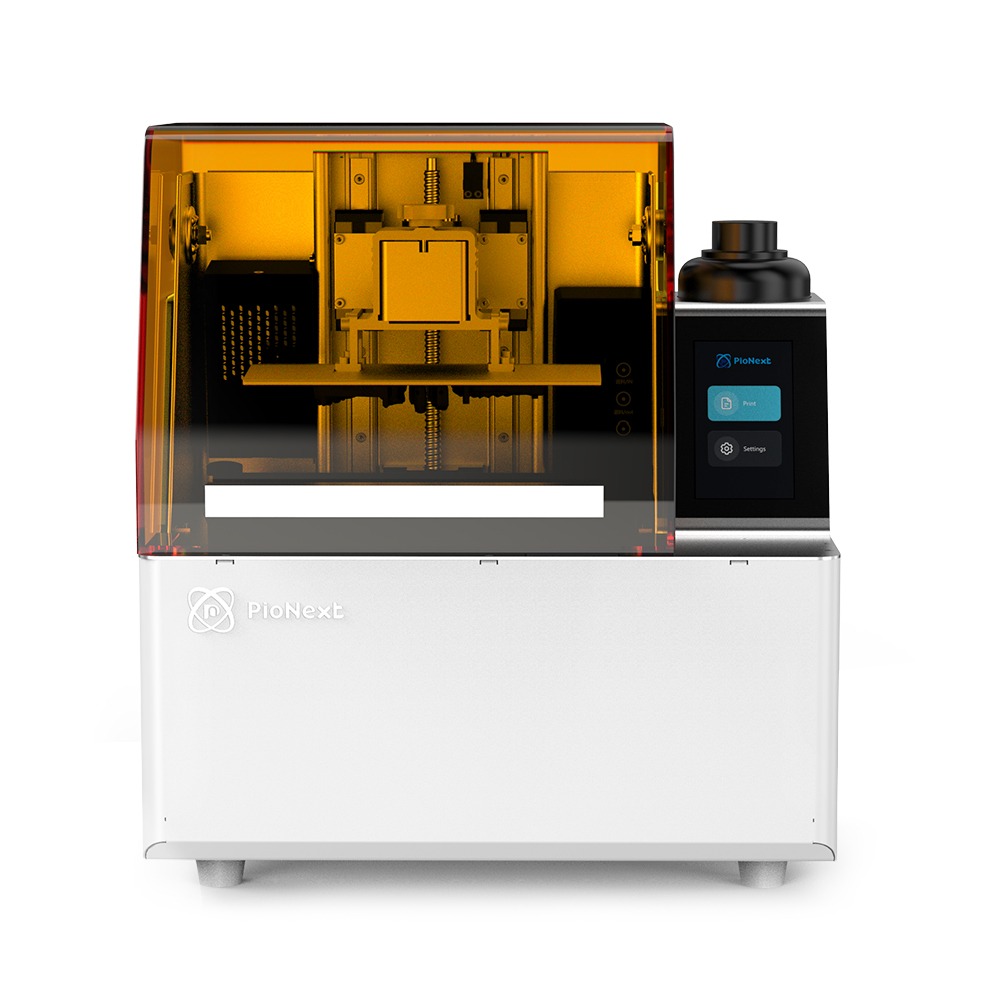

DJ89 PLUS
DJ89 PLUS
Top cost-effective resin 3D Printer for dental and jewelry industries with 8K LCD for unmatched print clarity and detail.
  • Molding tech
  • LCD
  • Printing speed
  • 60mm/h
  • Printing size
  • 192x120x100mm
  • Machine size
  • 467x290x500mm
  • Layer thickness
  • 0.025-0.1mm
  • XY axis accuracy
  • 29μm
D136
D136
large LCD 3D Printer excels in producing dental prosthetics, intricate jewelry, and industrial parts with high precision.
  • Molding tech
  • LCD
  • Printing speed
  • 60mm/h
  • Printing size
  • 298×165×300mm
  • Machine size
  • 480×376×770mm
  • Layer thickness
  • 0.01-0.1mm
  • XY axis accuracy
  • 46μm

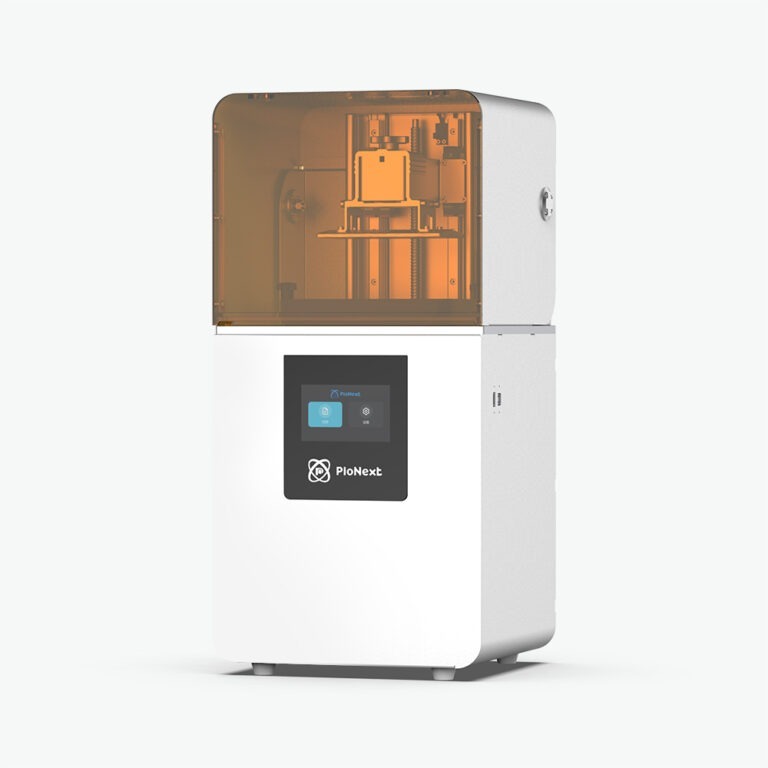

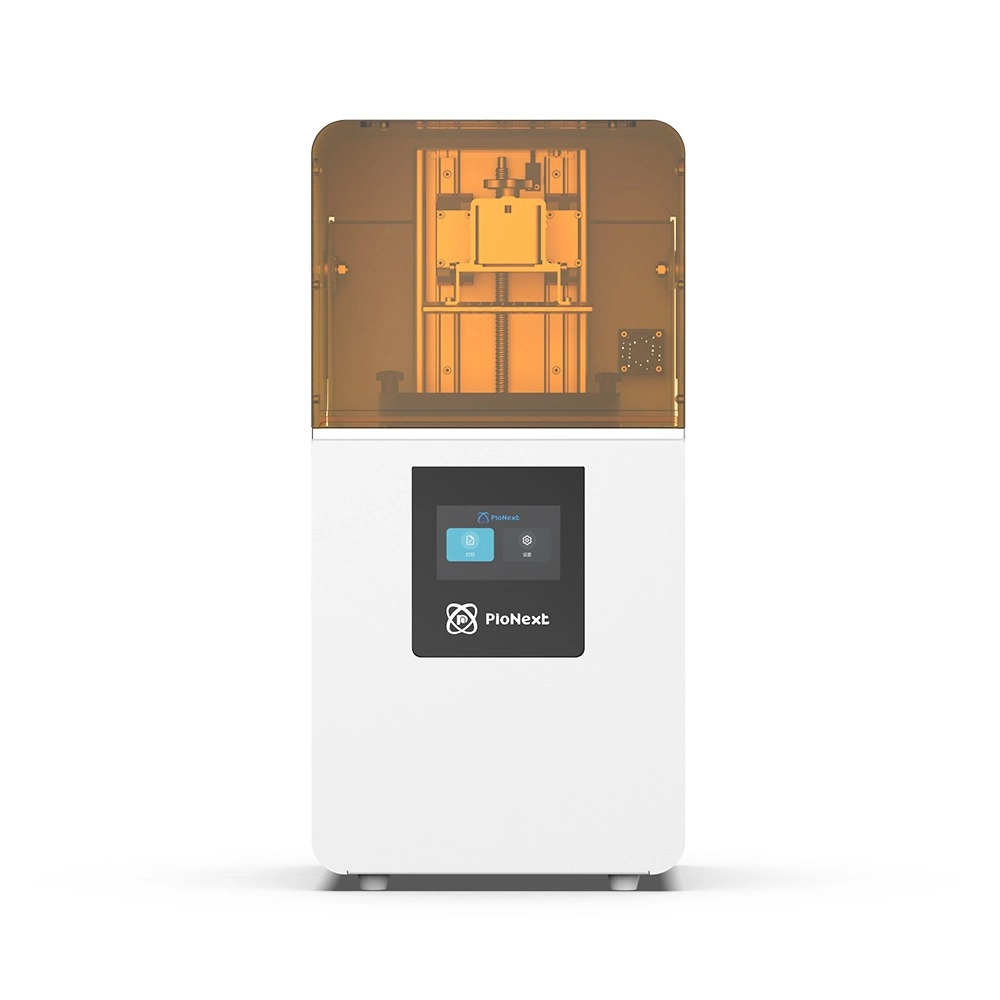

D150
D150
DLP 3D printer, excels in dentistry and more with unmatched productivity, speeds up to 80mm/h, ensuring quick, high-quality prints.
  • Molding tech
  • DLP
  • Printing speed
  • 80mm/h
  • Printing size
  • 144×81×100mm
  • Machine size
  • 330×300×675mm
  • Layer thickness
  • 0.025-0.1mm
  • XY axis accuracy
  • 75μm

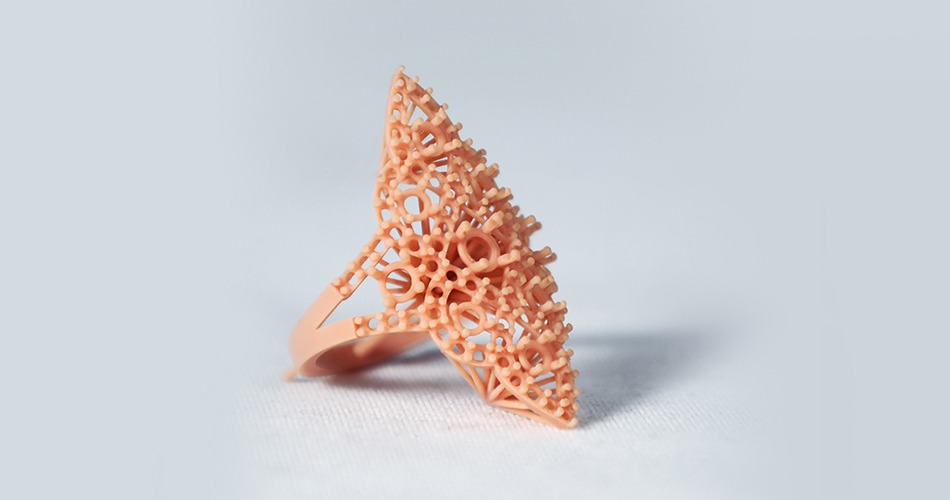

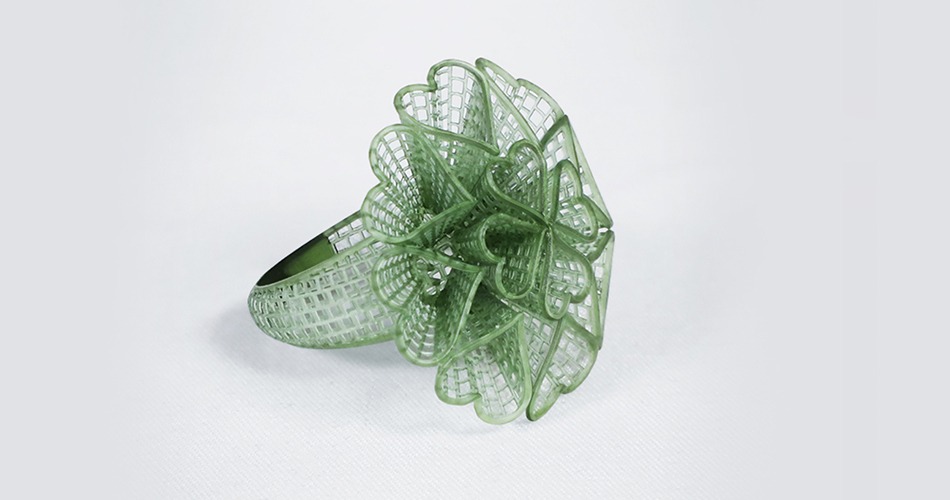

Application Areas

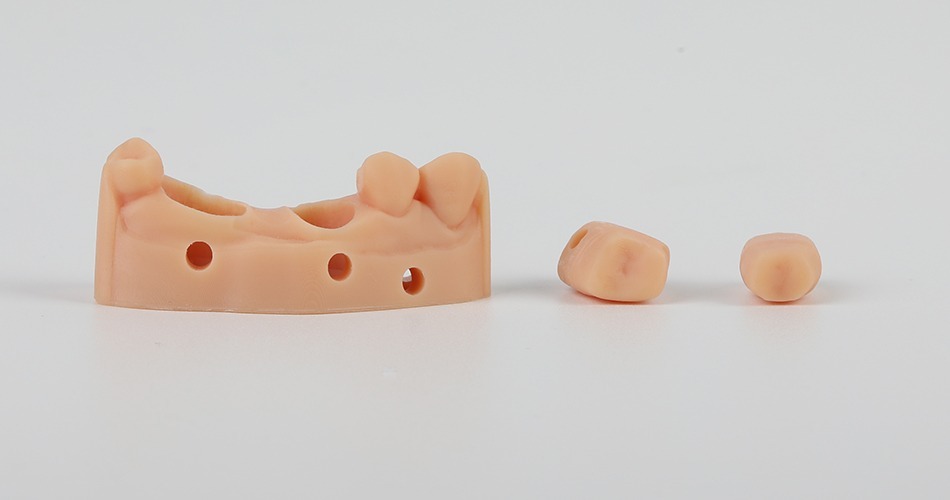

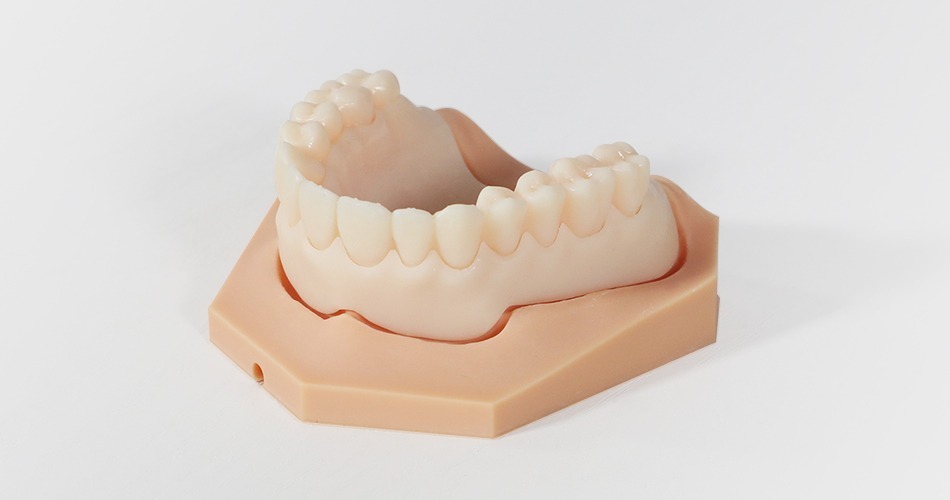

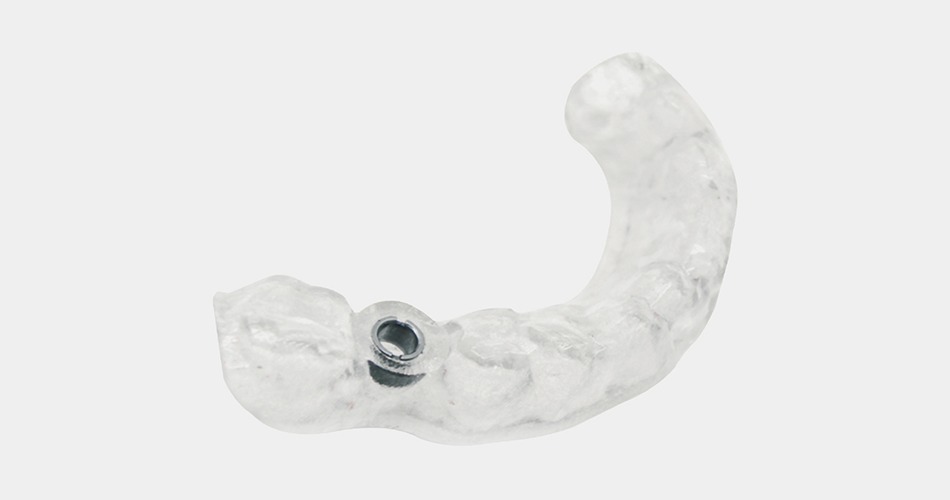

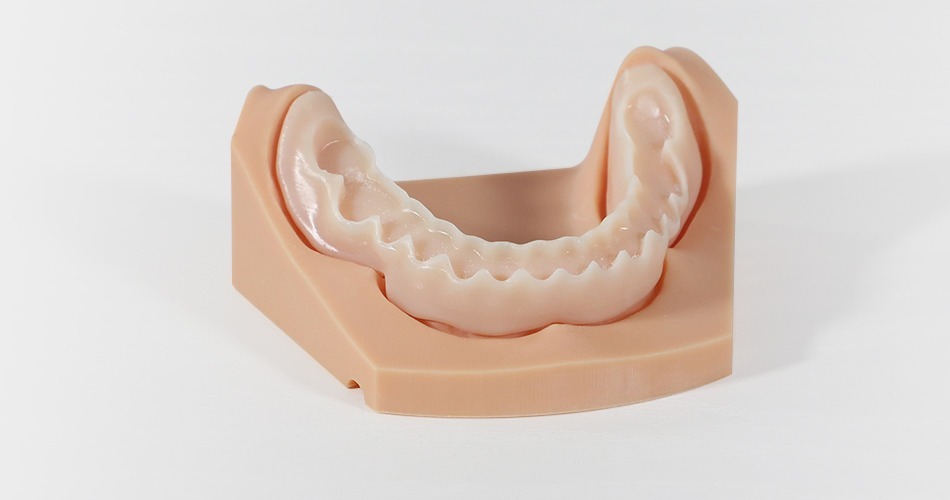

Biocompatible Dental Resin Materials

A portfolio of state-of-the-art dental resins to create products characterized by their robustness, minimal shrinkage, strong biocompatibility, and resistance to wear.

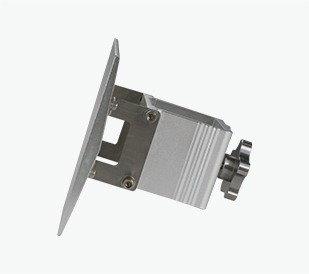

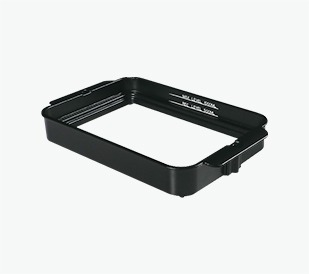

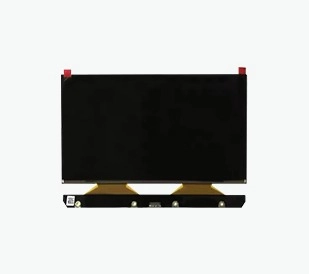

D Series Printer Accessories
