DJ89 Resin LCD 3D Printer

Product Features

01

8.9" 4K monochrome screen

3840*2400 pixels Instant curing with high light intensity
02

5.0" full color HD screen

Optimized interactive experience
03

Fast printing

Max. print speed: 30mm/h
04

Integrating Light Source

Light uniformity can reach 95%
05

Smaller release resistance

Multilayer composite materials FEP film
06

Stable Z-axis structure

Dual linear guide rail design + ball screw Dramatically improve positioning accuracy
07

Automatic air purification

Efficient purification system
08

Wireless transmission

Printing even offline

Select LCD integrated light source 3D printerDesigned for Dental Applications

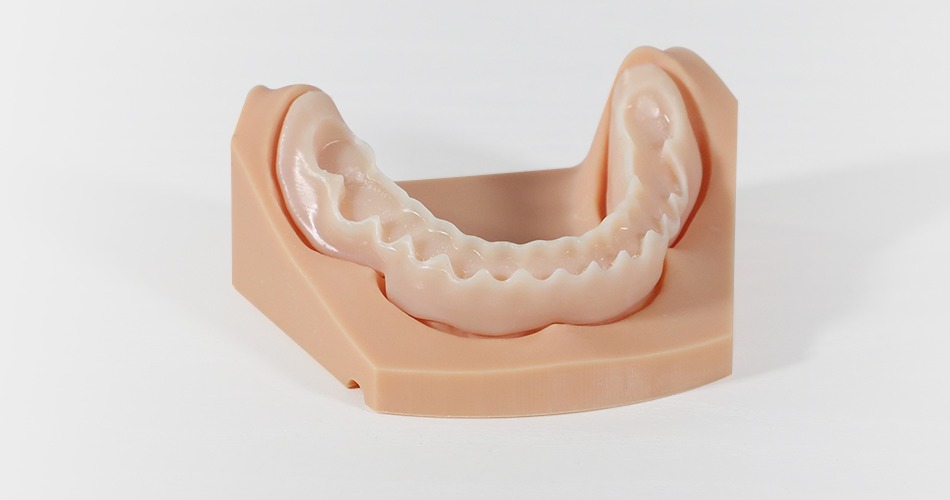

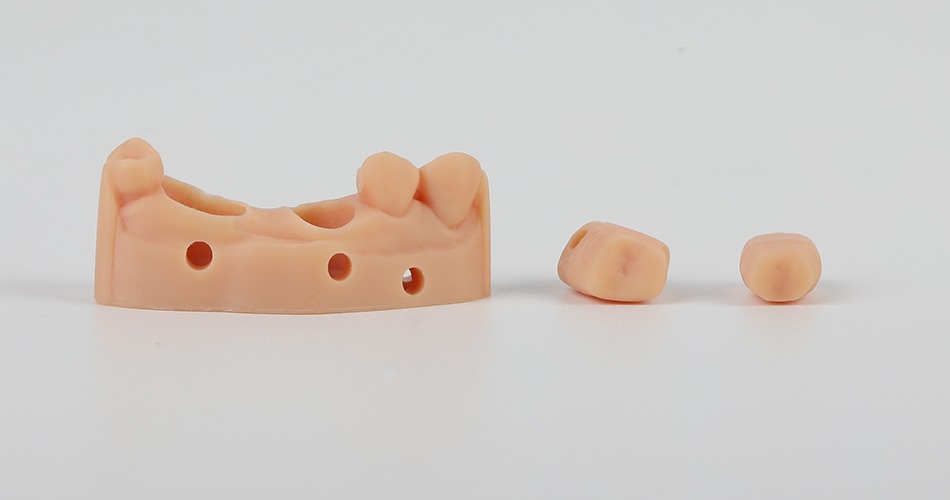

Ortho Model
Invisible aligners, trial models, and others dental and medical applications.

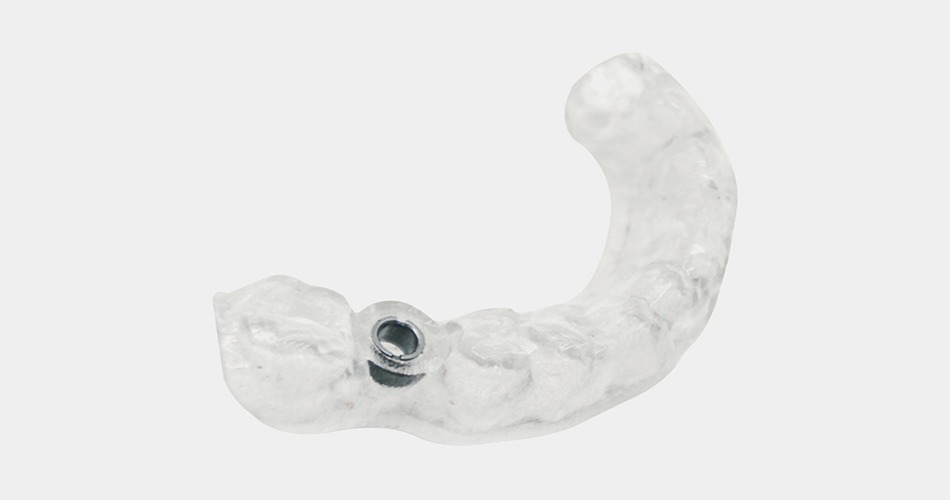

Surgical Guide
Dental implant surgical guides and medical applications.
Dental Casting
Castable dental crown & bridge, skeleton and others dental and medical casting applications.

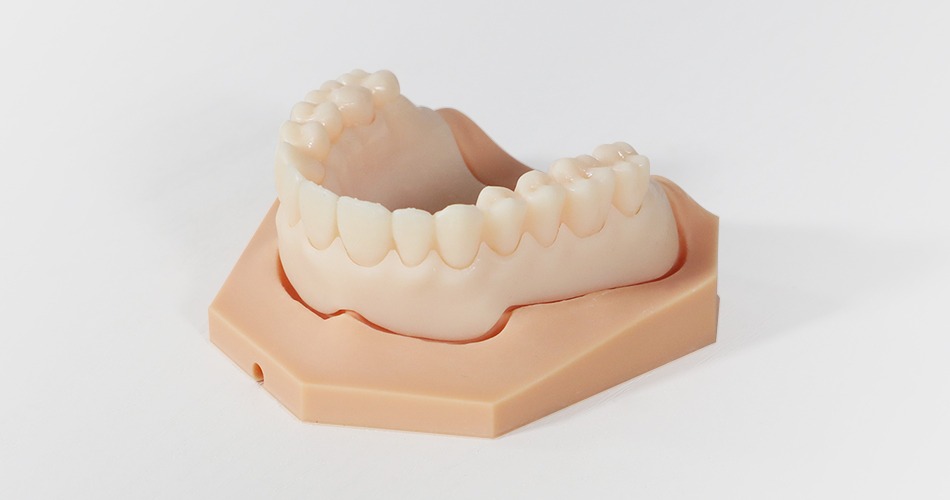

Temporary Restoration
Temporary crowns/stealth models, trial models in several dental and medical applications.

Integrating Light Source
The uniformity of the light source is over 95%,
which makes the accuracy at the same layer is identical

PioNext offers resins for a variety of application types
Senior chemical experts formulate special resin for dentistry,
and the color can be customized.

Independent research and development of slicing software
Insight into user experience, easy operation without threshold,
custom command parameters

Introduction to the printing processSimple operation, easy to get started

Step 1：Model file slice
Step 2：3D printing models
Step 3：Cleaning and curing

Dental LCD integral light source 3D printer applicationFocus on the dental industry, provide one-stop solutions for dental applications, including the R&D and production of resin materials and light-curing intelligent equipment in the entire industry chain, based on dental industry applications, and serve the world.

DJ89 Resin LCD Dental 3D Printer - Pionext

DJ89 LCD dental 3D printer，8.9-inch 4K black and white display，Print speed 60mm/h，3840*2400 high resolution，print size 192*120*100mm.

Product ParameterModel:DJ89
Support system:Windows7/8/10 X64，MAC，OS
Software: PioNext Box
File format:STL,OBJ,SLC
Input voltage:100-240V
Light source power:120W
Rated power:250W
Display:8.9-inch 4K ultra-high-definition monochrome screen
Resolution:3840*2400 pixels
Safety standards:UL/ FCC/ CE/ ROHS/ PSE
Printing size:192*120*100mm
XY axis accuracy:0.05mm
Print layer thickness: 0.025-0.1mm
Anti-aliasing:8 times anti-aliasing
Support consumable types:405nm wavelength photosensitive resin, compatible with third-party resins
Machine size:432*292*456mm
Weight:19 KG
Grossed weight:21 KG
Package size:535*390*540 mm
