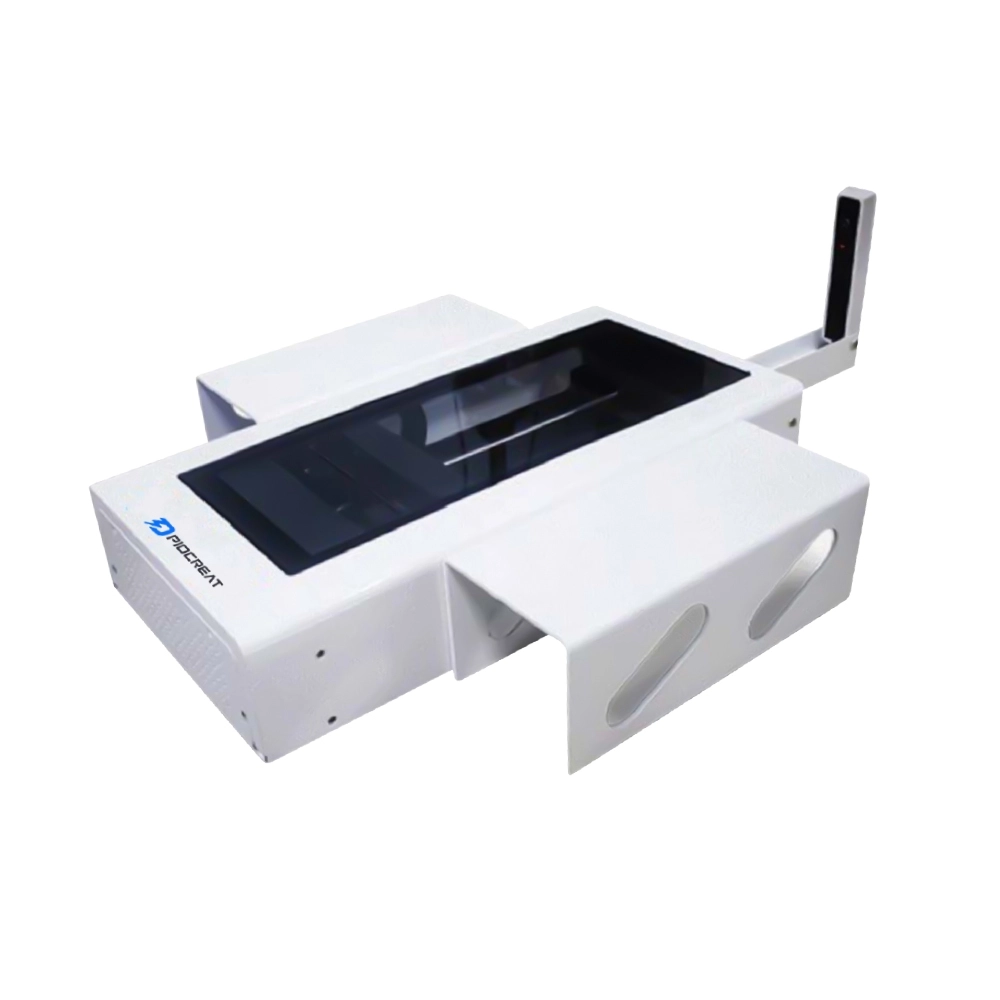

FS A001

3D Plantar Scanner

Revolutionizing foot health analysis with patented ultra-high-precision technology. This portable scanner ensures quick, accurate measurements (±0.5mm) in just 5 seconds, even for active children. Effortlessly generate detailed reports on arch, heel, foot length, and more with intelligent data insights.

Features

Specs

Key Features

Fast scanning speed

Avoid the problem of inaccurate foot movement measurement caused by children's hyperactivity.

High accuracy

Realize the judgment of index parameters such as arch, thumb,heel, footlength,foot width,and internal and external eight too quickly generate a test report.

intelligent data reporting

Export the plantar feature data, intuitively understand the footand gait health problems, and design through the design software.

Easy to carry

The flight case is packaged in one package,and it can be loaded andtaken away.

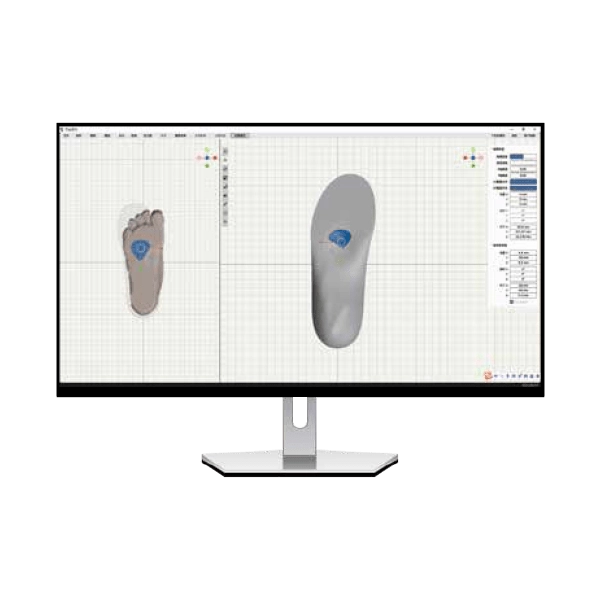

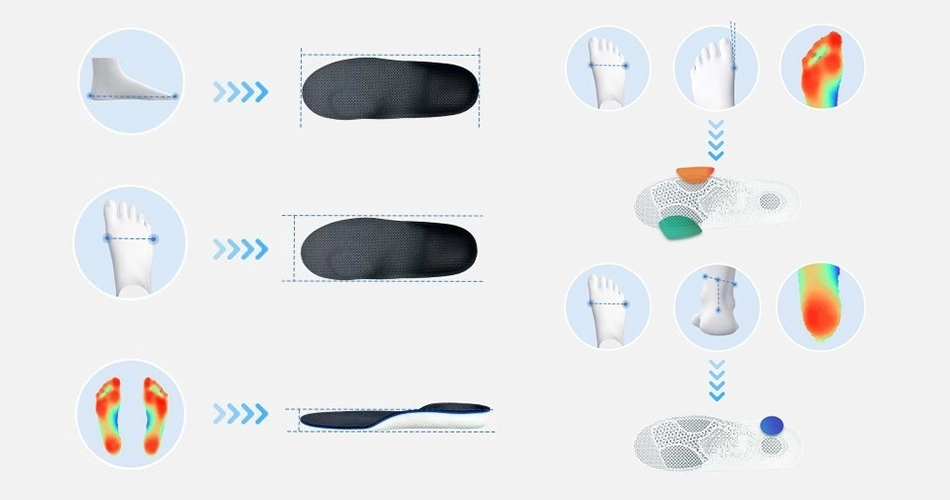

IDEAL-INTELLIGENT INSOLE DESIGN SYSTEM

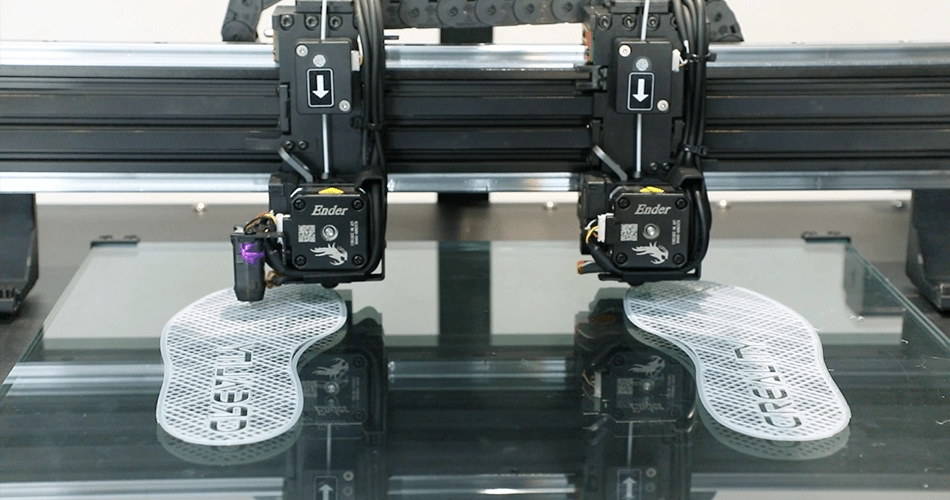

Based on 3D printing process research and development,fully in line with the characteristics of 3D printing technology.
One-click export can be printed, no need for secondary mold design.

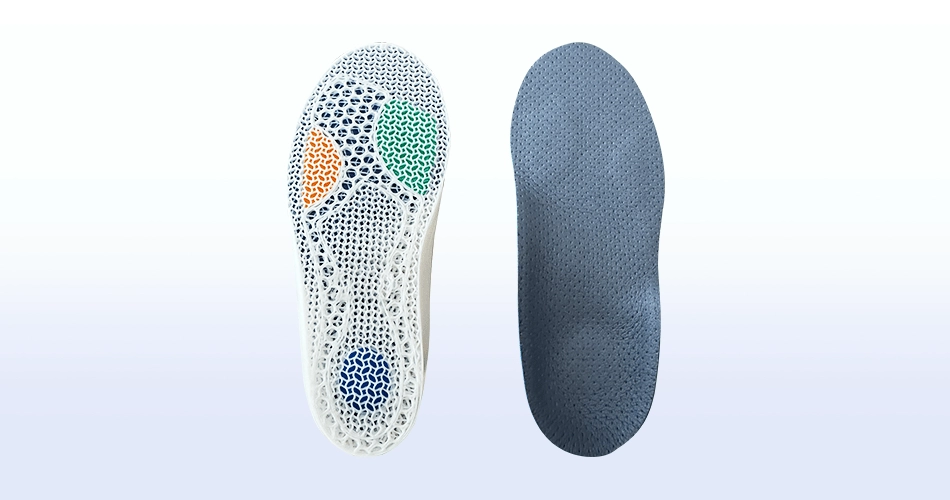

Multi-design modules can meet the design requirements of complex structural insoles.
Intelligent and simple operation, quickly complete a pair of insole design within 5 minutes.

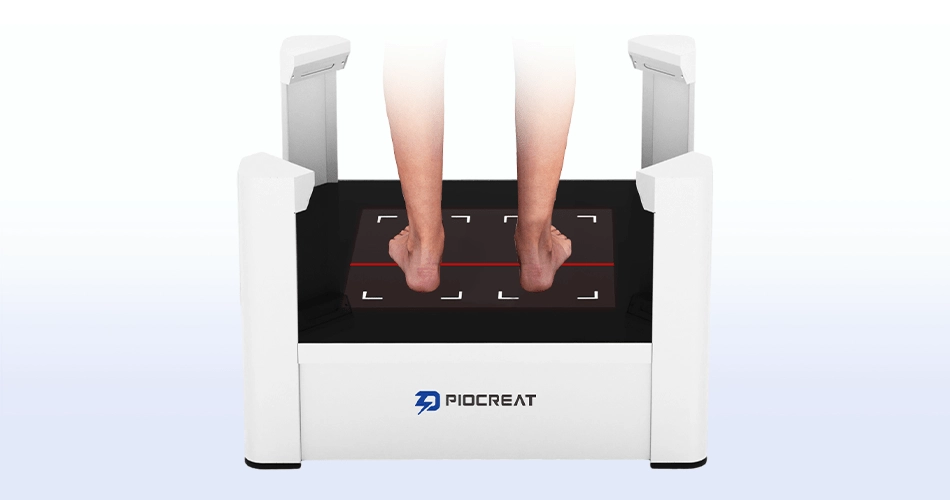

FS A001 3D Plantar Scanner
Scanning Method	Non-contact laser line scanning and white light texture scanning, harmless to the human body and eyes.
Scan range(mm)	350×170×50mm(x,y,z)
Scanning error(mm)	±0.5mm
Scan time(s)	<5-10s
Overall Dimensions	585×290×120mm
Output format	JPG、IDX
Operating system	Win7/10 64-bit
Warranty	12 months manufacturer's warranty
Technical Support:	Unlimited lifetime technical support
